9. Ghosting, flares and transmission

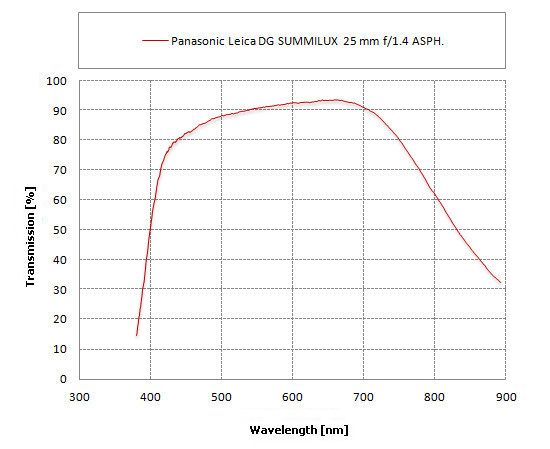

The Leica company’s anti-reflection coatings have always enjoyed a very good opinion so looking at the transmission graph of the tested lens you can try at assessing how much of the original Leica remains in the Panasonic.

Panasonic Leica DG Summilux 25 mm f/1.4 ASPH. - Ghosting, flares and transmission

The graph looks good because the level of 90% or higher is being kept in a quite wide wavelength range. We get here a slight inclination which means a bit more red than blue light gets to the detector but such an effect is, fortunately, not very pronounced.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Taking into account the fact that we deal here with seven groups of elements, the number of air-to-glass surfaces which should be coated is 14. It means that in the centre of the visible spectrum the efficiency of coatings on one such a surface amounts to 99.3-99.4%. A loss on the level of 0.6-0.7% is not something you can boast about nowadays because the best coatings reach the efficiency of 0.2-0.3%. We feel a bit unsatisfied here.

The Leica DG SUMMILUX 25 mm f/1.4 ASPH works against bright light quite well. Near the maximum relative aperture there are almost no problems whatsoever. On further stopping down more problems appear but only when the sun is straight inside the frame. If you put it in the corner or right outside it, you can see no significant flares.

Panasonic Leica DG Summilux 25 mm f/1.4 ASPH. - Ghosting, flares and transmission

Panasonic Leica DG Summilux 25 mm f/1.4 ASPH. - Ghosting, flares and transmission

Panasonic Leica DG Summilux 25 mm f/1.4 ASPH. - Ghosting, flares and transmission
