Lens review

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT

12 September 2011
Arkadiusz Olech

3. Build quality

Even several years ago fisheye type lenses designed for sensors smaller than full frame were few and far between on the market. Lately, however, a significant number of these instruments have been launched and a part of them is dedicated exactly for smaller matrixes. The Samyang 7.5 mm f/3.5 UMC Fish-eye MFT is a diagonal fisheye designed for a 4/3 sensor. The comparison of its parameters with those of other lenses of this type for smaller detectors is presented in the following chart.

Instead of consulting the chart you can simply have a glance at the photo below – it will give you an idea what a small sensor of the Micro 4/3 system and lack of a mirror can mean.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Both lenses, presented above, are fisheye lenses with almost the same parameters. What’s more, both have been produced by the same company. It is not difficult to notice that the Micro 4/3 lens is much smaller and physically lighter than its APS-C/DX equivalent. What’s more, the Samyang 7.5 mm f/3.5 UMC Fish-eye MFT can’t be called big even among other system lenses - it can be clearly noticed looking at the photo below. Dimensions-wise it is closer to the Panasonic 1.7/20 pancake than to a basic 14-42 mm kit lens.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality

The lens is small enough to fit slight Micro 4/3 system bodies perfectly well. Its compact dimensions, combined with a huge field of view, can even cause untypical problems. Before I got used to working with the tested Samyang plus the Olympus E-PL1 set in many photos I managed to capture…my own fingers (you can find them in some of sample shots). A person with bigger hands can have a problem of keeping them off the frame. The miniaturization of manual lenses is not always a good thing. In my case turning accidentally two rings at the same time was a quite common issue. Most often, while changing the aperture, I changed also the focus.

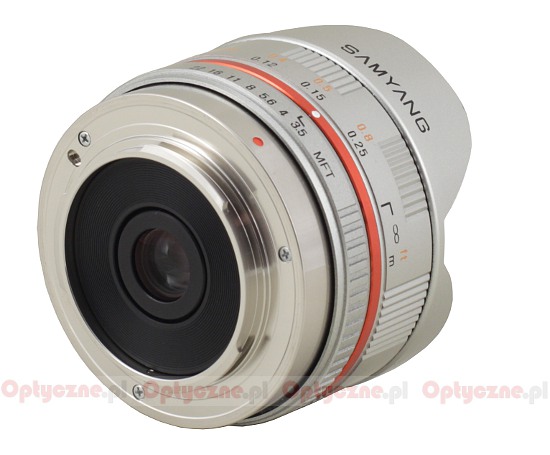

The lens starts with a metal mount without any contacts so the body doesn’t receive any info about aperture or focal length values. A rear element is 11 millimeters in diameter and it changes its position with the whole optical system. It is situated on the same level as the rear part of the casing when the focus is set at infinity; it hides several millimeters inside when we pass to the minimum focus distance.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality

Already on the casing we find first a silvery metal ring on which there is a red dot - its task is to facilitate attaching the lens to a body. Next, there is an aperture ring. It is ribbed and 8 mm wide, well-damped, allowing you value changes every 0.5 EV stop. Compared to the Samyang 3.5/8 for APS-C/DX sensors its work was improved because here we have f/4.0 at our disposal, which can be set right after f/3.5.

The next fragment of the casing is a narrow, metal ring, painted in red, which divides the aperture ring and a manual focus ring. That latter is 13 mm wide and ribbed as well. On it you can find a distance scale expressed in feet and meters. You would look for a depth of field scale in vain, though, despite the fact that it would indeed come in handy. Running through the whole distance scale takes a turn through 120 degrees. The ring is well-damped, though, and its work - smooth and even.

The lens ends with a permanently attached petal type lens hood, made of plastics. Inside, you can find a black part of the casing with the name and parameters of the lens. It surrounds a convex front element, 33 mm in diameter.

When it comes to the mechanics and the build quality, the Samyang 7.5 mm f/3.5 UMC Fish-eye MFT makes a better impression than the Samyang 8 mm f/3.5 Aspherical IF MC Fish-eye, designed for bigger detectors.

The inner construction consists of 9 elements positioned in 7 groups. The producer mentions one aspherical and three low-dispersion ED glass elements. Inside you can also find an aperture with six diaphragm blades which can be closed down to f/22.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality

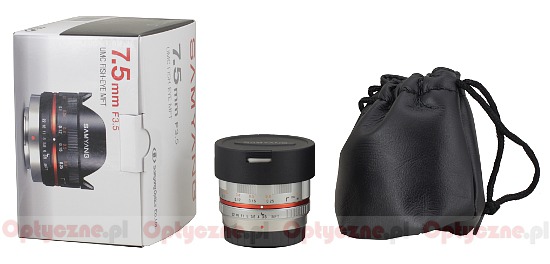

The buyer gets both caps and a soft pouch in the box.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality

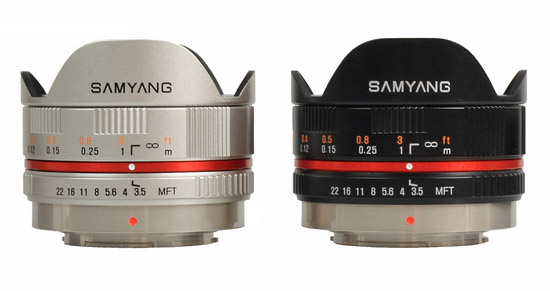

It is worth mentioning that two colour versions of this lens are available on the market – silver and black.

Samyang 7.5 mm f/3.5 UMC Fish-eye MFT - Build quality
