Lens review

Canon EF 135 mm f/2L USM

3 October 2011
Arkadiusz Olech

8. Vignetting

When we use the small APS-C sensor the vignetting is not a big problem – you can notice it in the photos below.

Canon EF 135 mm f/2L USM - Vignetting


At the maximum relative aperture the brightness loss in the frame corners gets to 22% (-0.72 EV) so is moderate. Implementing f/2.8 aperture value makes the problem disappear practically completely because then the vignetting decreases to an imperceptible level of 7% (-0.22 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Some difficulties appear when we start working on full frame. The thumbnails below show them perfectly well.

Canon EF 135 mm f/2L USM - Vignetting

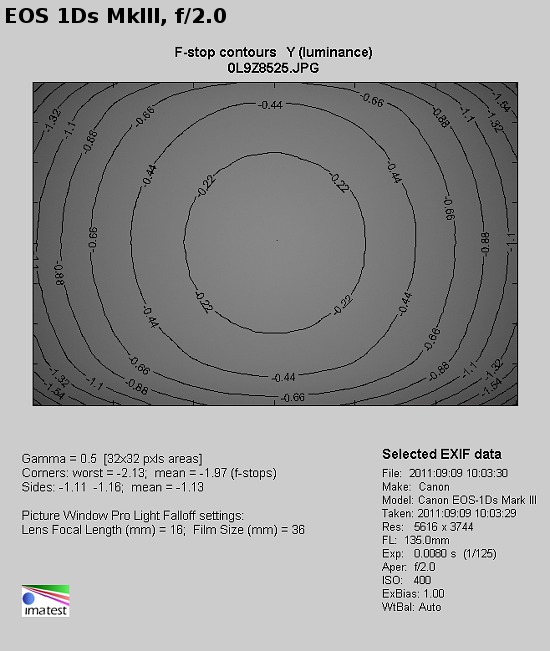

When you use the maximum relative aperture you have to make do with the vignetting on the level of as much as 49% (-1.97 EV). Fortunately on stopping down the aperture the results improve significantly. By f/2.8 the light fall-off in the frame corners is 26% (-0.88 EV) and by f/4.0 it decreases to 15% (-0.48 EV). The vignetting disappears completely only by f/5.6 where it reaches the level of 7% (-0.20 EV).

Canon EF 135 mm f/2L USM - Vignetting
