8. Vignetting

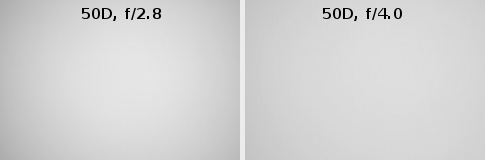

The thumbnails below show photos of a homogenously lit plane taken with the tested lens and the Canon 50D.

Canon EF 14 mm f/2.8L USM II - Vignetting


You can see there are no serious vignetting problems. At the maximum relative aperture that aberration reaches 22% (-0.70 EV) and by f/4.0 it decreases to an imperceptible level of 10%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

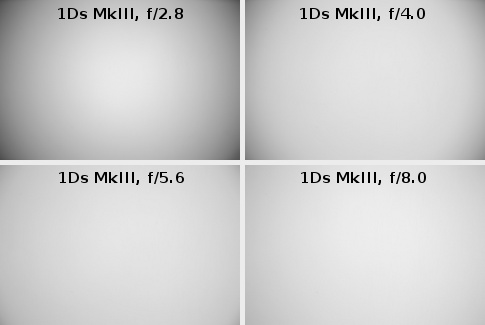

The situation looks completely different on full frame and you can assess it looking at thumbnails below.

Canon EF 14 mm f/2.8L USM II - Vignetting

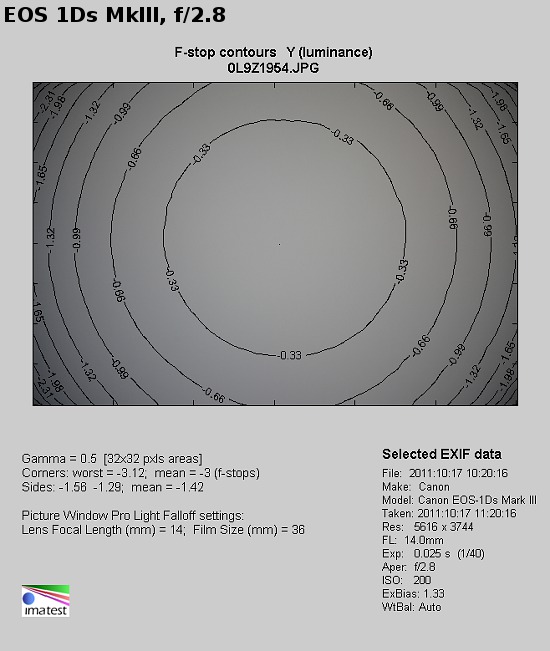

At the maximum relative aperture the vignetting reaches a huge level of 65% (-3.0 EV). On stopping down the aperture to f/4.0 we see this aberration decrease significantly but still it remains on a high level of 43% (-1.62 EV). The vignetting remains visible by f/5.6 and f/8.0, where it amounts to 28% and 20% respectively. Further stopping down doesn’t make the vignetting drop in a significant way because by f/11 and f/16 it still is about 19%.

Once again the expensive Canon 14L is worse than the cheap Samyang which, at the maximum relative aperture, showed the vignetting of 55% and on stopping down by 1 EV – that of 39%. The Canon should be seriously reprimanded once again.

Canon EF 14 mm f/2.8L USM II - Vignetting
