Lens review

Sigma A 18-35 mm f/1.8 DC HSM

18 June 2013
Arkadiusz Olech

8. Vignetting

Let’s check how the tested lens fares while working with the sensor of the Canon 50D.

Sigma A 18-35 mm f/1.8 DC HSM  - Vignetting

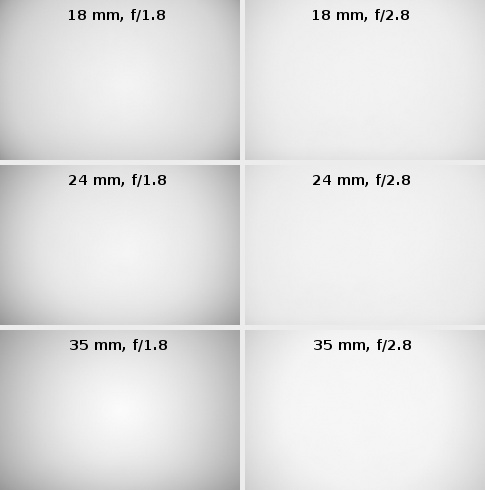

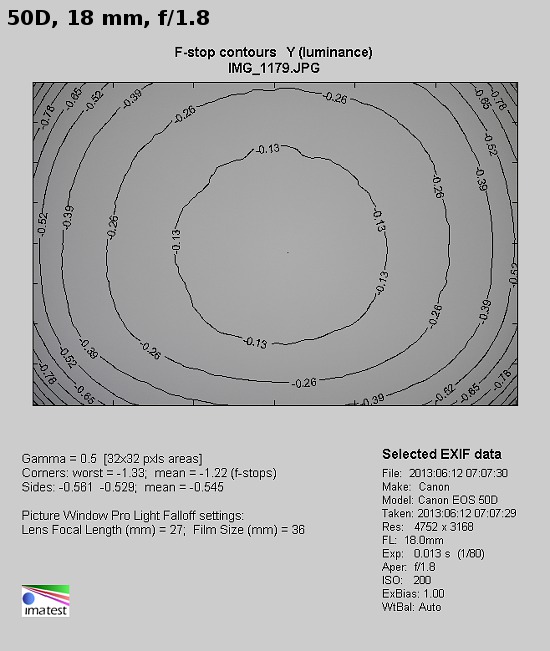

At the shortest focal length and the maximum relative aperture the brightness loss in frame corners amounts to 34% (-1.22 EV). On stopping down to f/2.0 the vignetting decreases to 28% (-0.95 EV). Stopping down by another 1 EV stop lowers it to 14% (-0.43 EV). By f/4.0 that aberration becomes invisible (8%).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

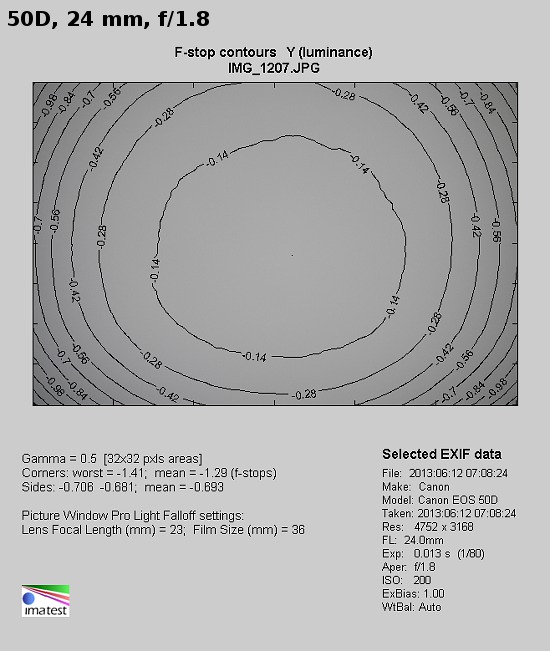

Very similar situation can be observed at 24 mm. Here at the maximum relative aperture you must take into account the loss of light of 36% in the corners (-1.29 EV). On slight stopping down to f/2.0 the vignetting decreases to 29% (-0.98 EV). That aberration becomes marginal by f/2.8, amounting there to only 11% (-0.32 EV). It disappears practically completely by f/4.0 (6%).

Also at the maximum focal length we deal with similar results. With the aperture fully open you have to accept the light fall-off of 37% in the corners (-1.33 EV). By f/2.0 that value amounts to 31% (-1.06 EV) and by f/2.8 – only 16% (-0.50 EV). The vignetting disappears by f/4.0 where it reaches just 10% (-0.29 EV).

The results of 34-37% the Sigma showed on the maximum relative aperture cannot be called low. On the other hand, though, compared to the potential rivals, they still look impressive. Let’s remind here that the 1.8/35 lenses produced by Nikon and Sony for smaller sensors, had results of 37-44% so they performed similarly or a bit worse than the Sigma.

The Sigma presents itself even better if compared to full frame 24-70 or 28-70 mm f/2.8 lenses. They, at their much slower maximum relative apertures, can lose in the corners from over 40 to even over 60% of light!

The Sigma A 18-35 mm f/1.8 DC HSM also shouldn’t be inhibited when compared to 17-50 mm f/2.8 lenses. Those constructions, being over 1 EV slower and designed for the same APS-C/DX sensor, can have the vignetting on a level of 30-40% so exactly the same as the tested, much faster Sigma.
