LensTip.com

Lens review

Carl Zeiss Touit 12 mm f/2.8

30 August 2013
Arkadiusz Olech

6. Distortion

In the case of the Fujifilm X the distortion is always corrected by software so the JPEG files are free of it most of the time. Such a situation you see while testing the Zeiss 2.8/12 – the distortion level, measured in JPEGs, amounted to just 0.09% so it remains imperceptible.

If you look at RAW files, developed by independent software (like e.g. dcraw) the results are quite different. In that case you can notice distinct barrel distortion which value we measured as – 2.54%. Such a level is not especially bothersome but it is also nothing to boast of, especially for a fixed-focus lens. Let’s remind here that 12-24 mm zoom lenses such as the Nikkor or the Tokina, at 12 mm could show the distortion ranging from –2.5 to-2.0% so slightly lower. I suppose we don’t have to add that the correction of that aberration in a zoom lens is more difficult than in a ‘prime’.

The approach of Zeiss when it comes to the fields of view is interesting, though. Usually, when you deal with a system that gives up on distortion correction, the image before the correction features a wider field of view than declared so, after the cropping, the resulting field of view remains in accordance with the focal length of the lens, stated on the casing. In the case of the Zeiss the situation is different. The field of view of the uncorrected RAW file amounts to 99.23 degrees (with the measurement error on a level of 0.05 of a degree) so it is even a tad narrower than 99.5 degrees the 12 mm focal length should provide on the 1.5x APS-C/DX sensor. The field of view of the distortion-corrected JPEG file is just 97.03 degrees (with the error on a level of 0.05 of a degree) so over 2 degrees smaller than declared. It is a flaw to some extend but, on the other hand, an optics producer such as Zeiss shouldn’t be demanded to state some focal lengths equivalents instead of a real focal length, which is, after all, closely connected with the optical construction and doesn’t depend on the size of the detector.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

JPEG
Carl Zeiss Touit 12 mm f/2.8 - Distortion

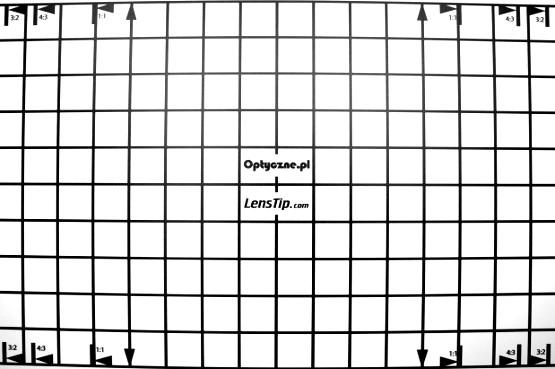

RAW
Carl Zeiss Touit 12 mm f/2.8 - Distortion
