LensTip.com

Lens review

Nikon Nikkor AF-S 16-35 mm f/4G ED VR

7 January 2014
Arkadiusz Olech

8. Vignetting

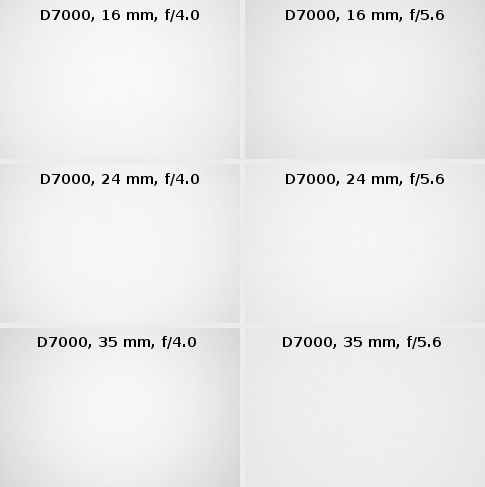

Getting a bit ahead of our story we can say that finally we found a category in which the tested lens can be praised. If you work with the small DX sensor there is practically no vignetting which can be clearly visible in the thumbnails, presented below.

Nikon Nikkor AF-S 16-35 mm f/4G ED VR - Vignetting


At the difficult combination of 16 mm and f/4.0 the vignetting is almost imperceptible because it amounts to just 10% (-0.30 EV). What’s interesting on stopping down that aberration’s value doesn’t change – at 24 mm focal length and at the maximum relative aperture you get the same result, 10% (-0.29 EV). Only closing the aperture to f/5.6 can make the vignetting descend lower, to 7% (-0.21 EV). You have the biggest chance to notice the vignetting at the combination of the maximum focal length and the maximum relative aperture where it amounts to 13% (-0.41 EV) so it is still negligible. By f/5.6 it disappears almost completely, being just 5% (-0.14 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

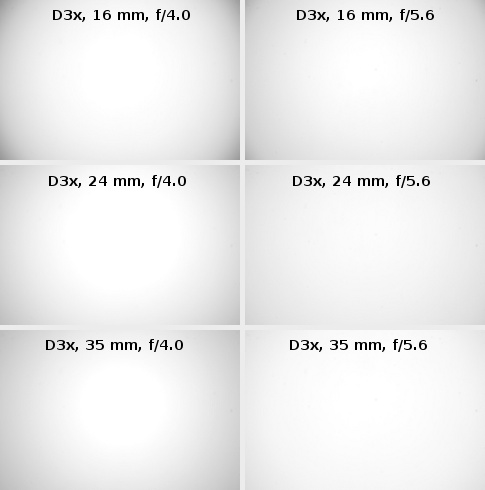

Let’s check how the situation looks on full frame.

Nikon Nikkor AF-S 16-35 mm f/4G ED VR - Vignetting

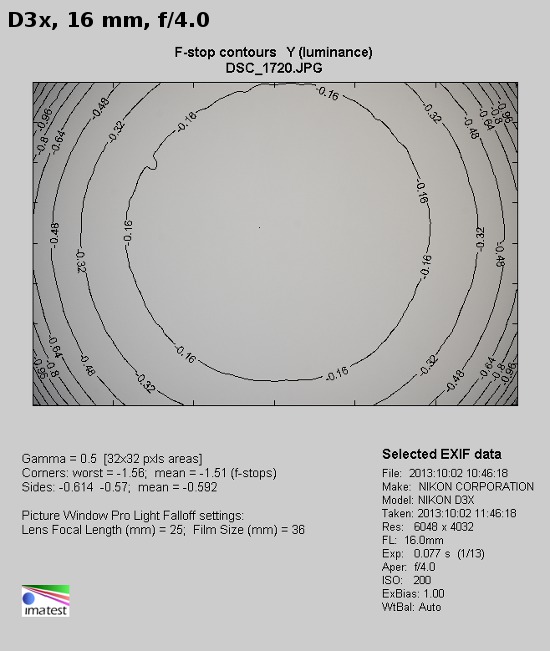

The vignetting is noticeably higher here but, taking the parameters of the lens and the performance of its competition into account, we shouldn’t complain too much. In fact even here you can praise the lens a little bit. At 16 mm and by f/4.0 the vignetting gets to 41% (−1.51 EV). It is a lot but still several percent less than in the case of the Tokina 17-35 mm f/4.0 with a narrower angle of view. On stopping down to f/5.6 you can decrease the vignetting level to 31% (-1.05 EV). By f/8.0 that aberration amounts to 25% (-0.82 EV) and by f/11 it is 24% (-0.79 EV).

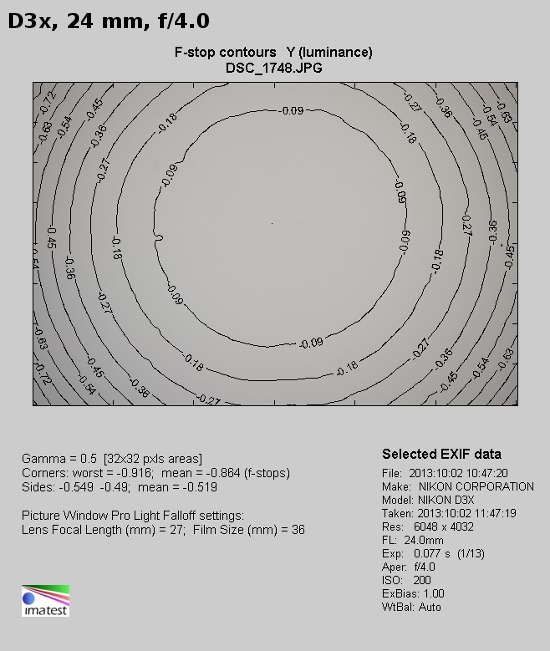

In the middle of the focal range the situation gets noticeably better. At the maximum relative aperture the brightness loss in the frame corners reaches 26% (-0.86 EV) and it decreases to 16% (-0.50 EV) after passing to f/5.6. Further stopping down doesn’t bring any significant change because by f/8.0 and f/11 the vignetting amounts to about 15%.

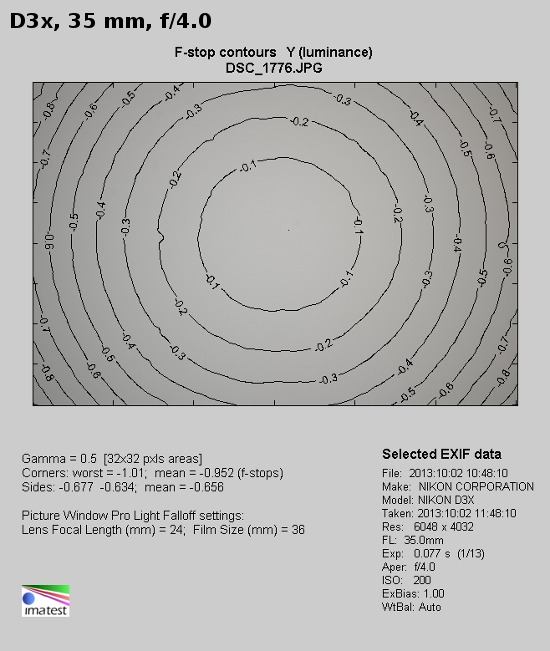

At the maximum focal length and by f/4.0 the vignetting is moderate, reaching 28% (-0.95 EV). That aberration disappears almost completely by f/5.6 where it is just 12% (-0.38 EV). By f/8.0 the problem becomes marginal (9%).

Nikon Nikkor AF-S 16-35 mm f/4G ED VR - Vignetting

Nikon Nikkor AF-S 16-35 mm f/4G ED VR - Vignetting

Nikon Nikkor AF-S 16-35 mm f/4G ED VR - Vignetting
