LensTip.com

Lens review

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO

4 June 2014
Arkadiusz Olech

8. Vignetting

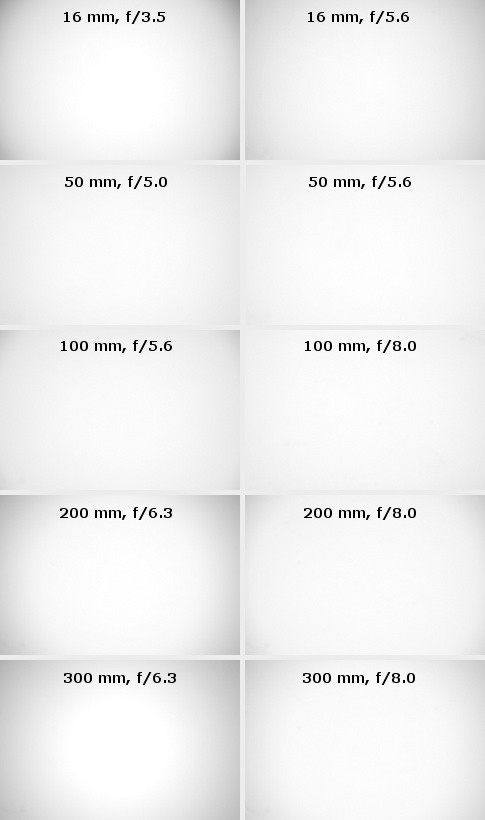

If you try to join up difficult parameters and sensible dimensions of a lens you get a perfect recipe for vignetting problems. The thumbnails, shown below, allow us to assess the performance of the Tamron 16-300 mm.

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting

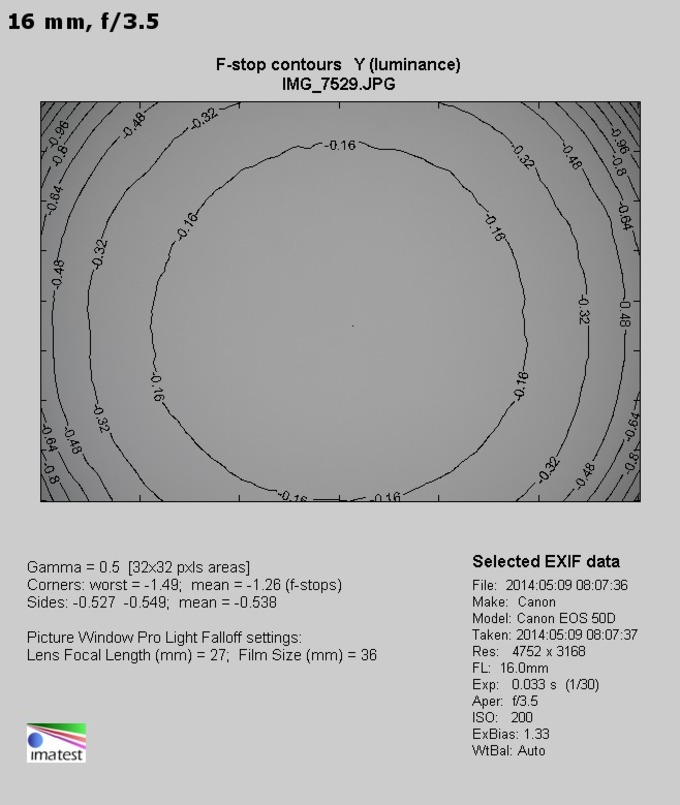

At the shortest focal length and the maximum relative aperture the vignetting is 35% (-1.26 EV). It is a distinct level but still nothing tragic. On slight stopping down to f/4.0 you see this aberration reduced to 30% (−1.03 EV); by f/5.6 it reaches 21% (-0.70 EV) and by f/8.0 it is about 20% (−0.68 EV). Then it stops reacting to stopping down at all.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

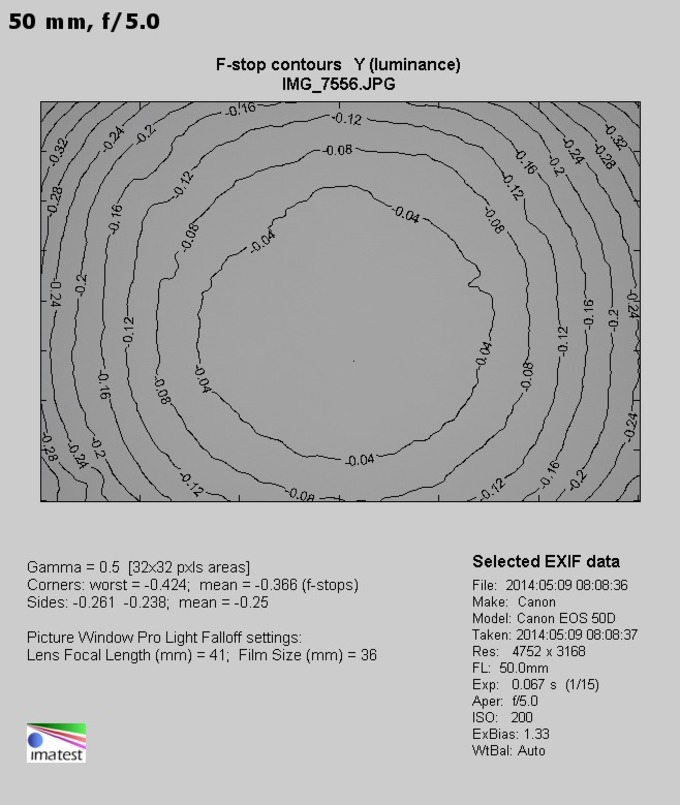

At 50 mm focal length you get a local vignetting minimum as that aberration would be difficult to spot there, even with the lens wide open, and small wonder – it reaches just 12% (-0.37 EV) and, on stopping down to f/5.6, it disappears practically completely, amounting to just 9% (-0.28 EV).

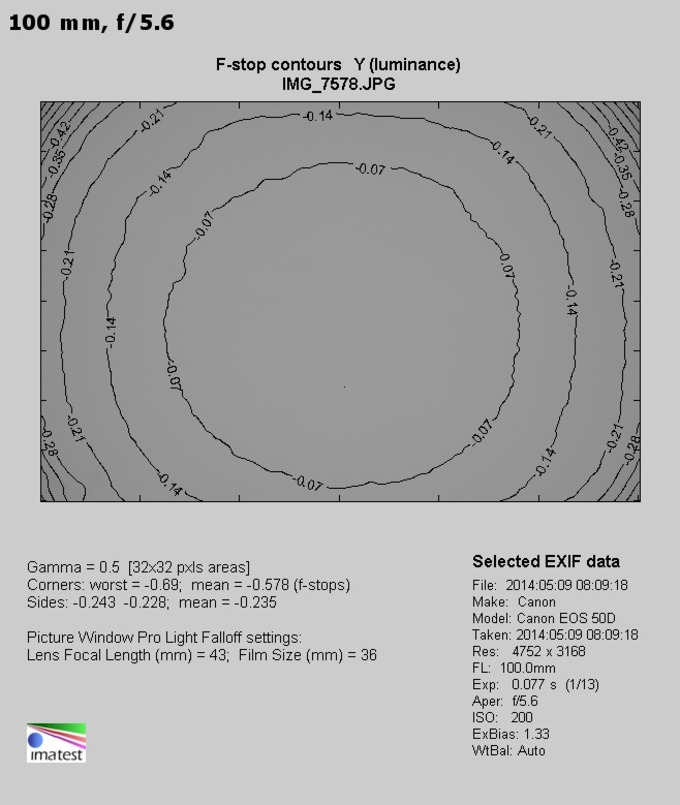

The 100 mm focal length is not much worse. By f/5.6 the brightness loss in the corners amounts to a slight level of 18% (-0.58 EV). The problem disappears almost completely already by f/8.0, where its value we determined as 8% (-0.25 EV).

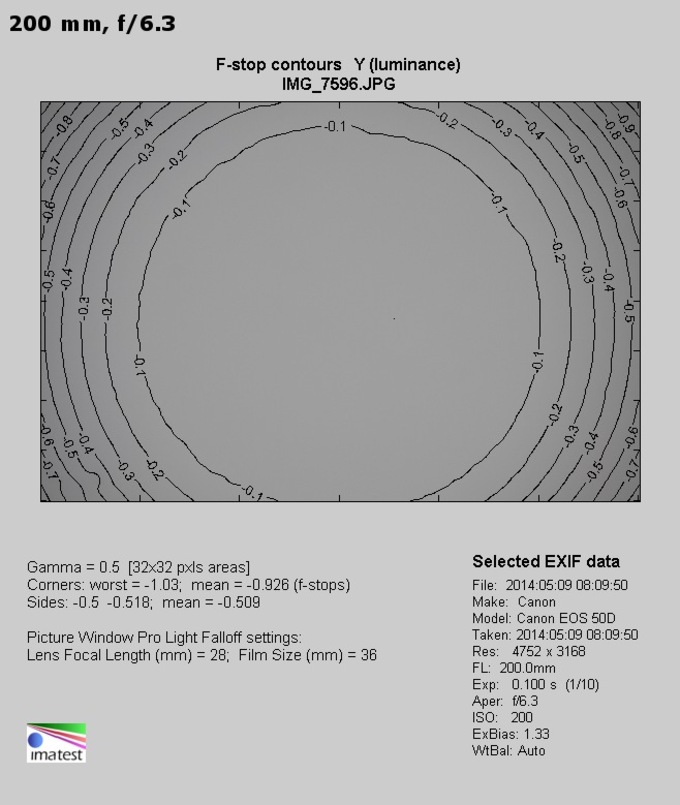

A bit more problems you see at longer focal lengths but still you can call their vignetting level moderate. At 200 mm and by f/6.3 it amounts to 27% (-0.93 EV) and it decreases to 16% (-051 EV) by f/8.0. By f/11 that aberration stops being noticeable as it is just 9% (−0.27 EV). At the maximum focal length the values we got were not much higher. By f/6.3 the vignetting was 30% (−1.03 EV), and by f/8.0 it reached 18% (-0.57 EV). The problem stopped being bothersome by f/11 and f/16 where the vignetting level was respectively 10% (−0.30 EV) and 6% (−0.18 EV).

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting

Tamron 16-300 mm f/3.5-6.3 Di II VC PZD MACRO - Vignetting
