8. Vignetting

First let’s check the vignetting performance on the smaller sensor of the Canon 50D - appropriate thumbnails are shown below.

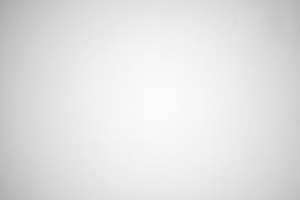

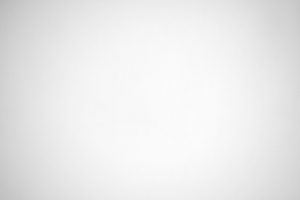

Canon 50D, f/2.5 Canon 50D, f/2.8
Irix 15 mm f/2.4 Blackstone - Vignetting Irix 15 mm f/2.4 Blackstone - Vignetting


The vignetting is noticeable only in the area closest to the maximum relative aperture. By f/2.5 it is 28% (−0.95 EV), and by f/2.8 it reaches 22% (−0.73 EV). Stopping down the aperture to f/4.0 and f/5.6 eliminates the problem practically completely because the results we got amounted to, respectively, 12% (−0.36 EV) and  9% (−0.26 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes after passing to full frame.

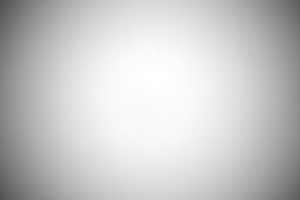

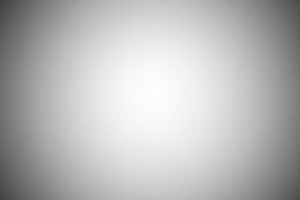

Canon 5D III, f/2.5 Canon 5D III, f/2.8
Irix 15 mm f/2.4 Blackstone - Vignetting Irix 15 mm f/2.4 Blackstone - Vignetting

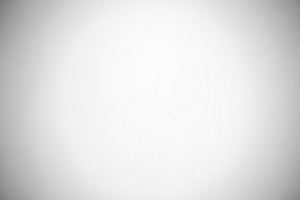

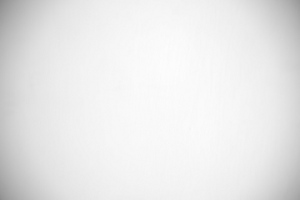

Canon 5D III, f/4.0 Canon 5D III, f/5.6
Irix 15 mm f/2.4 Blackstone - Vignetting Irix 15 mm f/2.4 Blackstone - Vignetting


Unfortunately the small front element combined with good aperture fastness for this angle of view makes itself felt. As a result you get one of the highest vignetting values we’ve seen in our tests so far. At the maximum relative aperture it amounts to as much as 72% (−3.64 EV) and deserves to be called monstrous. The f/2.8 aperture is equally weak, with a result of 66% (−3.10 EV). Even by f/4.0 you still deal with a high level of that aberration as it gets to 48% (−1.87 EV).

Also by f/5.6 and f/8.0 you won’t have any problems with noticing the vignetting in photos - the results we got are, respectively, 40% (−1.46 EV) and 36% (−1.28 EV). You can approach the moderate levels by applying f/11 and f/16, with the brightness loss being 30% (−1.04 EV) and 27% (−0.93 EV) respectively. As you see even on very significant stopping down you cannot get rid of that aberration completely.
