5. Chromatic and spherical aberration

Chromatic aberration

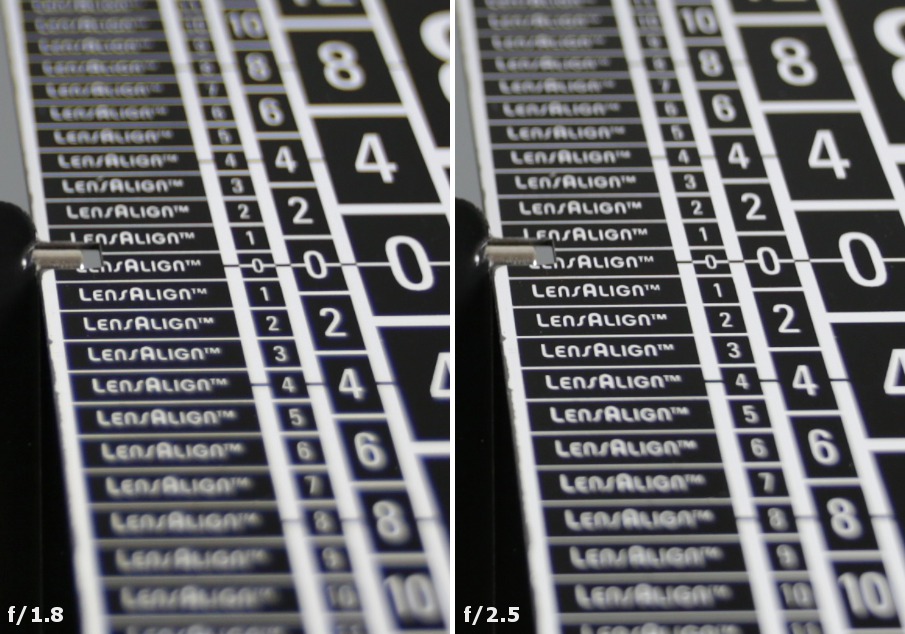

As many as seven low dispersion elements in the optical system of the tested Sigma suggest the producers took proper care of the longitudinal chromatic aberration correction. The photos presented below confirm it – you won’t notice any huge problems. A slight colouring of out-of-focus images remains noticeable, though, so that aberration is not corrected in a perfect way.

Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration

When it comes to lateral chromatic aberration it was a huge challenge, joining an angle of view of significantly more than 100 degrees and f/1.8 aperture. We were very curious how the Sigma would perform.

Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The graph above proves that the producers once again should be praised. The aberration increases slightly from about 0.04% at the maximum relative aperture to 0.06% on more significant stopping down. Both values allow you to call the level low. The Irix 2.4/15 fared similarly here but its task was easier because of less extreme parameters. The Samyang 2.8/14 was a bit weaker in this category - its maximum results got to 0.13%. Once again the Canon EF 14 mm f/2.8L USM II performed the worst as, near the maximum relative aperture its lateral aberration level was over 0.17%.

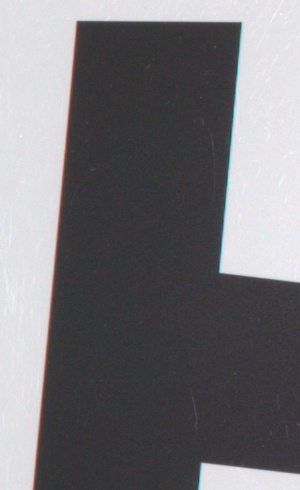

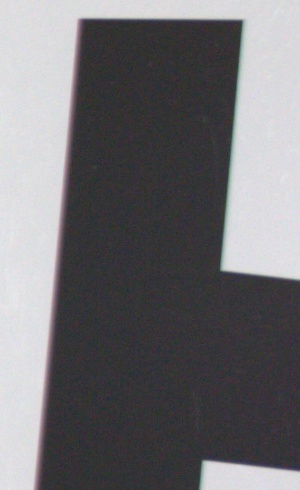

Canon 5D III, f/1.8 Canon 5D III, f/11.0
Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration


Spherical aberration

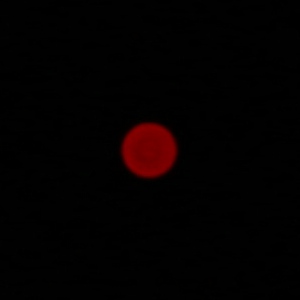

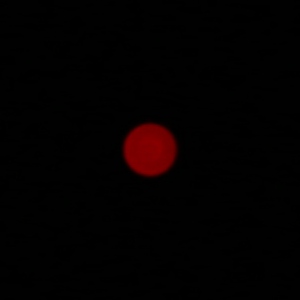

First photos of this chapter don’t show any ‘focus shift’ effect but it doesn’t mean the spherical aberration is corrected in a perfect way. The appearance of out-of-focus light circles, created in front of and behind the focus, proves its existence but not necessarily on a high level. The centre of the circle before the focus is noticeably darker than the centre of the circle after the focus – it means the spherical aberration wasn’t corrected perfectly well.

Canon 5D III, f/1.8, in front of Canon 5D III, f/1.8, behind
Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration Sigma A 14 mm f/1.8 DG HSM - Chromatic and spherical aberration
