6. Distortion

Super telephoto zoom lenses with high zoom ratio often are plagued by distinct pincushion distortion. In the case of the Nikkor 200-500 mm VR the zoom ratio is just 2.5x and the angles of view are narrow so we didn’t expect any serious problems in this category.

Indeed, there are no visible problems on the smaller sensor of the Nikon D500. In that case the pincushion distortion is very small and difficult to notice in real life photos. At 200, 300, 400 and 500 m we reached the following results: +0.50%, +0.53%, +0.49% and +0.37%.

The problem increases after passing to full frame but still it remains in the lower levels of moderate values because the deformations exceed 1% in most of cases just slightly. The appropriate results are as follows: +1.07%, +1.27%, +1.16% and +0.92%


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

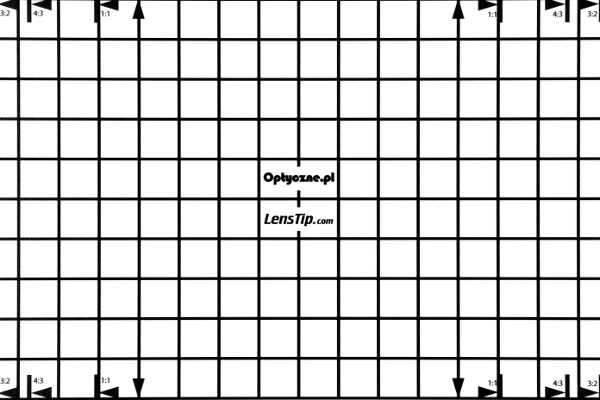

Nikon D500, 200 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

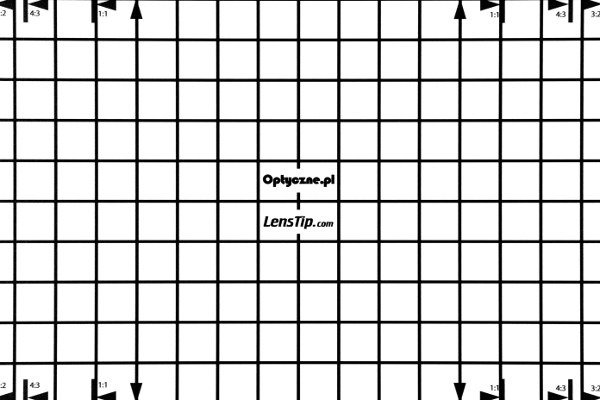

Nikon D500, 300 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

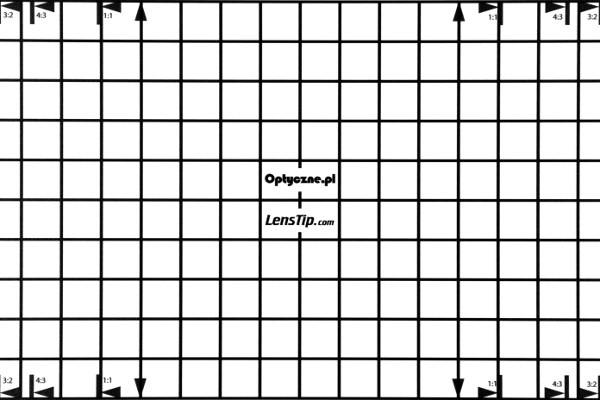

Nikon D500, 400 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

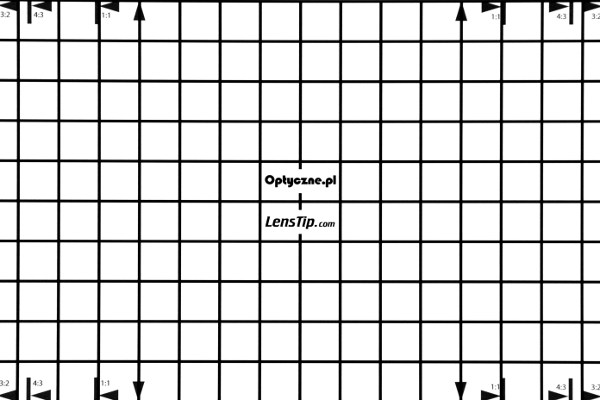

Nikon D500, 500 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

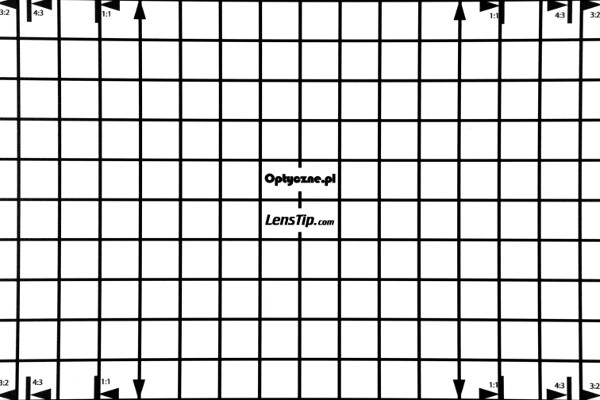

Nikon D3x, 200 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

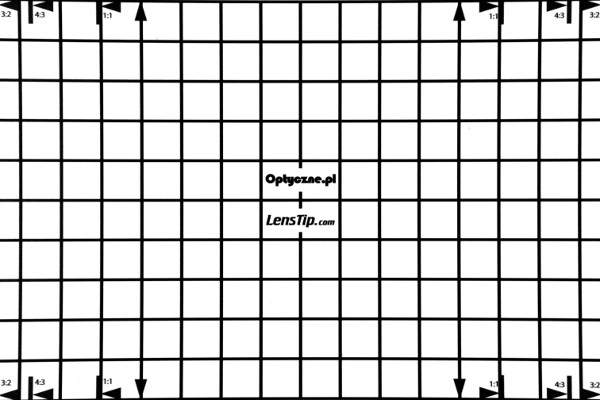

Nikon D3x, 300 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

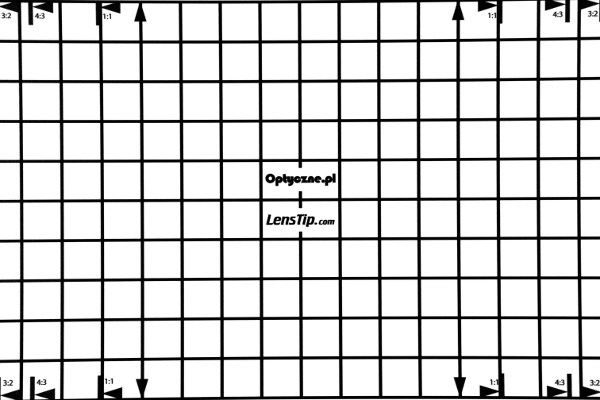

Nikon D3x, 400 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion

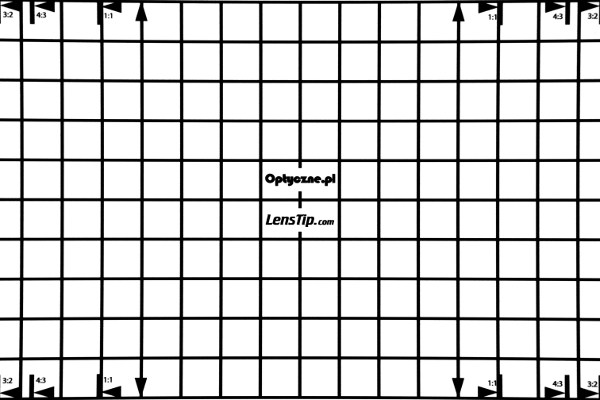

Nikon D3x, 500 mm
Nikon Nikkor AF-S 200–500 mm f/5.6E ED VR - Distortion
