LensTip.com

Lens review

Samyang 35 mm f/1.2 ED AS UMC CS

26 November 2018
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below that allow us to assess the vignetting of the tested lens for JPEG files from the Fujifilm X-T2 camera.

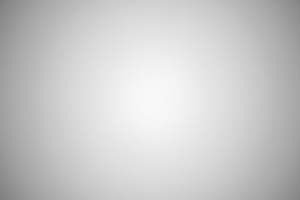

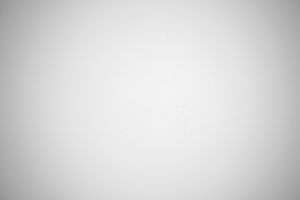

Fujifilm X-T2, f/1.2 Fujifilm X-T2, f/1.4
Samyang 35 mm f/1.2 ED AS UMC CS - Vignetting Samyang 35 mm f/1.2 ED AS UMC CS - Vignetting

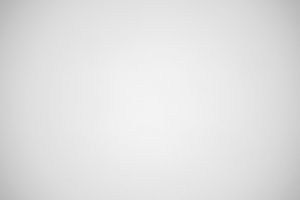

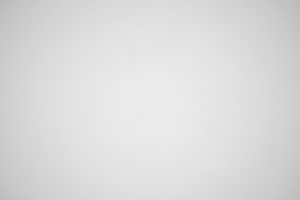

Fujifilm X-T2, f/2.0 Fujifilm X-T2, f/2.8
Samyang 35 mm f/1.2 ED AS UMC CS - Vignetting Samyang 35 mm f/1.2 ED AS UMC CS - Vignetting


In this category the moderate dimensions of the Samyang make themselves felt a bit. At the maximum relative aperture the brightness loss in the frame corners amounts to as much as 47% (−1.86 EV) – it’s a lot for a lens designed for a sensor smaller than full frame. On the other hand we could find several fast standard lenses with vignetting levels noticeably higher. After applying f/1.4 the vignetting decreases to a still distinct value of 37% (−1.51 EV). By f/2.0 and f/2.8 you deal with moderate levels of that aberration, 24% (−0.81 EV) and 21% (−0.67 EV) respectively. Further stopping down doesn’t have any measureable influence over vignetting.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The lens doesn’t have any contacts so it is not recognizable by a camera body and the vignetting correction is switched off. The performance on RAW files is very similar to the situation you observe on JPEG files, described above.

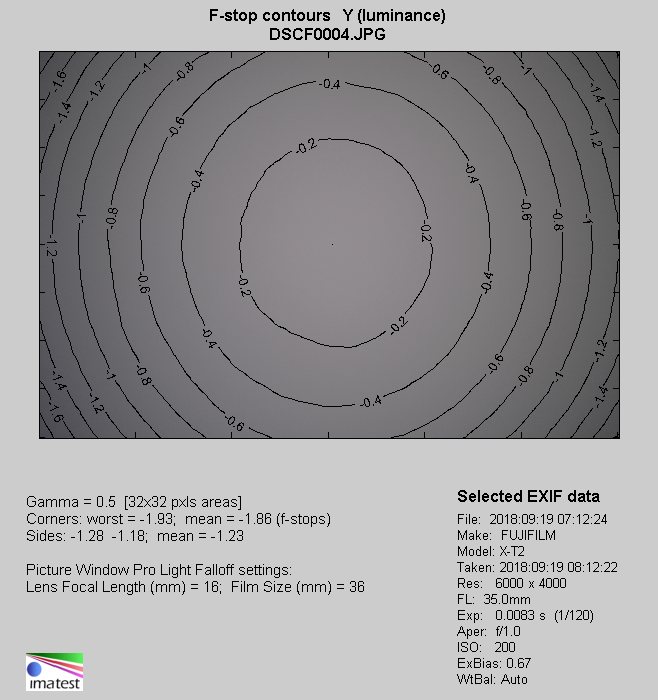

Fujifilm X-T2, JPEG, f/1.2
Samyang 35 mm f/1.2 ED AS UMC CS - Vignetting
