5. Chromatic and spherical aberration

Chromatic aberration

Lenses with such a bright aperture can have a lot of problems with correction of longitudinal chromatic aberration but, fortunately, the Samyang 1.2/35 doesn’t have a slip-up in this category. A slight tint of out-of-focus images is noticeable; still, taking into account the parameters of the instrument, it is completely acceptable.

Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration


The graph below shows how the Samyang 1.2/35 performs when it comes to the lateral chromatic aberration.

Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


It is clear that aberration is corrected in a perfect way. In the f/2.8 – f/16 range you deal with a completely imperceptible level, about 0.02%. The highest value you can observe at the maximum relative aperture but even there it is just a bit over 0.04% so on a borderline between very low and low levels.

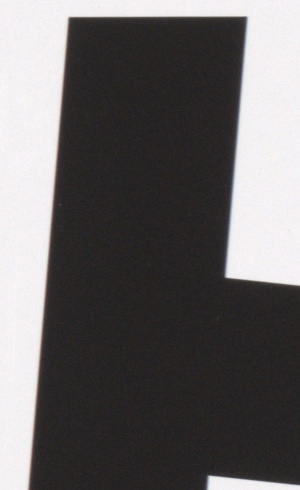

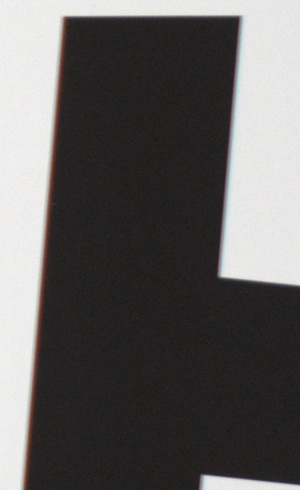

Fujifilm X-T2, RAW, f/1.2 Fujifilm X-T2, RAW, f/5.6
Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration


Spherical aberration

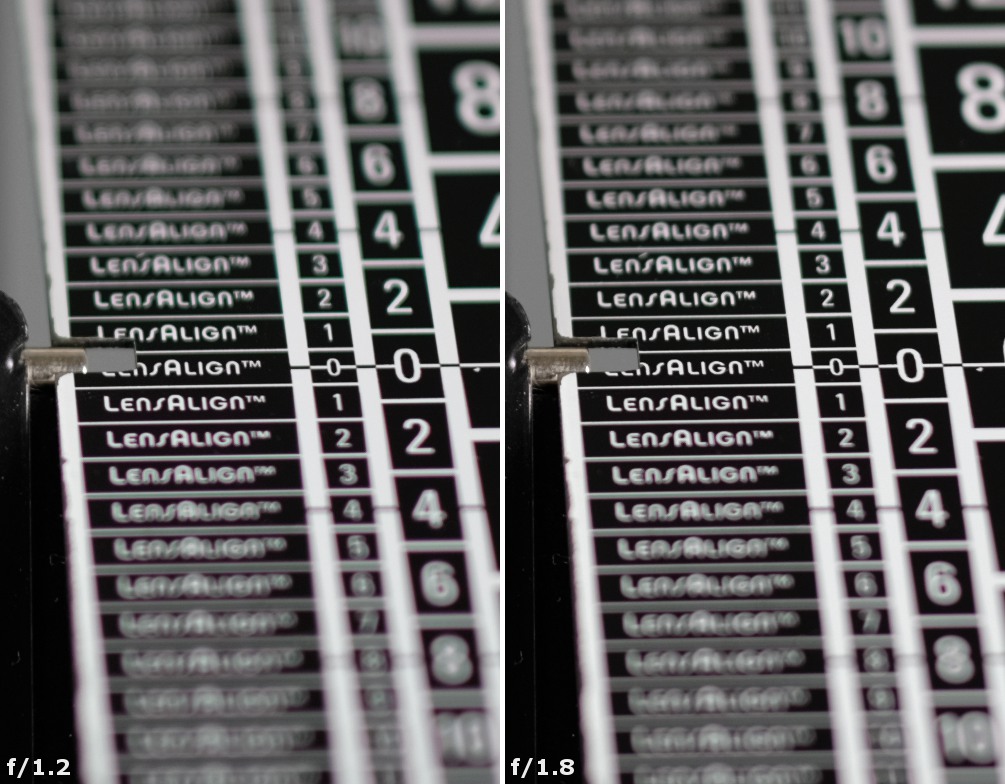

You can have some reservations concerning spherical aberration for a change. First photos of this chapter show focus shift – on stopping down the depth moves slightly towards greater distances. What’s more, defocused circles of light, reached before and after the focus, feature distinct differences characteristic for not completely corrected spherical aberration, like soft edges on the one side and slight rim on the other side. You can say spherical aberration contributes to worsening of image quality near the maximum relative aperture.

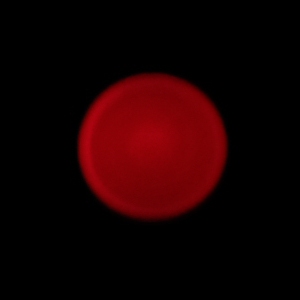

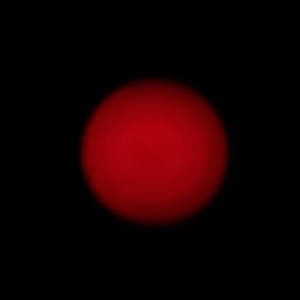

X-T2, f/1.2, in front of X-T2, f/1.2, behind
Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration Samyang 35 mm f/1.2 ED AS UMC CS - Chromatic and spherical aberration
