LensTip.com

Lens review

Irix 150 mm f/2.8 MACRO 1:1 Dragonfly

26 February 2019
Arkadiusz Olech

8. Vignetting

First let's check how the Irix 2.8/150 Macro deals with vignetting on the smaller sensor of the Canon 50D - appropriate thumbnails can be found below.

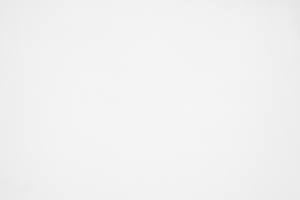

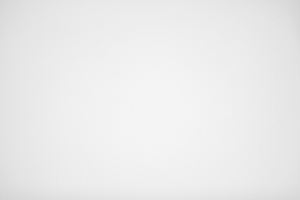

Canon 50D, f/2.8 Canon 50D, f/4.0
Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting


As you see, there are no problems whatsoever. Even at the maximum relative aperture it would be difficult to notice any vignetting as it amounts to just 13% (−0.39 EV). Additionally it disappears completely on stopping down the aperture to f/4.0 where we got a result of 4% (−0.13 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

How the situation changes when you progress to full frame? Let's find out.

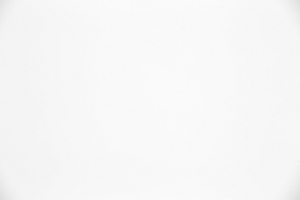

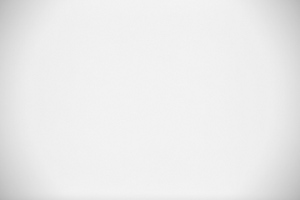

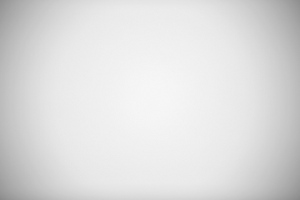

Canon 5D MkIII, f/2.8 Canon 5D MkIII, f/4.0
Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting

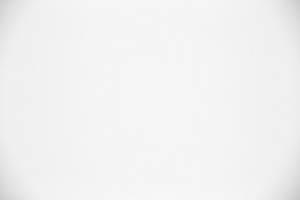

Canon 5D MkIII, f/5.6 Canon 5D MkIII, f/8.0
Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting


In this case the results are distinctly higher. By f/2.8 you have to take into account brightness loss of 42% (−1.55 EV) in the frame corners. It is a worse result than 37% reached by the Sigma 2.8/150 Macro OS, but the difference is not especially big. When you stop down the Irix to f/4.0, the vignetting decreases to 23% (−0.77 EV). By f/5.6 that aberration reaches 17% (−0.53 EV), and by f/8.0 and f/11 apertures it becomes practically imperceptible, amounting to, respectively, 10% (−0.32 EV) and 5% (−0.16 EV).

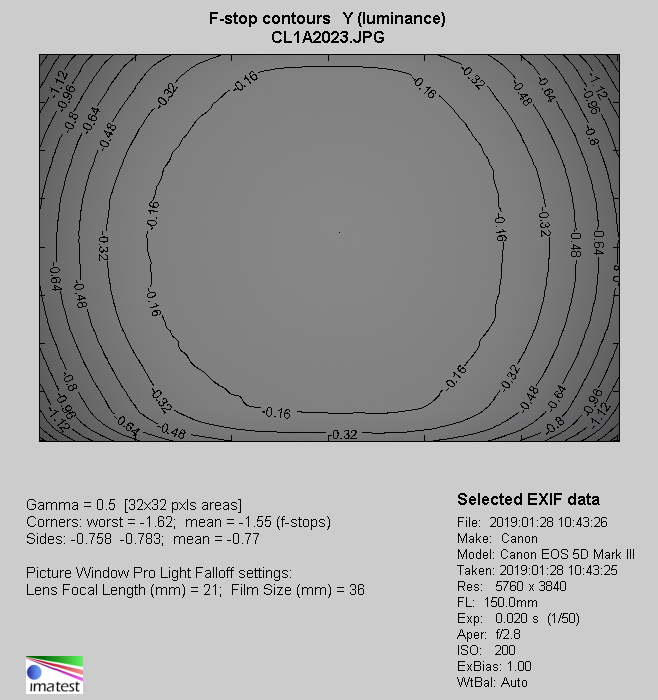

Canon 5D MkIII, JPEG, f/2.8
Irix 150 mm f/2.8 MACRO 1:1 Dragonfly - Vignetting
