5. Chromatic and spherical aberration

Chromatic aberration

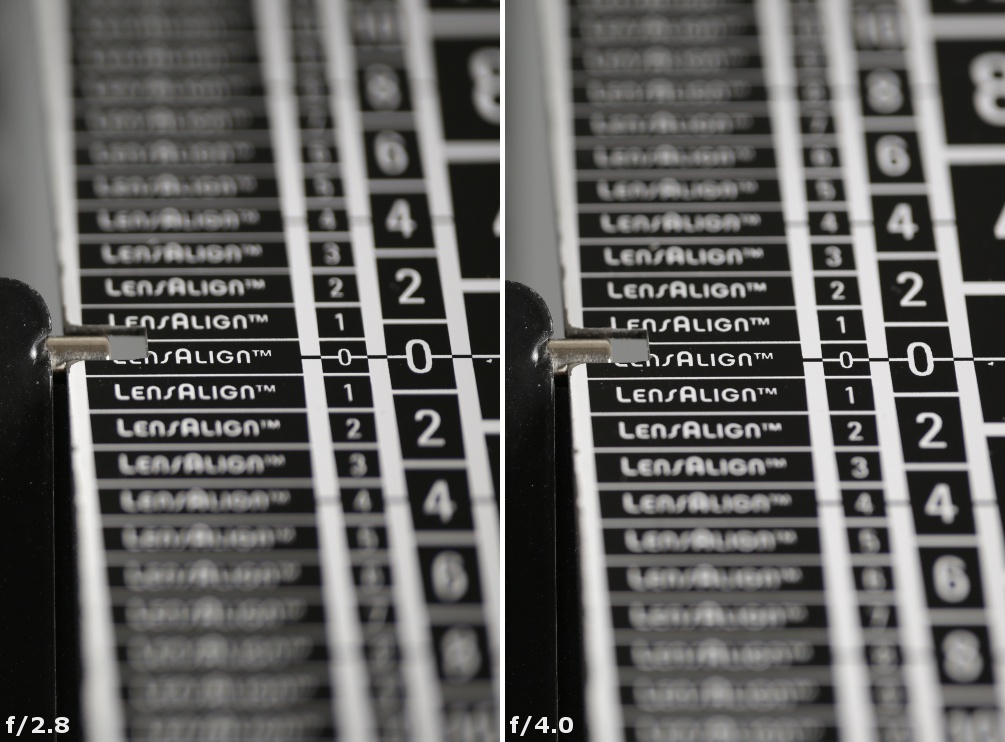

The APO letters in the name of the lens oblige to something and we are pleased to say Laowa's promises are not empty in this category. The photo, shown below, proves that the tested lens doesn't have any problems with longitucinal chromatic aberration. Even at the maximum relative aperture and in blurry areas positioned further away colouring is barely discernible.

Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration


What about the correction of lateral chromatic aberration? Let's glance at a graph, shown below.

Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


It is clear aberration decreases swiftly on stopping down the lens. The highest results are positioned on the borderline between moderate and medium values so even close to the maximum relative aperture you don't have any reasons to complain. Chromatic aberration reaches a very low level and stops being bothersome when you employ working apertures typical for macro lenses.

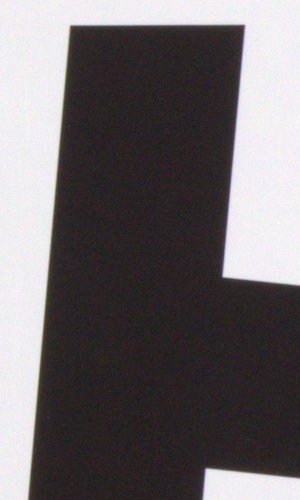

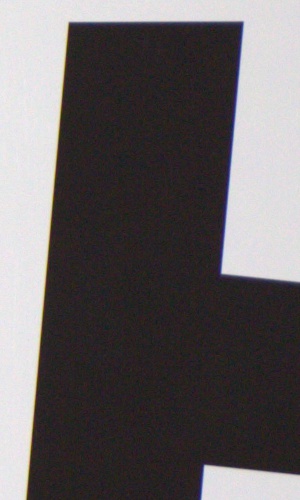

Canon 5D III, RAW, f/2.8 Canon 5D III, RAW, f/16.0
Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration


Spherical aberration

The lens didn't show any 'focus shift' effect so we don't have any reasons s to suspect that spherical aberration might not be properly corrected. Very high MTFs values we saw by f/2.8 are another proof. Still spherical aberration can't be corrected in a perfect manner because defocused circles of light we got before the focus have soft edges and the circles after the focus feature a noticeably brighter rims.

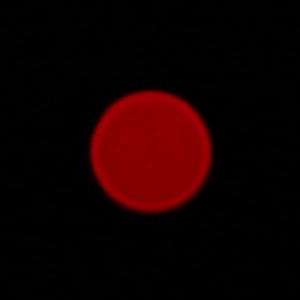

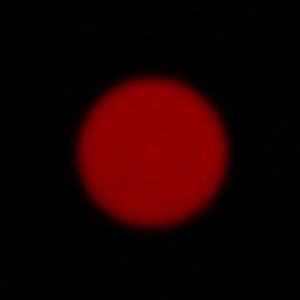

Canon 5D III, f/2.8, in front of Canon 5D III, f/2.8, behind
Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration Venus Optics LAOWA 100 mm f/2.8 2X Ultra Macro APO - Chromatic and spherical aberration
