8. Vignetting

First let's check the vignetting performance on the smaller APS-C/DX sensor – appropriate thumbnails, reached in crop mode with the help of the Nikon Z7 camera, can be found below.

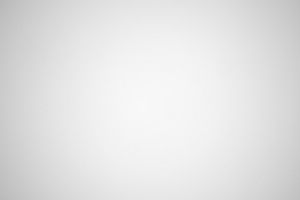

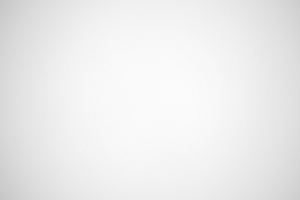

NikonáZ7, APS-C/DX, f/1.8 NikonáZ7, APS-C/DX, f/2.0
Nikon Nikkor Z 35 mm f/1.8 S - Vignetting Nikon Nikkor Z 35 mm f/1.8 S - Vignetting


The chances to notice vignetting you get only at the maximum relative aperture where that aberration reaches a moderate level of 24% (−0.78 EV). By f/2.0 it decreases to 19% (−0.62 EV), and by f/2.8 it becomes practically imperceptible, dropping to 10% (−0.30 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to full frame sensor there are far more problems and photos below show it pretty well.

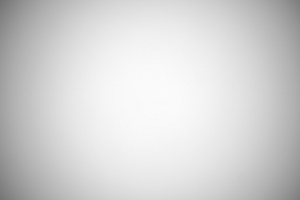

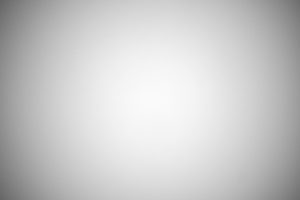

NikonáZ7, FF, f/1.8 NikonáZ7, FF, f/2.0
Nikon Nikkor Z 35 mm f/1.8 S - Vignetting Nikon Nikkor Z 35 mm f/1.8 S - Vignetting

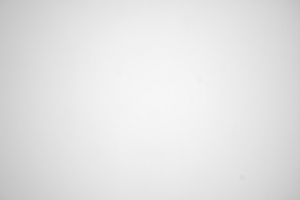

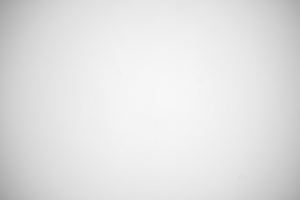

NikonáZ7, FF, f/2.8 NikonáZ7, FF, f/4.0
Nikon Nikkor Z 35 mm f/1.8 S - Vignetting Nikon Nikkor Z 35 mm f/1.8 S - Vignetting


At the maximum relative aperture you have to take into account a loss of as much as 57% of light in frame corners (−2.46 EV). In this area the tested lens fares weaker than its reflex camera equivalent but still it is better than the Tamron 1.8/35 and the Canon 2/35.

When you stop down the aperture to f/2.0 the vignetting is reduced but its level, 52% (−2.09 EV), remains high. You can notice it also by f/2.8 without any problems, with a result of 33% (−1.15 EV). A moderate level is achieved only by f/4.0 where that aberration amounts to 22% (−0.73 EV). By f/5.6 there's a slight decrease to 20% (−0.66 EV); further stopping down doesn't have any measurable influence on the aberration, described in this chapter.

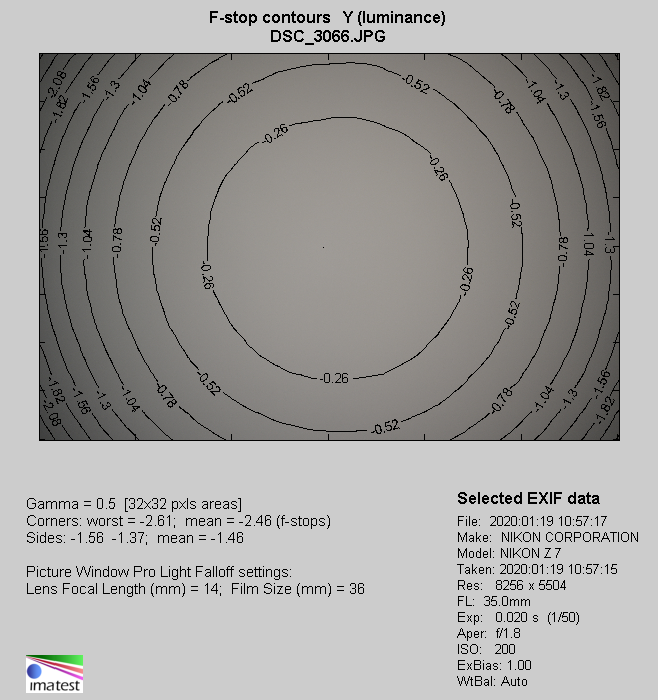

NikonáZ7, JPEG, f/1.8
Nikon Nikkor Z 35 mm f/1.8 S - Vignetting

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value of every image, expressed in percents, shows an area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please, don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected

Nikon Nikkor Z 35 mm f/1.8 S - Vignetting

f/1.8 f/2 f/2.8 f/4
