Nikon Nikkor Z 24 mm f/1.8 S

15 April 2020
Maciej Latałło

8. Vignetting

First let's check the vignetting performance on the smaller APS-C/DX sensor – appropriate thumbnails, prepared in crop mode with the help of the Nikon Z7, you can find below.

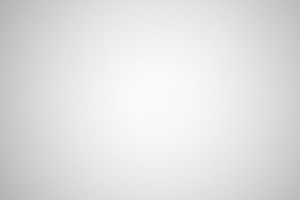

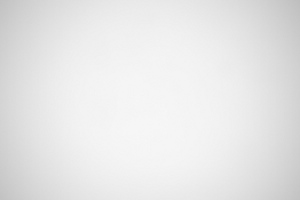

Nikon Z7, APS-C/DX, f/1.8 Nikon Z7, APS-C/DX, f/2.0
Nikon Nikkor Z 24 mm f/1.8 S - Vignetting Nikon Nikkor Z 24 mm f/1.8 S - Vignetting


You have some chances to notice vignetting only in area close to the maximum relative aperture. By f/1.8 that aberration reaches a moderate level of 27% (−0.89 EV). On stopping down the aperture to f/2.0 it decreases to 21% (−0.68 EV), and by f/2.8 it becomes practically imperceptible, dropping to a value of 10% (−0.30 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger full frame sensor there are far more problems – let's glance at photos below.

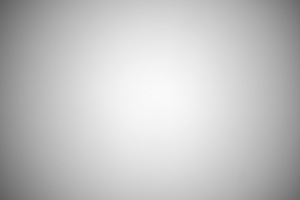

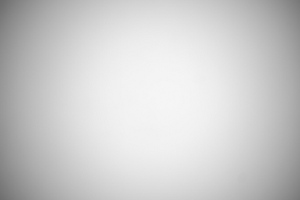

Nikon Z7, FF, f/1.8 Nikon Z7, FF, f/2.0
Nikon Nikkor Z 24 mm f/1.8 S - Vignetting Nikon Nikkor Z 24 mm f/1.8 S - Vignetting

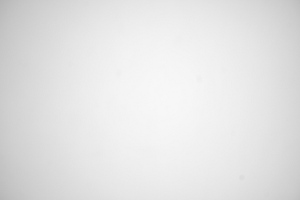

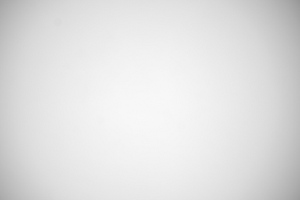

Nikon Z7, FF, f/2.8 Nikon Z7, FF, f/4.0
Nikon Nikkor Z 24 mm f/1.8 S - Vignetting Nikon Nikkor Z 24 mm f/1.8 S - Vignetting


At the maximum relative aperture you have to deal with brightness loss in frame corners of as much as 59% (−2.57 EV). Here the tested lens fares weaker than its reflex camera equivalent which vignetting level amounted to 50%.

When you stop the aperture down to f/2.0 vignetting decreases to a still high level of 53% (−2.18 EV). It remains quite noticeable also by f/2.8 where we got a result of 35% (−1.24 EV). A moderate value you can achieve only by f/4.0, where that aberration amounts to 25% (−0.82 EV). By f/5.6 you can notice another slight decrease to 23% (−0.74 EV), and further stopping down doesn't have a measureable influence on the aberration, described in this chapter.

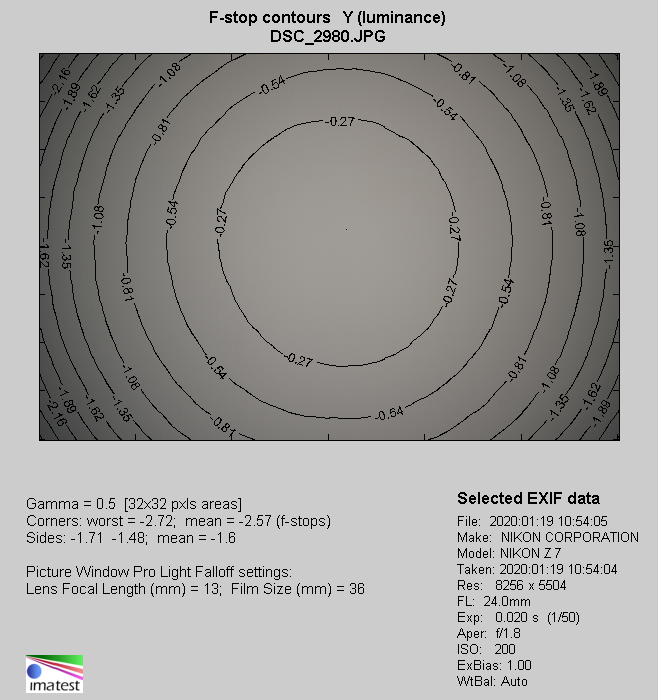

Nikon Z7, JPEG, f/1.8
