LensTip.com

Lens review

Nikon Nikkor Z 24 mm f/1.8 S

15 April 2020
Maciej Latałło

6. Distortion

The chart below shows a comparison of distortion results reached by other full frame 24 mm lenses which we have already tested. We present their results both for the APS-C/DX and full frame.


Nikkor Z
1.8/24 S
Nikkor
AF-S 1.8/24
Nikkor
AF-S 1.4/24
Sigma
A 1.4/24
Canon
1.4/24 II

Samyang
FE 2.8/24
APS-C/DX
−1.12%
−0.91%
−1.03%
−0.78%
−0.79%
−0.77%
FF
−2.07%
−1.76%
−2.03%
–1.20%
−1.26%
−0.38%


The chart proves that the new Nikkor Z corrects distortion like its two reflex camera brothers; however, it should be noticed that it gest some help in the shape of moustache distortion. That effect is perhaps not huge but it remains visible to the naked eye and it shows in measurements. When you limit your field to 1:1 markings , so an area without moustache-type deformations, you find out that the level of distortion amounts to −2.33% so a bit more than the averaged-out level you get across the frame.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In this category, plenty of expensive, fast 24 mm lenses have been ashamed by the small, shapely Samyang AF 2.8/24 FE, an instrument which distortion correction is beyond reproach, even if it is also helped a bit by moustache deformations. Still, that lens proves that you can fight this aberration even if your optical construction is not especially complex.

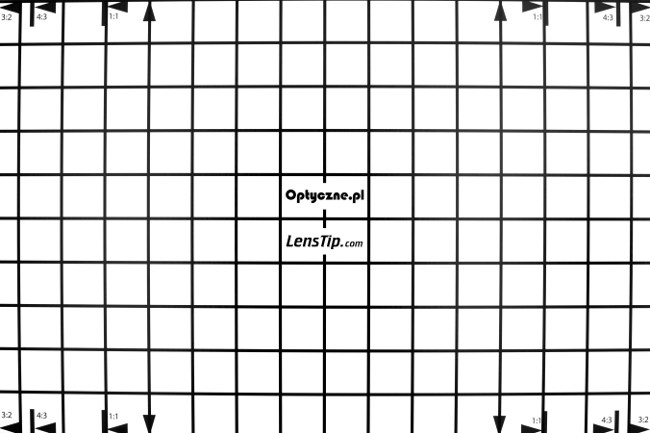

Nikon Z7, 24 mm, APS-C/DX
Nikon Nikkor Z 24 mm f/1.8 S - Distortion

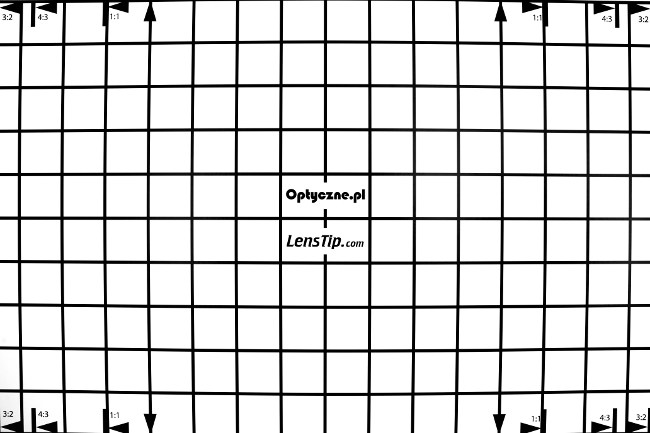

Nikon Z7, 24 mm, FF
Nikon Nikkor Z 24 mm f/1.8 S - Distortion
