Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO

3 June 2020
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

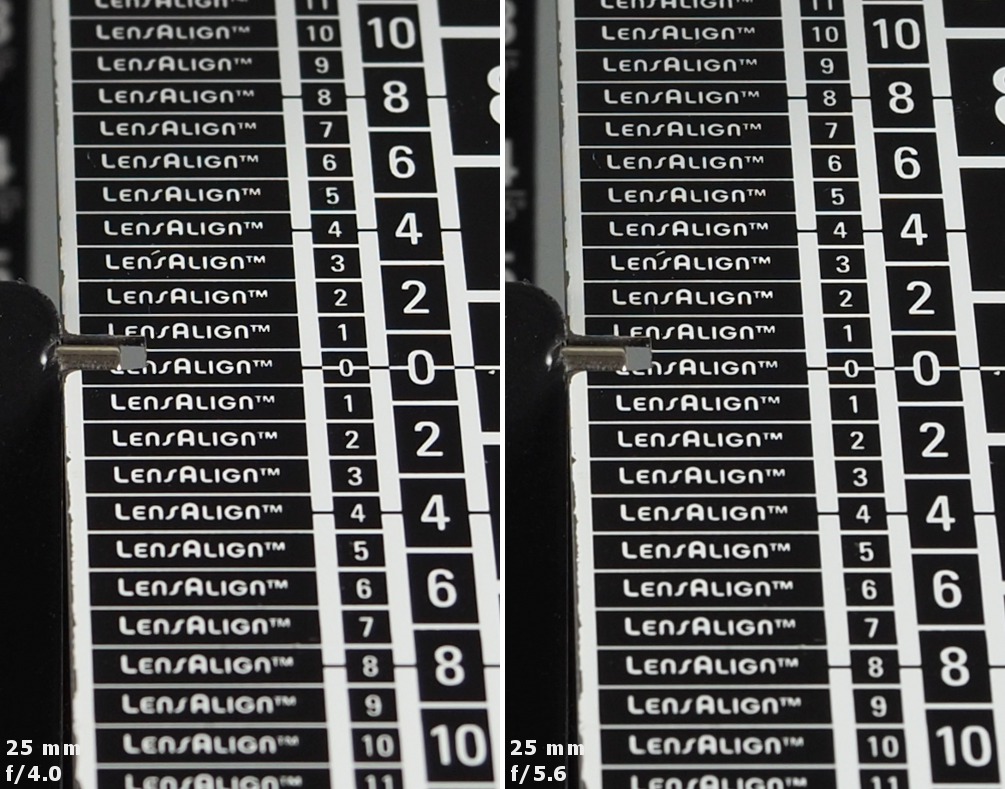

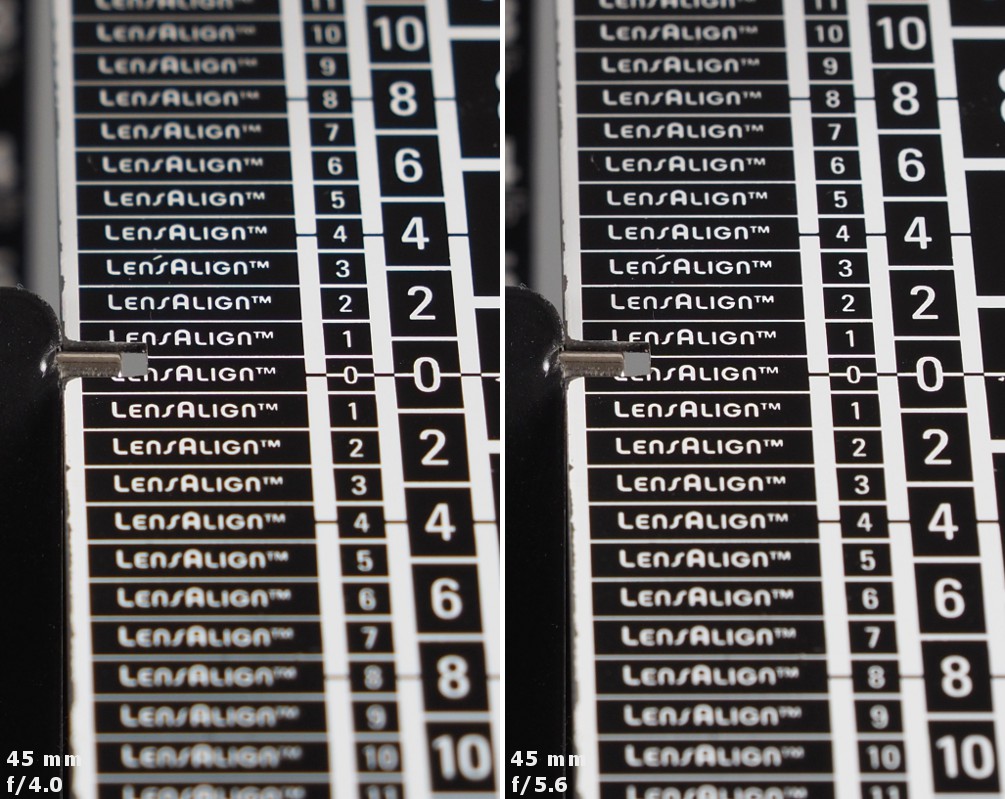

Longitudinal chromatic aberration makes itself felt a bit at the maximum focal length – not a strong effect but certainly noticeable. At the shorter end of the focal spectrum we didn't notice any problems for a change.

Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration

Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration


Now let's check lateral chromatic aberration – its performance, depending on focal lengths and aperture values presents a graph below.

Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


At both ends of the focal range aberration depends weakly on aperture values and keeps a level of 0.04-0.06% no matter what aperture you set. In the case of the 25 mm focal length the aberration described here, increases quickly with the decrease of the relative aperture: it is 0.02% near f/4.0 and it gets to 0.05% in an aperture range from f/11 to f/22. Still, it should be clearly stated that values up to 0.04% are considered negligible as they are practically imperceptible in real life photos. The 0.04-0.06% range, so maximum values shown by the tested Olympus in this category, are on the borderline between low and very low level. As a result our assessment of the correction of lateral chromatic aberration is very high and definitely positive.

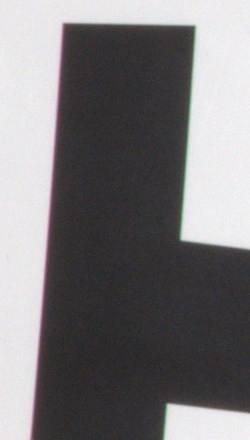

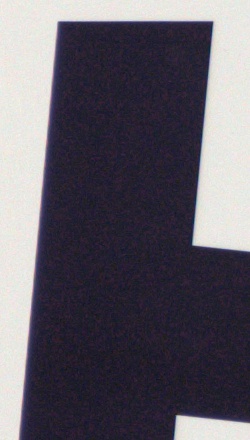

E-M5 II, RAW, 12 mm, f/16.0 E-M5 II, RAW, 25 mm, f/4.0
Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter prove that the lens doesn't have any 'focus shift' effect – circles produced before and after the focus aren't perhaps identical but they don't show any significant differences either. All of this indicates that there are no serious problems with correcting spherical aberration.
Olympus E-M5 II, 25 mm, f/4.0, before Olympus E-M5 II, 25 mm, f/4.0, after
Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration
Olympus E-M5 II, 45 mm, f/4.0, before Olympus E-M5 II, 45 mm, f/4.0, after
Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration Olympus M.Zuiko Digital ED 12-45 mm f/4.0 PRO - Chromatic and spherical aberration
