LensTip.com

Lens review

Sigma 24-70 mm f/2.8 EX DG HSM

3 June 2009
Arkadiusz Olech

8. Vignetting

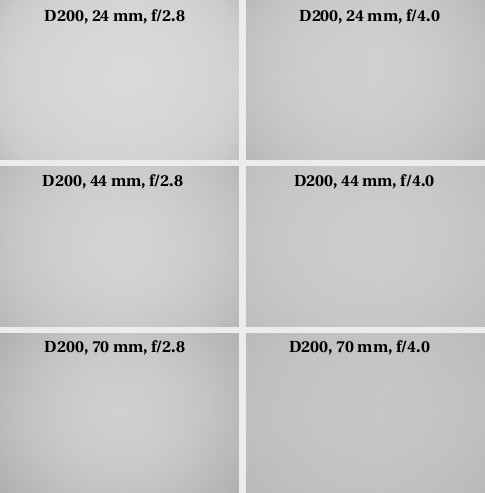

Let’s begin from the Sigma 24-70 mm performance on the Nikon D200 small sensor as it is beyond reproach – the vignetting won’t disturb us here at all, no matter what aperture and focal length combination we choose.

Sigma 24-70 mm f/2.8 EX DG HSM - Vignetting




Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Usually, the most difficult part comes when we want to combine the widest angle and the fastest aperture possible (24 mm by f/2.8 in this case). Here we get an 11% vignetting level ( -0.35 EV) so hardly visible. By f/4.0 it decreases by next 2%.

At 45 mm wide open, the level of vignetting reached 13% ( -0.40 EV) and by f/4.0 it dropped to 7%. Similarly, at maximum focal length by f/2.6 we get 15% vignetting (-0.48 EV), but by f/4.0 it’s just 6%.

It’s worth notice, that these results are very much the same as the results of the Nikkor 24-70 mm, a bit better than those of the Zeiss/Sony 24-70 mm and significantly better than those of the Canon 24-70 mm.

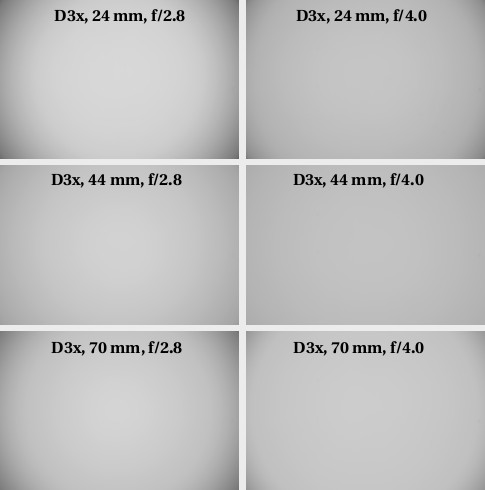

Full frame is a law unto itself. The vignetting results, obtained on the Nikkon D3x are a very fine example of that truth. For the 24 mm and f/2.8 combination the illumination loss in the frame corner is exactly 50% (-2.00 EV). What’s important, the level of the aberration decreases on stopping down but not as fast as we were accustomed to dealing with small detectors. By f/4.0 the vignetting is 36%, by f/5.6 its level amounts to 31%, by f/8 it reaches 27%, by f/11 it’s still 23%.

Sigma 24-70 mm f/2.8 EX DG HSM - Vignetting


The situation is much better for the middle focal lengths. There, at maximum relative aperture, the vignetting reaches 24% ( -0.80 EV). After closing the aperture by one stop the vignetting stops being a problem, because it decreases to 11%.

Unfortunately, for maximum aperture the problem returns. By f/2.8 the illumination loss in the corners of the frame reaches as much as 43% ( -1.61 EV) and for f/4.0 it amounts to 26%. The aberration is still visible by f/5.6 because its value, measured by us, was still 19% and it disappears almost completely only for f/8.0 and f/11, with the results of 14% and 9% respectively.
