LensTip.com

Lens review

Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED

10 December 2013
Arkadiusz Olech

6. Distortion

If you use the Nikkor AF-S 18–35 mm f/3.5–4.5G ED with a body featuring an APS-C/DX sensor, the distortion won’t be a huge problem. It is still noticeable at the shortest focal length, where you get “barrel” amounting to -2.52% but overall it can be considered moderate. At longer focal lengths the situation is even better because, at 26 mm we got -1.10% and at 35 mm only -0.53%.

The distortion problems increase on full frame for obvious reasons. Their caliber is really high at 18 mm focal length where the distortion level, measured by us, amounted to −4.72%. As if it wasn’t enough, you have to deal with moustache distortion here. It gets as high as to −5.3% in the very centre of the frame but on the edges that aberration decreases to −4.4%. All these results compare unfavourably with those of the rivals. For example the distortion of the Tokina 17-35 mm at the widest angle (and it’s worth remembering that it is a bit wider than that of the Nikkor) amounted to just −3.64%.

In the middle of the focal range the distortion is noticeably lower, amounting to −2.18%. It is a level which you can describe as moderate. The fewest problems you get at 35 mm where the barrel distortions reach just −1.16%.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

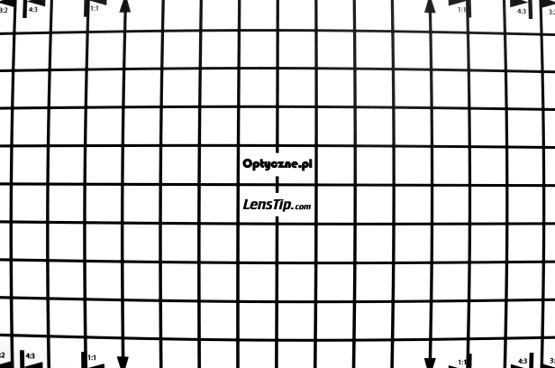

Nikon D7000, 18 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion

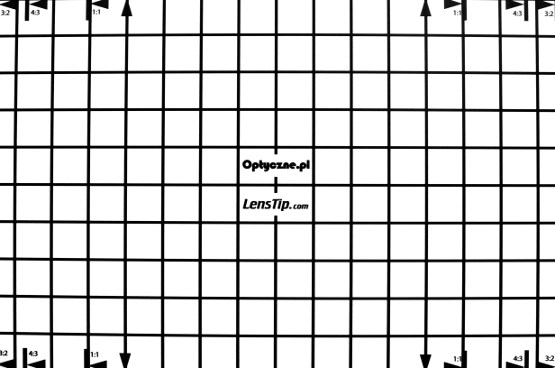

Nikon D7000, 26 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion
Nikon D7000, 35 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion

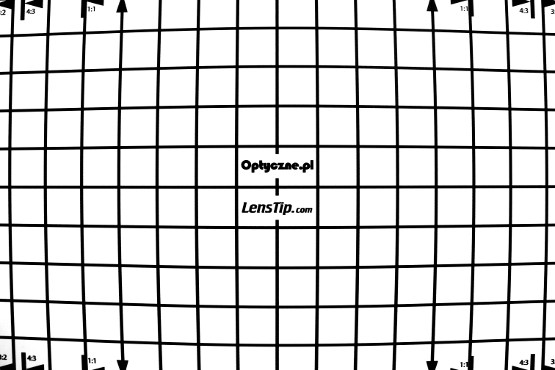

Nikon D3x, 18 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion
Nikon D3x, 26 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion

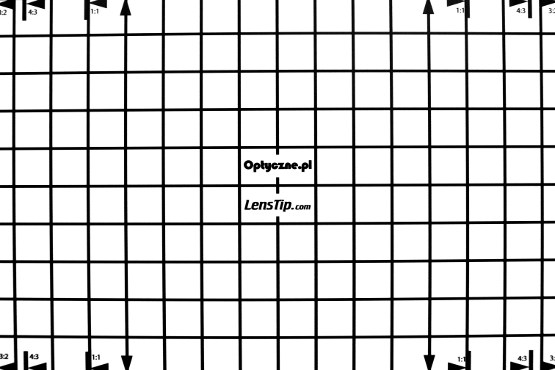

Nikon D3x, 35 mm
Nikon Nikkor AF-S 18-35 mm f/3.5-4.5G ED - Distortion
