Everything you always wanted to know about the semi-transparent mirror technology (but were afraid to ask)

19 January 2015
Szymon Starczewski

3. A short analysis of patents

Patents are an excellent source of information and the germs of rumours. Sony have filed several of them, two being especially interesting. They concern an operation of a camera equipped with a semi-translucent mirror (US20100045853A1), the details of that mirror structure and a theoretical resolution change caused by different coatings (US20100277637A1).

Everything you always wanted to know about the semi-transparent mirror technology (but were afraid to ask) - A short analysis of patents

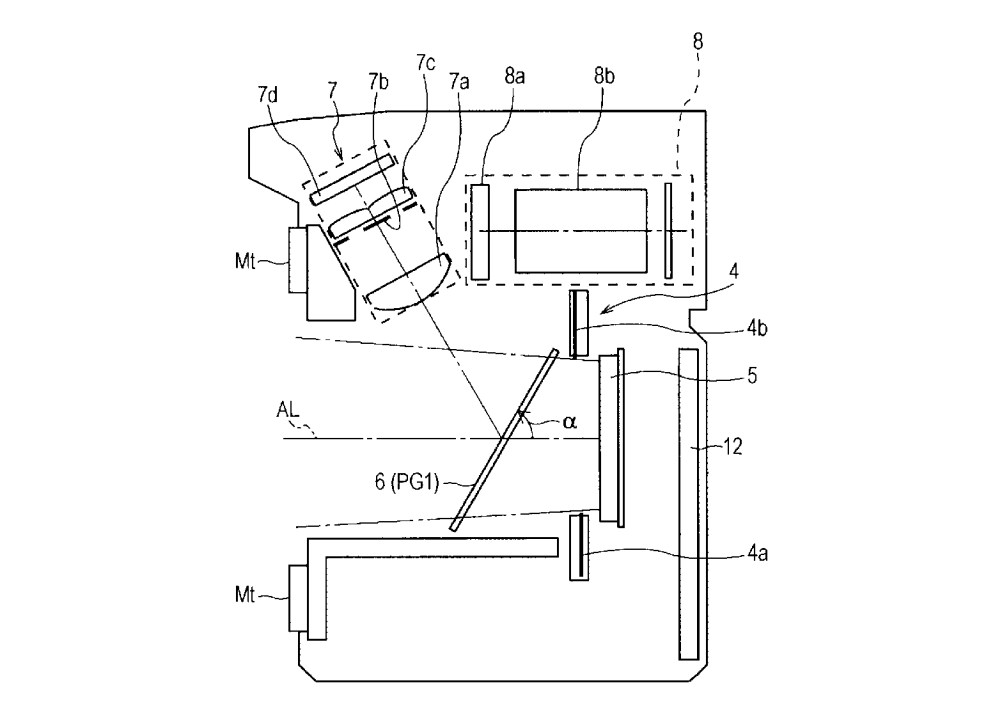

A camera diagram taken from the patent

Above you can see a diagram of a camera equipped with a semi-translucent mirror which can be lifted like in classic reflex cameras. Its conception doesn’t differ much from cameras with a fixed mirror but it’s always better to patent all possible variations just in case. Display preview 8a, phase AF sensor 7, focal plane shutter 4, image sensor 5. No surprises. There is also a system featuring an ordinary optical viewfinder:

Everything you always wanted to know about the semi-transparent mirror technology (but were afraid to ask) - A short analysis of patents

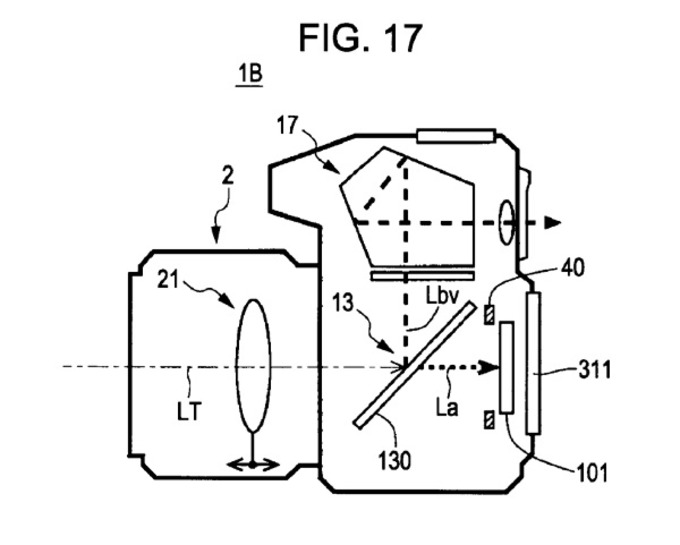

A camera’s diagram from the patent, second version

You can also find more interesting info concerning the mirror itself, the most advanced one being presented below. Most probably it is employed in cameras currently produced.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Everything you always wanted to know about the semi-transparent mirror technology (but were afraid to ask) - A short analysis of patents

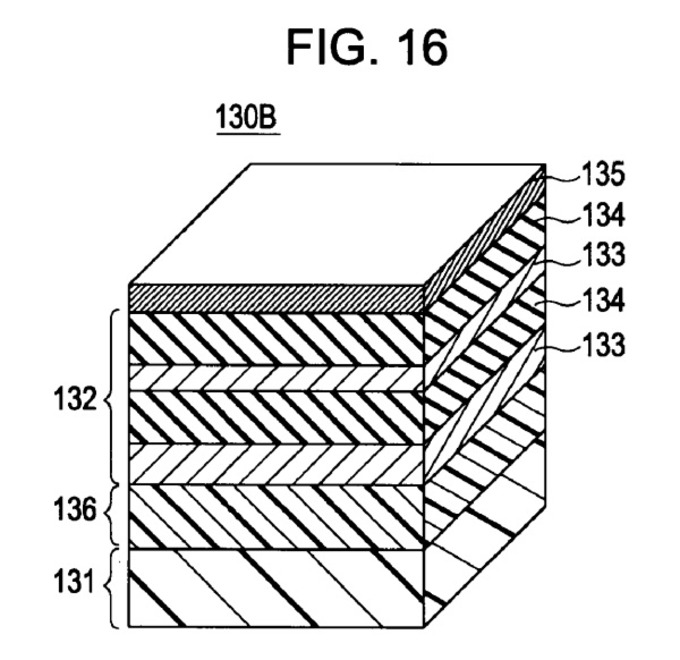

A mirror diagram taken from the patent

Its base is most probably made of cyclic olefin copolymer; the vapour deposited mirror consists of layers of quartz (SiO2) alternate with layers of niobium pentoxide (Nb2O5). The mirror is protected by a hard oxide layer and then fluorinated which increases the surface tension, acts as a hydrophobic and oleophobic coating and makes the cleaning of the mirror easier. It seems the engineers really applied themselves to their work. They even checked the influence of fluorination on vertical and horizontal resolution; a pity they didn’t provide any units.

Everything you always wanted to know about the semi-transparent mirror technology (but were afraid to ask) - A short analysis of patents

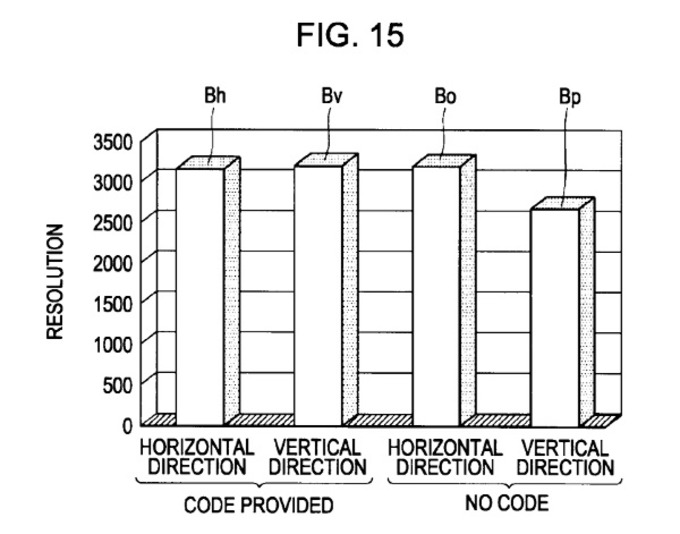

Declared influence of the surface coating on resolution
