LensTip.com

Lens review

Canon EF-S 55-250 mm f/4-5.6 IS

20 July 2009
Arkadiusz Olech

8. Vignetting

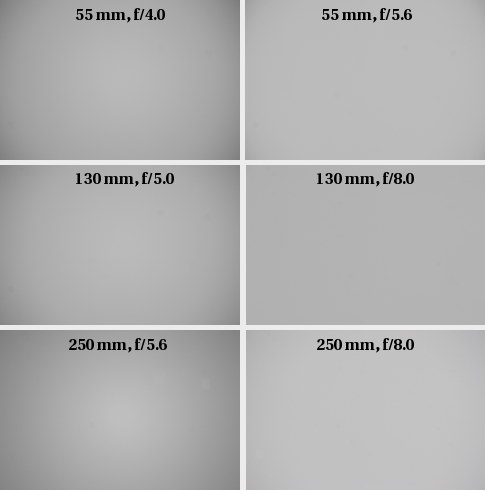

The Canon 55-250 IS has a particularly narrow body and therefore we were curious to see how this characteristic is going to influence its behavior in the category of fall-off. Unfortunately, it seems that we were right worrying about the lens’s results in this category. At 55mm focal length and the maximum aperture the light fall off in the corners of the frame was as much as 32% (-1.1 EV), which seems to be a quite large value. Fortunately, after stopping down the lens to f/5.6 the defect goes down to 13% and at f/8.0 it almost completely disappears (3%).

Canon EF-S 55-250 mm f/4-5.6 IS - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

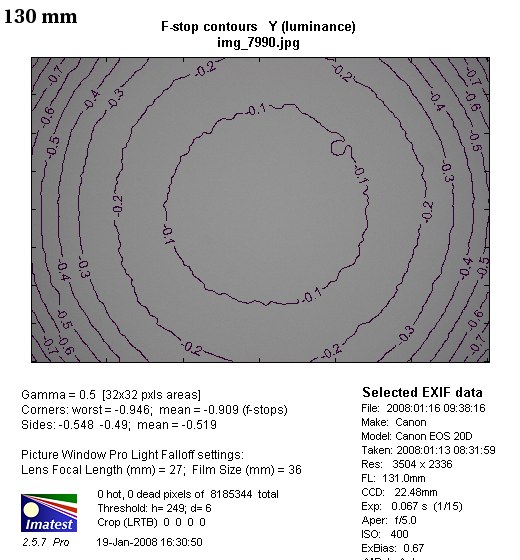

The situation in the middle of the focal length range is a little bit better. Here, for f/5.0 the vignetting reaches 27% (-0.91 EV). Stopping the lens down to f/5.6 makes this value drop down to 21% and at f/8.0 it disappears (3%).

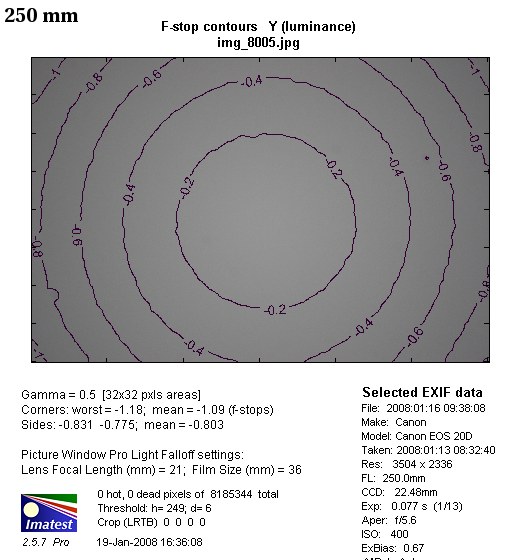

The vignetting starts increasing again at 250mm focal length. At this point, for the maximum aperture, the light fall off in the corners of the frame reaches 31% (-1.09 EV). Fortunately, at f/8.0 it comes down to an acceptable value of 10%.

The results may not be that great, but again we have to add that both 55-200 Nikkors perform much worse in this category, scoring over 30% for all the focal lengths and maximum aperture. On one hand it is harder for Nikkor since it projects its image on a larger detector with crop factor 1.5x, on the other hand its focal length range is smaller, which means we can expect a little bit more than in case of Canon.

Canon EF-S 55-250 mm f/4-5.6 IS - Vignetting

Canon EF-S 55-250 mm f/4-5.6 IS - Vignetting

Canon EF-S 55-250 mm f/4-5.6 IS - Vignetting
