Lens review

Sigma 30 mm f/1.4 EX DC HSM

18 August 2009
Arkadiusz Olech

6. Distortion

As everybody knows, distortion of the same optical construction mounted on different camera bodies will depend on the size of the detector. It’s no wonder, then, that the smallest distortion is expected with Olympus E-3, some higher with Canon 20D and the highest with all the other cameras having sensors of 1.5 factor.

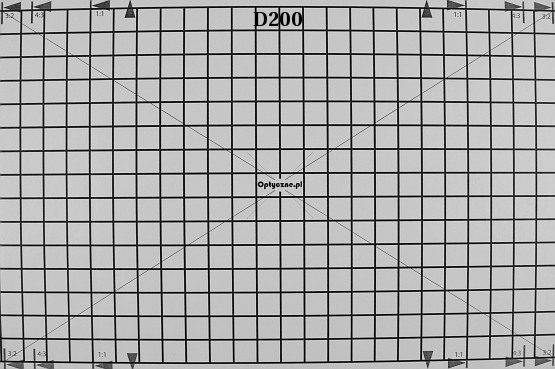

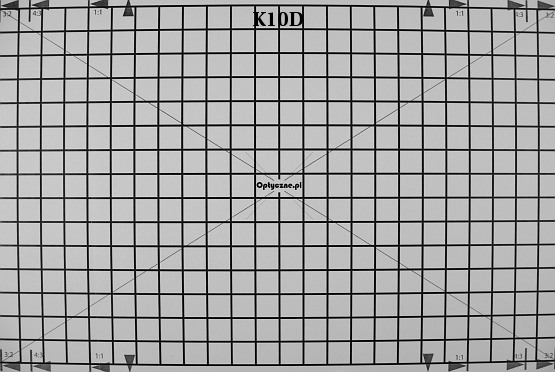

For Sony A100, Pentax K10D and Nikon D200 the results are in perfect agreement. Every time we see a noticeable barrel distortion of values -2.10%, -2.12% and -2.13% respectively. The agreement is perfect as the measuring errors in the case of distortion usually equal 0.1%.

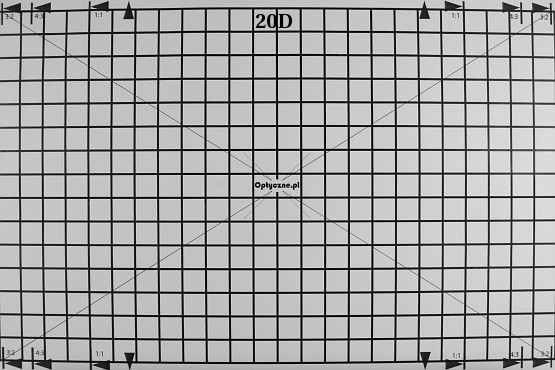

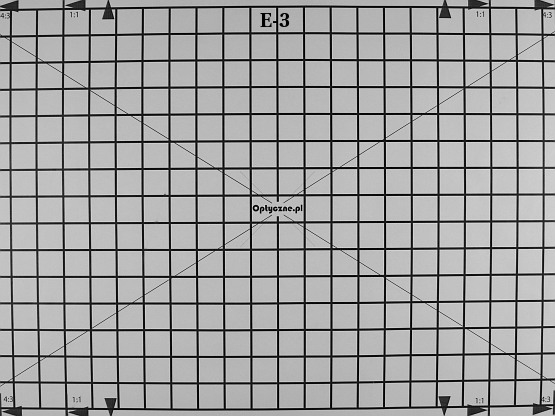

As we expected, Sigma on Canon 20D shows marginally lower distortion, as a measured by us result equals -1.91%. It’s no surprise that the result on E-3 is even smaller and equals -1.46%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In this category Sigma didn’t deserve much praise or reprimand. It’s worth to stress, though, that in a prime of this focal length, designed for small sensors, the level of this aberration should be smaller.


Sigma 30 mm f/1.4 EX DC HSM - Distortion

Sigma 30 mm f/1.4 EX DC HSM - Distortion

Sigma 30 mm f/1.4 EX DC HSM - Distortion

Sigma 30 mm f/1.4 EX DC HSM - Distortion
