Lens review

Canon EF 16-35 mm f/2.8L II USM

29 September 2009
Arkadiusz Olech

4. Image resolution

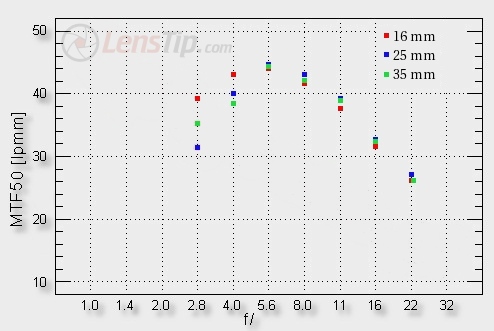

As currently designed and prepared to cooperate with digital cameras, high class lenses have accustomed us to resolution record breaking results. How will the Canon 16-35 mm fare in this category? Look at the picture below, presenting MTF values for the frame centre based on the RAW files analysis from a Canon 20D camera.

Canon EF 16-35 mm f/2.8L II USM - Image resolution

Firstly, the maximum results are indeed close to records. By f/5.6 at all focal lengths the lens reaches ideally even and outstandingly high level of 44 lpmm. When the maximum aperture is increased to f/4.0 we will start to notice differences between particular focal lengths but still the level will remain very high. By f/2.8 the differences between particular focal lengths are the biggest. You can have no reservations about the 16 mm performance because there the lens reaches almost 40 lpmm. At 35 mm the situation is not bad either because the level of 35 lpmm, when wide open, you can accept as very good without a problem. The worst result, but still relatively high, we get for the middle of the focal lengths range – we barely pass 30 lpmm there.

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

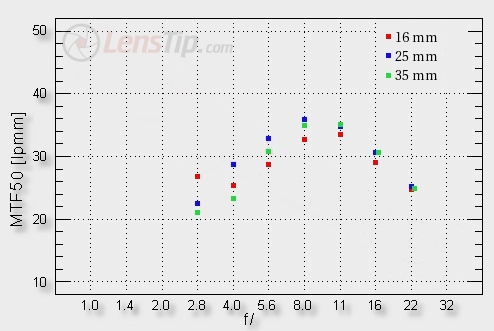

If the frame centre performance deserves only praise, we were very disappointed looking at the results for the frame edge. The MTF values in the graph below speak for themselves.

Canon EF 16-35 mm f/2.8L II USM - Image resolution

First of all, to reach the decency level, situated for high class lenses at 30 lpmm, we have to stop down by two f stops! At the maximum aperture and by longer focal lengths this lens, after all designed for full frame, barely exceeds the level of 20 lpmm and we speak about a performance on a small APS-C matrix! A huge slip-up if I’ve ever seen one!

The results are one thing, though; it’s always worth taking a reality check. First, let’s have a look at the JPEG files of our test charts. Two frame centre crops are presented at the beginning, showing the weakest (25 mm, f/2.8) and the best (35 mm, f/5.6) results.

Canon EF 16-35 mm f/2.8L II USM - Image resolution

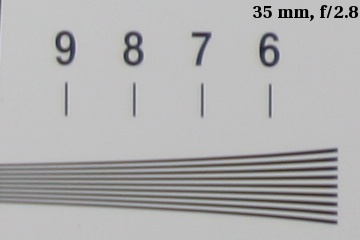

Below, a frame corner crop for f2.8 and 35 mm focal length. As you see, there’s really nothing to be happy about.
