Lens review

Samyang 14 mm f/2.8 IF ED MC Aspherical

6 October 2009
Arkadiusz Olech

3. Build quality

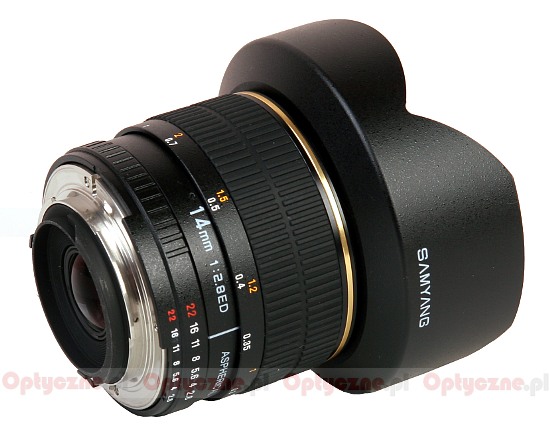

The first striking thing, when we take Samyang in our hands, is an enormous and convex front lens. It is of really large dimensions and it’s been surrounded with a built-in petal lens hood. Right behind it, there’s a broad, corrugated and convenient manual focusing ring. The ring works smoothly, but with an appropriate resistance. There are no reservations to its work. There’s a distance scale imprinted on it, expressed in feet and meters.

Samyang 14 mm f/2.8 IF ED MC Aspherical - Build quality

Right behind the ring, there’s a small and fixed fragment of a metal body with a 14 mm 1:2.8ED ASPHERICAL IF inscription. Moving towards the bayonet, we find a narrow aperture ring which, contrary to the model of 8 mm focal length, works with an appropriate resistance. We can choose an aperture value withe a 1/2 EV step.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

At the very end, we find a metal bayonet which surrounds a fixed rear lens of about 17 mm diameter.

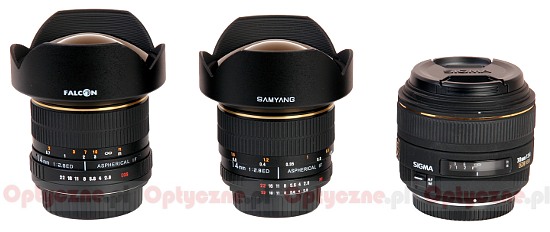

How does Samyang 14 mm come out compared to its rivals? Our table shows the comparison of its parameters with other lenses of this class. As you can see, as far as weight and dimensions go, all the lenses make a dense and homogeneous group. Samyang falls behind the more expensive lenses only by the minimum focusing distance, being it 0.28 meter, while in Sigma and Nikkor it can be as little as 0.18-0.2 meter.

Samyang 14 mm f/2.8 IF ED MC Aspherical - Build quality

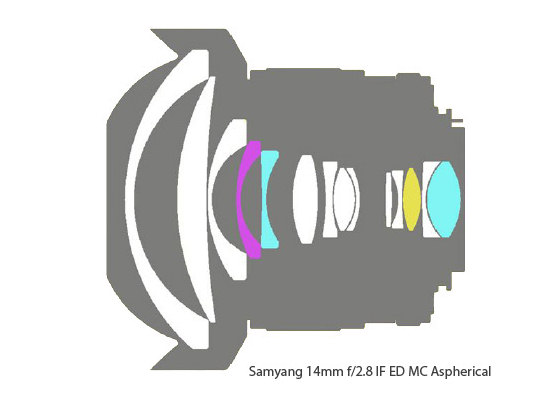

Its inner construction is similar as well. All the 14 mm lenses discussed, consist of 14 elements. In the case of Samyang, they’ve been put in 12 groups, two lenses have been made of low-dispersion ED glass, and two others have an aspherical shape.

Samyang 14 mm f/2.8 IF ED MC Aspherical - Build quality

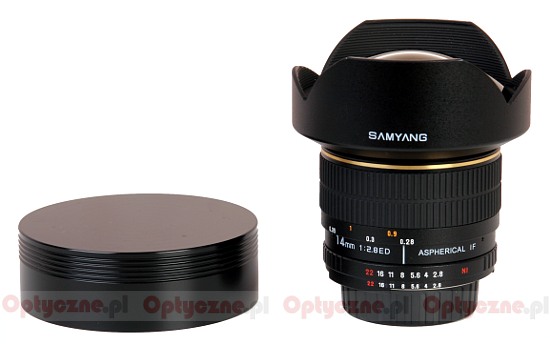

A buyer gets both caps and a soft case in the set.

Samyang 14 mm f/2.8 IF ED MC Aspherical - Build quality
