LensTip.com

Lens review

Olympus Zuiko Digital ED 50-200 mm f/2.8-3.5 SWD

13 October 2009
Arkadiusz Olech

8. Vignetting

In this category the whole Four Thirds system fares very well. After all, it’s one of the main advantages of a small detector use.

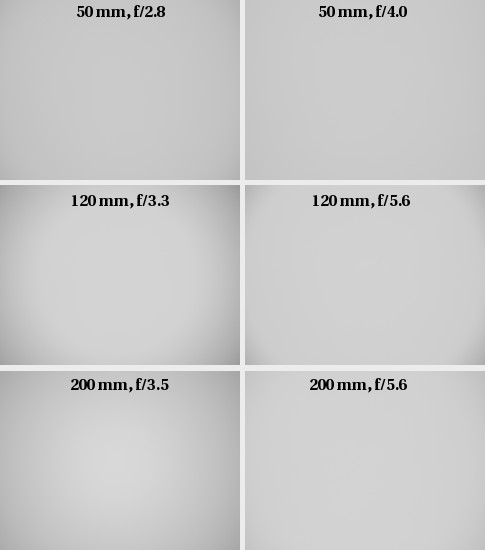

Olympus Zuiko Digital ED 50-200 mm f/2.8-3.5 SWD - Vignetting

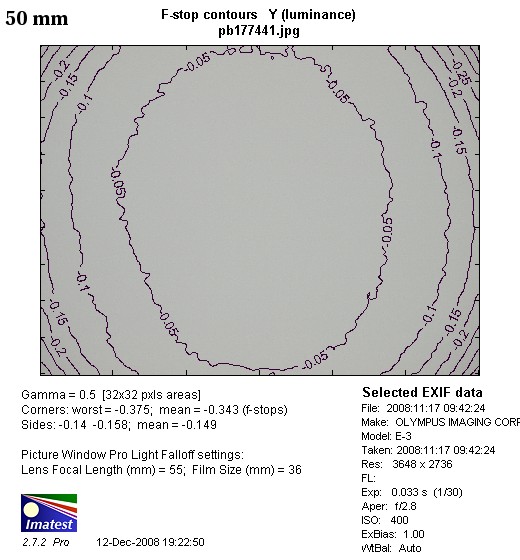

At 50 mm and wide relative aperture the vignetting is just 11% ( -0.34 EV) so practically imperceptible. On stopping down to f/4.0 we get just 4%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

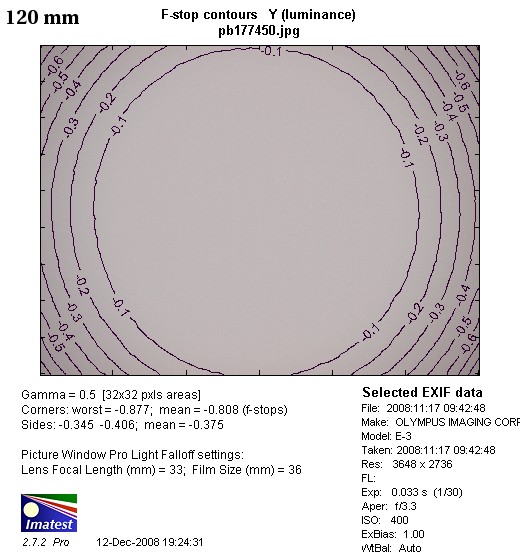

What’s interesting, the highest vignetting level we get for the middle of the focal lengths range. At wide aperture it reaches 24% ( -0.81 EV) what is already a significant amount. We were also surprised that, on stopping down, the vignetting decreases quite slowly. By f/4.0 the level of this aberration is 20%, by f/5.6 we get 15% and only by f/8 we finally have an imperceptible level of 8%.

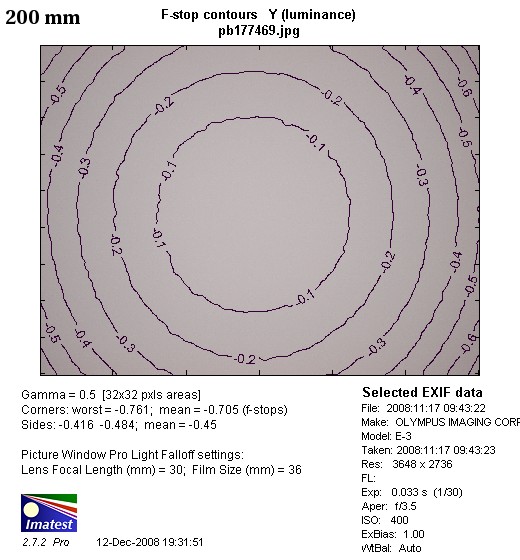

The situation is slightly beter at 200 mm setting. At wide aperture f/3.5 the vignetting reaches 22% ( -0.71 EV) and decreases to 16% by f/4.0. Using the f/5.6 aperture makes the problem disappear completely (8%).


Olympus Zuiko Digital ED 50-200 mm f/2.8-3.5 SWD - Vignetting

Olympus Zuiko Digital ED 50-200 mm f/2.8-3.5 SWD - Vignetting

Olympus Zuiko Digital ED 50-200 mm f/2.8-3.5 SWD - Vignetting
