LensTip.com

Lens review

Nikon Nikkor AF-S 70-300 mm f/4.5-5.6G IF-ED VR

12 March 2010
Arkadiusz Olech

8. Vignetting

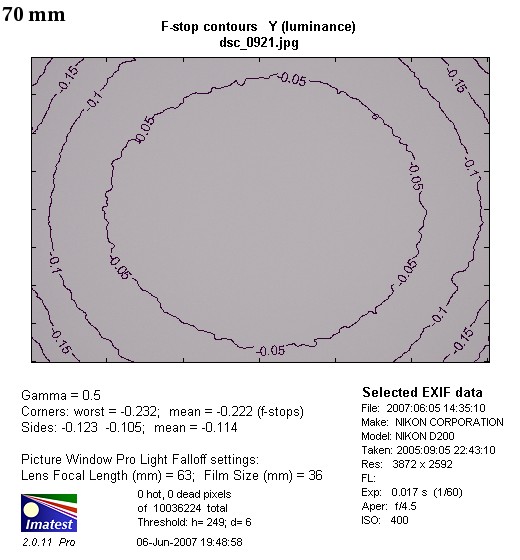

According to our expectations the wide front element and the big barrel made themselves felt in a positive way when it comes to vignetting. At 70 mm the problem doesn’t exist because even wide open the light fall-off in the frame corners amounts to only 8% (-0.25 EV). The situation is similar at 135 mm because there the maximum vignetting level which we managed to measure reached 10% (-0.31 EV) – it is considered a borderline of the visibility level.

Nikon Nikkor AF-S 70-300 mm f/4.5-5.6G IF-ED VR - Vignetting


Results are only a tad worse at 200 mm focal length. There by f/5.3 the brightness loss in the frame corners amounts to 14% (-0.43 EV). It’s enough to stop the lens down to f/5.6 though to see the vignetting decreasing to 10%. By f/8 it is at the negligible level of 3%.

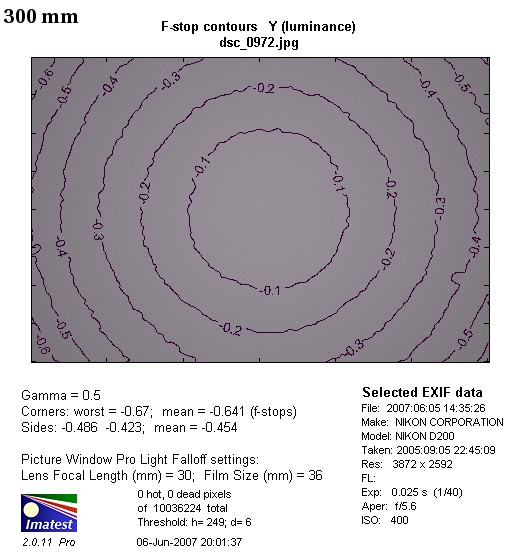

The worst situation, which is not bad at all by the way, we notice at the maximum focal length where, by f/5.6, we saw the vignetting of 20% (-0.64 EV). Fortunately on stopping down by one stop we can make the problem decrease to only 2%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Nikon device fared better than the Tamron and the Sigma in this category but, to our surprise, not better than the Canon 70-300 IS which reached fantastic results here as its highest vignetting level was only 11%. To sum up, we must emphasize that none of the 70-300 mm class instruments, tested here, showed vignetting that would be considered uncomfortable in daily use.

Nikon Nikkor AF-S 70-300 mm f/4.5-5.6G IF-ED VR - Vignetting

Nikon Nikkor AF-S 70-300 mm f/4.5-5.6G IF-ED VR - Vignetting
