Lens review

Olympus M.Zuiko Digital 14-42 mm f/3.5-5.6 ED

7 April 2010
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

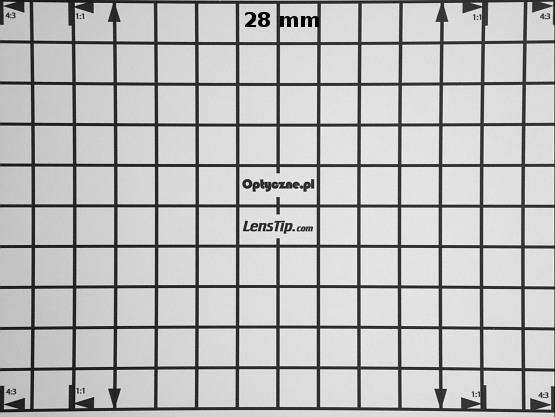

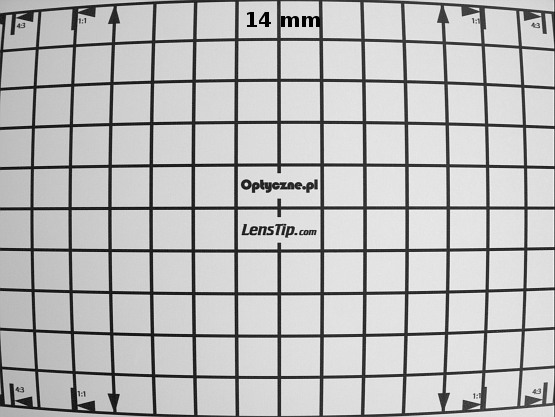

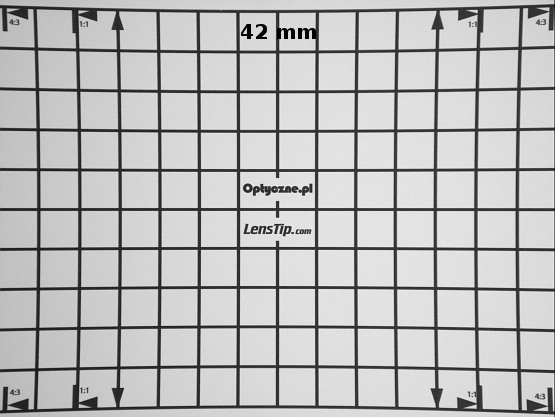

One glance at the photos below is enough to find out that the situation is not good in this category. At the shortest focal length we note a very high barrel distortion reaching as much as −5.48%. With the increasing of the focal length this aberration changes sign quickly and at 28 mm it becomes a quite pronounced “pincushion” with the value of 1.29%. As if it wasn’t enough in the rest of the focal length range it increases all the time and at 42 mm it reaches as much as 2.86%.

Well…apparently Olympus assumed that they don’t have to design optical devices distortion-free because E-P1 and E-P2 feature a distortion correction system anyway. In our opinion such a policy is not good – if we want to get a “normal” image the correction of significant barrel distortion must be connected with limiting the lens’s field of view. After all a distortion correction program can’t “conjure up” information about the parts of image which were “pushed” outside the frame by distortion.


Olympus M.Zuiko Digital 14-42 mm f/3.5-5.6 ED - Distortion

Olympus M.Zuiko Digital 14-42 mm f/3.5-5.6 ED - Distortion

Olympus M.Zuiko Digital 14-42 mm f/3.5-5.6 ED - Distortion
