LensTip.com

Lens review

Tamron SP AF 17-35 mm f/2.8-4 Di LD Aspherical (IF)

5 October 2010
Arkadiusz Olech

8. Vignetting

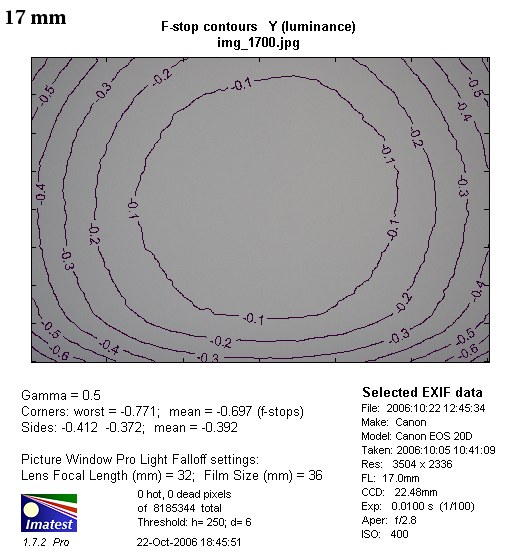

Designed to work on full frame, the Tamron 17-35 mm on a small APS-C sensor should deal with the vignetting pretty well. Indeed its level is not very high. At 17 mm and maximum relative aperture the light fall-off in the frame corners amounts to 22% (-0.70 EV) and on stopping down to f/4.0 it decreases to 12%. Applying f/5.6 makes the problem disappear almost completely (9%).

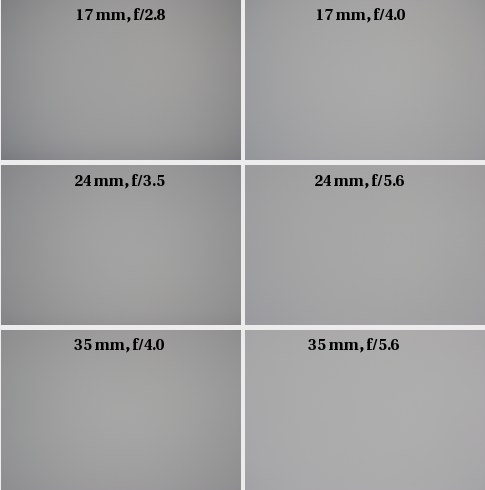

Tamron SP AF 17-35 mm f/2.8-4 Di LD Aspherical (IF) - Vignetting



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A better situation we saw in the middle of the focal range where, by f/3.5, we had the vignetting level of 17% (-0.54 EV) which, on stopping down to f/4.0 decreased to 11% and then by f/5.6 dropped even further to 11%.

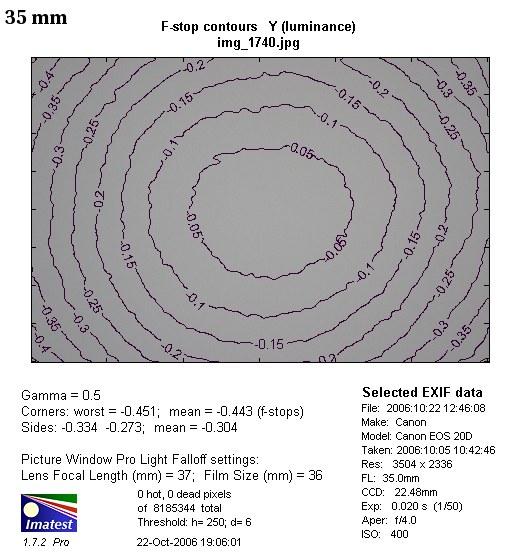

The fewest problems concerning the vignetting we will have working at 35 mm. Even at the maximum aperture the brightness loss in the corners reaches just 15% and, on stopping down to f/5.6, it becomes marginalized completely (5%).

Tamron SP AF 17-35 mm f/2.8-4 Di LD Aspherical (IF) - Vignetting

Tamron SP AF 17-35 mm f/2.8-4 Di LD Aspherical (IF) - Vignetting
