LensTip.com

Lens review

Nikon Nikkor AF-S 70-200 mm f/2.8G IF-ED VR

19 January 2011
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

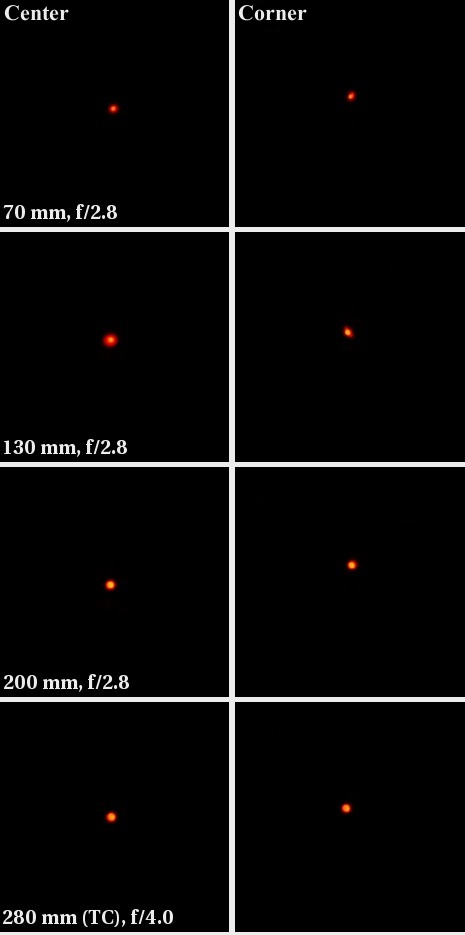

Generally the coma doesn’t make itself felt but if you look at the image of the diode in the frame corner at 130 mm you can notice a distinct deformation; it partially explains weaker achievements of this lens at that focal length and wide open. Fortunately at other focal lengths and after attaching the converter, the situation is much better.

Nikon Nikkor AF-S 70-200 mm f/2.8G IF-ED VR - Coma and astigmatism

If you use only the lens, the second of off-axis aberrations – the astigmatism - won’t be bothersome at all. Its average level remains low, amounting to 4.5%. You can also notice a tendency here – in the 70-130 mm range the astigmatism is practically zero but at 200 mm it increases sharply to over 7%. The worst situation we have after attaching the converter, though. The additional optical element means additional links and threads – all of them make the level of this aberration increase to as much as 18%. Nothing to boast of, to be sure…
