8. Vignetting

In one of first chapters we expressed our concern about the small diameter of the tested Nikkor’s 70-200 VR inner tube. The moment of truth has come.

Nikon Nikkor AF-S 70-200 mm f/2.8G IF-ED VR - Vignetting

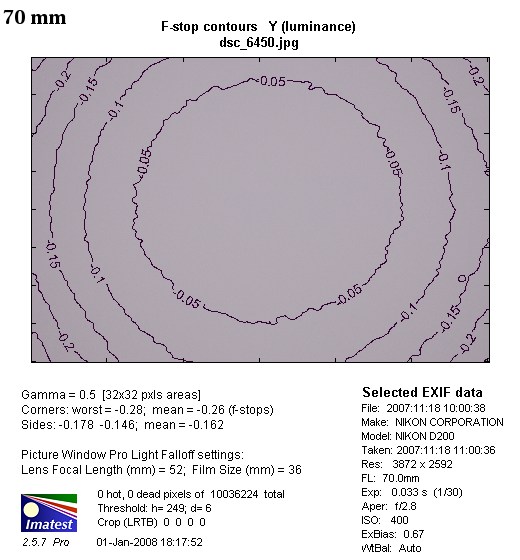

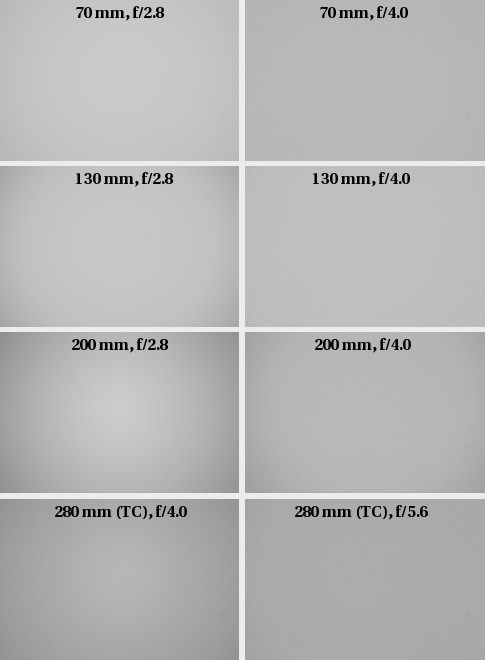

At 70 mm focal lengths there are no problems at all. Even at the maximum relative aperture the vignetting is imperceptible, amounting to just 9% (-0.26 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

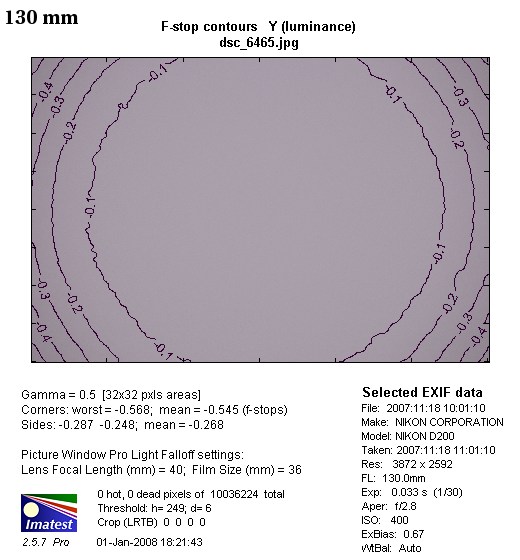

The situation deteriorates a bit at 130 mm where by f/2.8 the light fall-off in the frame corners amounts to 17% (-0.54 EV). This level is not high and additionally we must mention that on stopping down the lens to f/4.0 the problem disappears completely (4%).

Serious reservations you can start having about the 200 mm focal length. If on a small D200 sensor the brightness loss is 29% (-0.99 EV) what will happen on full frame? The fact that by f/4.0 the vignetting decreases to the level of 12% and by f/5.6 – to 4% can be considered a bit of consolation here.

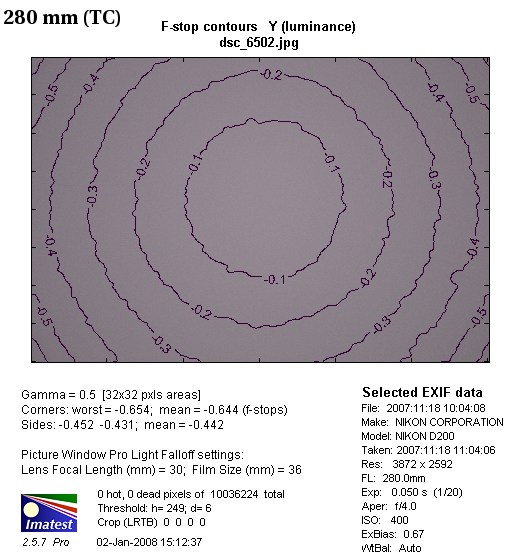

After attaching the converter the situation improves a bit. By f/4.0 the light fall-off in the frame corners amounts to 20% (-0.64 EV) and the problem disappears completely by f/5.6 where the vignetting is only 3%.

You can express some reservations about the 200 mm performance. The EF 70-200 f/2.8 IS and the Sigma 70-200 f/2.8 lenses on a bit smaller Canon’s 20D sensor showed an identical value of 23%. Also the Nikkor 80-200 mm fared better here with the worst result reaching 21%.
