LensTip.com

Lens review

Nikon Nikkor AF-S 35 mm f/1.4G

10 February 2011
Arkadiusz Olech

7. Coma and astigmatism

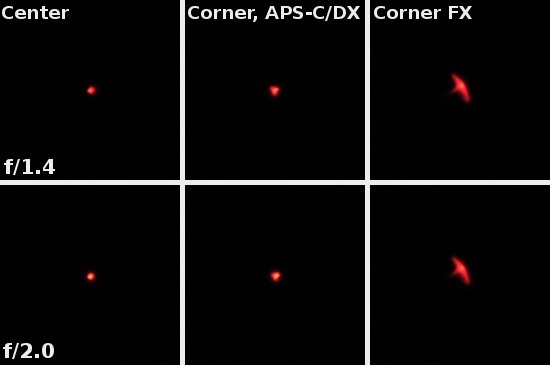

The coma is quite well corrected in the corners of the APS-C/DX sensor but its influence is still visible there. Much more problems we encounter in the corner of full frame. The coma level is high and it practically doesn’t change even on stopping down by one stop. It certainly explains the lens’s weak resolution results by f/1.4 and f/2.0.

Nikon Nikkor AF-S 35 mm f/1.4G - Coma and astigmatism

Another off-axis aberration, the astigmatism, also makes itself felt as it is quite distinct - the value of 13.8% doesn’t belong to the lowest ones. In this category the lens’s performance is far better described by a graph than by just dry percentage values – it shows resolution levels achieved separately for horizontal and vertical borders.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Nikon Nikkor AF-S 35 mm f/1.4G - Coma and astigmatism

It can be clearly noticed that the astigmatism is significant by f/1.4 and f/2.0 and it becomes low only from f/2.8 upwards.

You can ask yourself whether or not such a high astigmatism means that the lens arrived damaged to our editorial office. Such an outbreak of astigmatism, making it reach very high values, can be caused not only by wrong correction but also by wrong angle of elements’ inclination towards the optical axis. In this case, though, it would be difficult to consider it the real reason of problems. Firstly, the astigmatism is not at all record-high here. The Sigma 1.4/30, had a higher level of astigmatism and it seemed to be its “innate” flaw - we tested as many as five specimens of that lens getting the same results. Secondly we picked the lens up personally from the shop to minimize its contact with courier companies. Thirdly if the lens was really damaged it would be difficult for it to get to any record-breaking resolution values and the tested Nikkor reaches them after all.
