LensTip.com

Lens review

Sigma 18-250 mm f/3.5-6.3 DC OS HSM

12 April 2011
Arkadiusz Olech

4. Image resolution

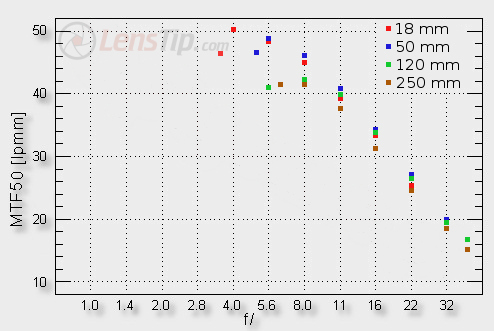

The resolution test of the Sigma ( understood as MTF50 values) was based on RAW files from the Canon 50D. It’s worth reminding here that the best “primes” can reach as high as 51-52 lpmm on that sensor and the decency level is set near 34-35 lpmm. The measurement errors ranged from 0.1 to 1.2 lpmm. The results for the frame centre are presented on the graph below.

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Image resolution

You can see immediately what I meant writing in the introduction about the good image quality of some contemporary megazooms. The lens doesn’t break any resolution records but nobody expects it after all. If you take into account the focal lengths range, available here, such results can be easily described as excellent (especially those in the 18-50 mm range). Firstly and foremostly the maximum relative aperture is fully useful in the whole focal range so you can get photos of good quality. It is important, especially at the longer end, where the lack of light makes it sometimes impossible to close down the aperture. We don’t have any reservations about the frame centre performance.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

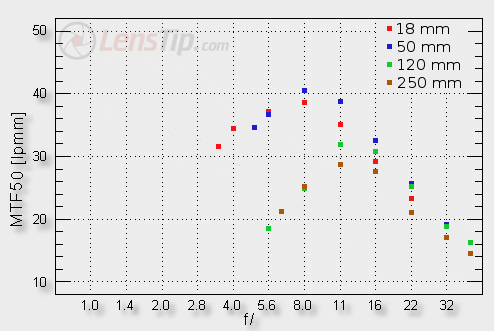

However, if we want to construct a lens with a wide focal range, sensible dimensions, able to provide sharp images in the frame centre and sell it for a price which could be acceptable to amateur photographers, some weaknesses are unavoidable - there’s no getting away from it. Looking at the frame edge performance we see at once where these weaknesses are situated in the case of the Sigma 18-250 mm OS.

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Image resolution

In the 18-50 mm range once again we shouldn’t complain at all. To tell you the truth the combination of the maximum relative aperture and the shortest focal length gives a result just a tad below the decency level but really only a little bit. On slight stopping down the decency level is exceeded and further on the results only improve.

The most serious crisis can be observed at longer focal lengths. At 120 mm and by f/5.6 the Sigma doesn’t reach even 20 lpmm. Then it improves but only with great effort, climbing slowly upwards to get near the area of usefulness only by f/11. At the maximum focal length and maximum relative aperture we see the value a bit above 20 lpmm for a change but in the case of 250 mm the frame edge will never be fully sharp; even after a significant stopping down we will never get a higher MTF value than 30 lpmm.

Frame edges at longer focal lengths are a visible problem of the Sigma - they are the price we have to pay for such a wide range closed in such a casing.

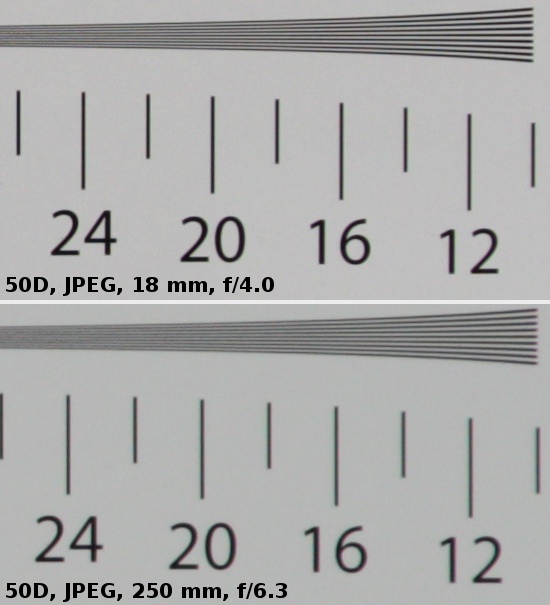

Below we present some of our test chart crops taken near the frame centre of JPEG files which were saved along RAW files, described earlier.

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Image resolution
