LensTip.com

Lens review

Sigma 18-250 mm f/3.5-6.3 DC OS HSM

12 April 2011
Arkadiusz Olech

9. Ghosting, flares and transmission

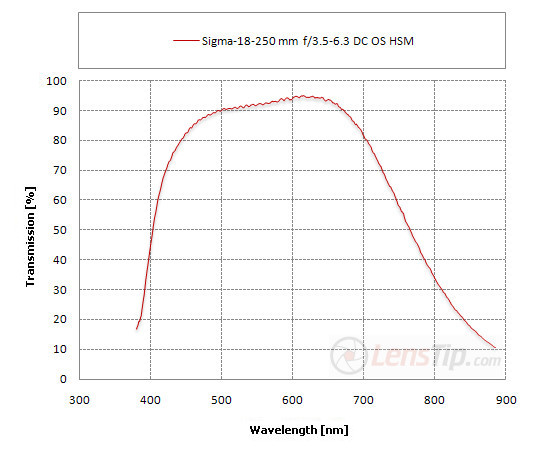

The Sigma 18–250 mm OS had an opportunity to be tested on a spectrophotometer so we can present its transmission graph.

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission

As you can notice, the most of light is transmitted for red colour – the optical system lets 94- 95% of it in. The colour rendering is not completely natural, though, because the transmission decreases when we move to shorter wavelengths. For green-yellow light the transmission amounts to just a tad above 90% and for blue light it decreases to near 85%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

To assess the quality of the coatings, used in the Sigma, you must take into account the number of air-to-glass surfaces which had to be coated. Here we have as many as 28 of them. It is a huge amount so if you want to get a transmission on the level of 95% you can’t lose more than 0.2% of light on one such surface. It means the lens should be equipped with coatings of the highest quality. The efficiency of the coatings is a bit worse for blue light but even there on one surface we lose about 0.6% of light – such a result is still quite decent.

We usually praise Sigma lenses for work against bright light but this time there will be no praise – the tested lens fares badly in this category. You can understand why looking at the photos below.

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission

Sigma 18-250 mm f/3.5-6.3 DC OS HSM - Ghosting, flares and transmission
