4. Image resolution

The resolution test of the Canon EF-S 18-200 MM F/3.5-5.6 was based on RAW files from the Canon EOS 50D reflex camera. In the case of that body the decency level is situated near 34-35 lpmm and the best fixed-focal lenses reach 51-53 lpmm. Let’s check how the Canon’s results in the frame centre compare to that.

Canon EF-S 18-200 mm f/3.5-5.6 IS - Image resolution

On the one hand you can complain a bit here – after all at no combination of focal length and aperture the lens doesn’t even approach the value of 50 lpmm. The Sigma 18-250 mm OS, tested not so long ago also on the Canon 50D, didn’t have such a problem at shorter focal lengths and its focal range is even wider. On the other hand the Canon’s performance is very even. Near the maximum relative aperture at all focal lengths it reaches the level of 40 lpmm or higher. As a result it provides images of good or even very good quality after a slight stopping down. What’s important, the longest focal length doesn’t lag behind others and the lens performs very nicely here, giving fully sharp pictures at such apertures which are still not limited by diffraction.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

While in the frame centre we didn’t have to make a great effort to find some advantages of the tested lens, the edge of the APS-C sensor is far more problematic.

Canon EF-S 18-200 mm f/3.5-5.6 IS - Image resolution

Here, for a change, at the maximum relative aperture and all focal lengths, the images are not very useful. What’s more, even after closing the aperture by about 1 EV we can’t be sure of full usefulness of images. The best situation is at 18 mm where, starting from f/4.5, we can talk about a decent quality of images. The worst performance is witnessed at 100 and 200 mm where only on stopping down to f/11 we can come near the area close to 34-35 lpmm. The crisis, observed at longer focal lengths, although serious, is still less acute than in the case of the Sigma 18-250 mm OS, which, at the maximum relative aperture, reached results on the level of only 20 lpmm.

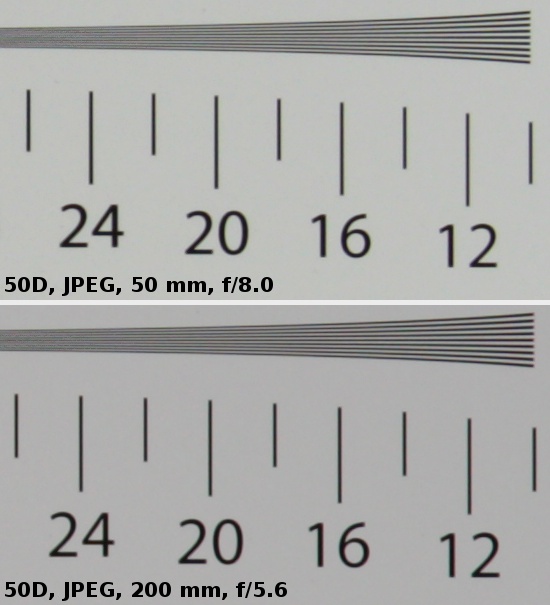

The crops below were taken from the frame centre of our resolution chart photos. We used JPEG files here, which we saved along RAW files - the source of data presented on the graphs above.

Canon EF-S 18-200 mm f/3.5-5.6 IS - Image resolution
