Lens review

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM

25 January 2012
Arkadiusz Olech

8. Vignetting

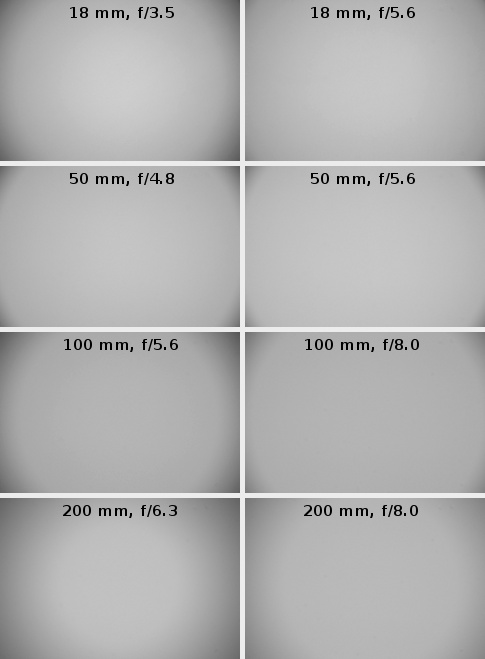

As I was able to believe that smaller dimensions of the lens wouldn’t make its resolution, coma, astigmatism or chromatic aberration results worse I had great difficulties in believing that there would be no serious vignetting problems, connected with that. My intuition didn’t let me down and thumbnails, shown below, can be the proof of it.

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Vignetting

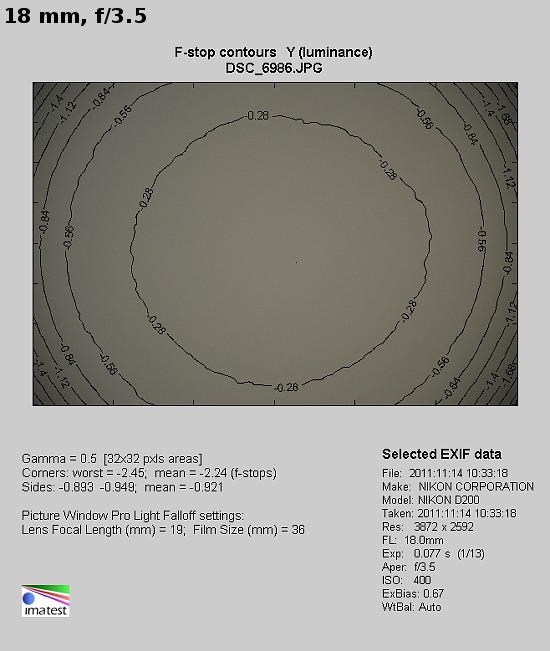

At the shortest focal length and by f/3.5 the brightness loss in the frame corners amounts to as much as 54% (-2.24 EV) – so is huge. On stopping down the aperture the situation still remains rather mediocre. By f/4.0 the vignetting is 48% (-1.87 EV) and by f/5.6 it reaches still a significant value of 33% (-1.18 EV). By f/8.0 the light fall-off gets to 27% (-0.91 EV) and on further stopping down you can’t see any noticeable decrease of this aberration.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

At 30 mm focal length the maximum relative aperture is f/4.0 and the vignetting amounts to 43% (-1.64 EV). On stopping down the aperture to f/5.6 the brightness loss in the frame corners reaches 27% (-0.93 EV) and by f/8.0 it gets to 20% (-0.66 EV). By f/11 and f/16 apertures the vignetting keeps the same level – that of 16-17%.

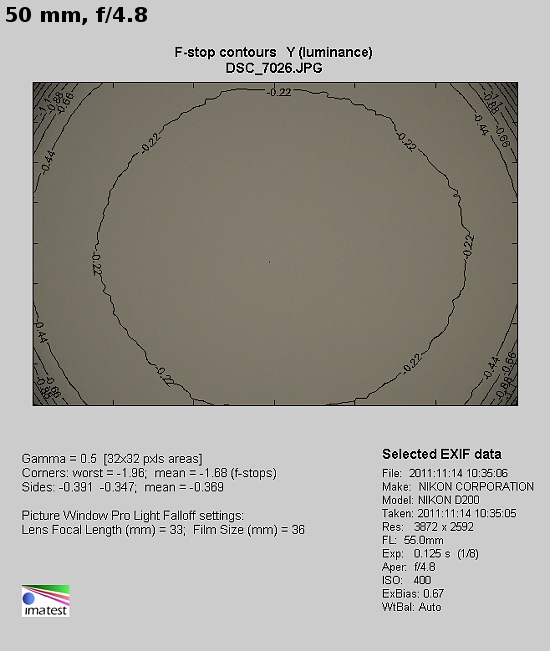

A very similar situation can be seen at 50 mm focal length. At the maximum relative aperture the light fall-off in the corners of the frame is 44% (-1.68 EV) and by f/5.6 it reaches 36% (-1.28 EV). In the case of f/8.0 and f/11 apertures the vignetting amounts to 23% and 15% respectively.

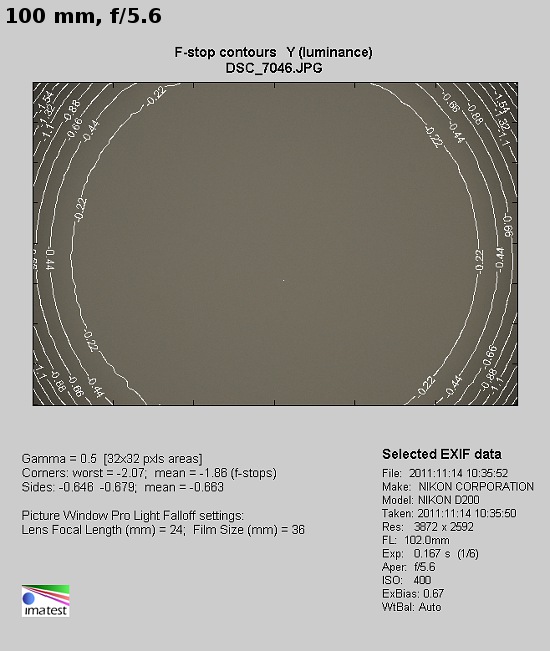

In the case of the 100 mm focal length and the maximum relative aperture the level of vignetting could be determined as 47% |(-1.86 EV). Applying the f/8.0 aperture allows us to decrease that aberration to the value of 31% (-1.07 EV) and by f/11 it amounts to 20% (-0.64 EV). The vignetting becomes imperceptible only by f/16, where it gets to the level of 10% (-0.32 EV).

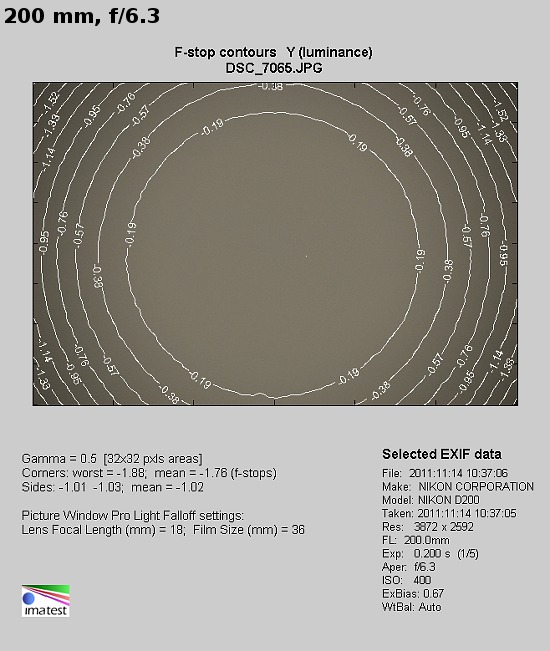

The combination of the maximum focal length and the maximum relative aperture is not free of huge vignetting level - it reaches as high as 46% (-1.76 EV) there. By f/8.0 this aberration gets to 31% (-1.07 EV and by f/11 it is 18% (-0.56 EV). The problem disappears only by f/16 where the vignetting is just 9% (-0.26 EV).

To sum up: in this category small dimensions of the tested lens made themselves felt very keenly. The vignetting remains huge practically at every focal length; often even after stopping down you have to tackle its noticeable influence.

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Vignetting

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Vignetting

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Vignetting

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Vignetting
