LensTip.com

Lens review

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM

25 January 2012
Arkadiusz Olech

6. Distortion

As you see in this chart, published below, in the new model Sigma focused on minimizing barrel distortion at the widest angle of view. Indeed they succeeded – the result is much better than that of the rival lenses. It is worth noticing, though, that they had to sacrifice the performance at bigger focal lengths– there the new Sigma performs the worst in this category. The level of pincushion distortion near 50 mm is especially painful – it reaches almost 2.5%.

Out of chronicler’s duty we can also give the distortion values at those focal lengths which weren’t included in the chart below. At 30 mm we get pincushion of 1.07%, at 85mm the distortions are also of pincushion kind, reaching 2.23% and at 140 mm they decrease to a value of 1.95%.


Sigma
18–200 II OS
Canon
18–200 IS
Nikkor
18–200 VR
Sigma
18–200 OS
Tamron
18–200
18 mm
−3.96%
−5.06%
−5.40%
−4.40%
−5.14%
50 mm
2.44%
1.82%
1.59%
1.20%
1.78%
100 mm
2.09%
1.41%
1.46%
1.00%
1.38%
200 mm
1.78%
1.32%
1.21%
1.00%
1.17%


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

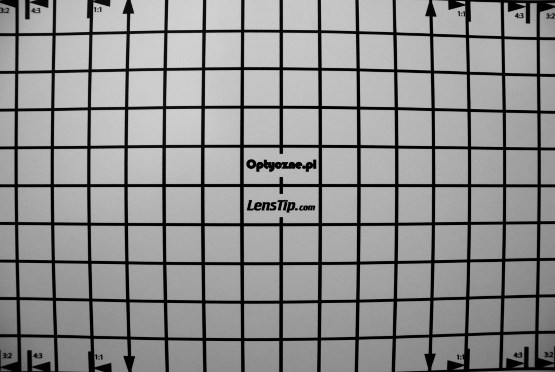

Nikon D200, 18 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

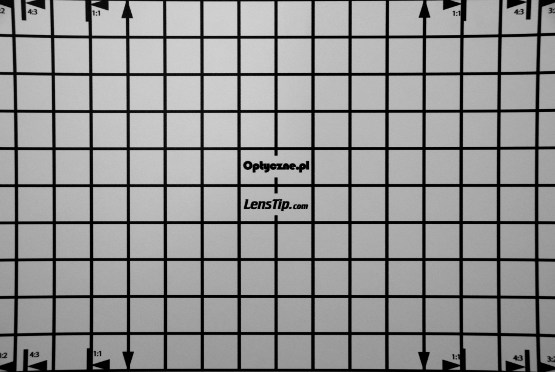

Nikon D200, 30 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

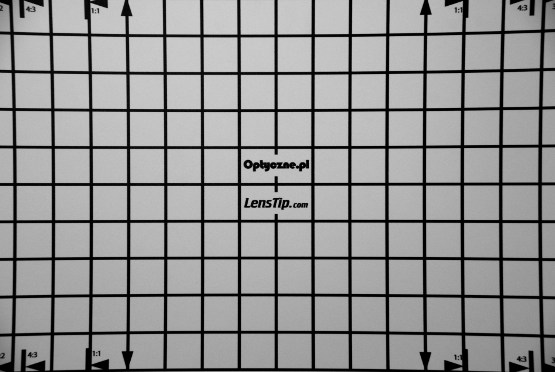

Nikon D200, 55 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

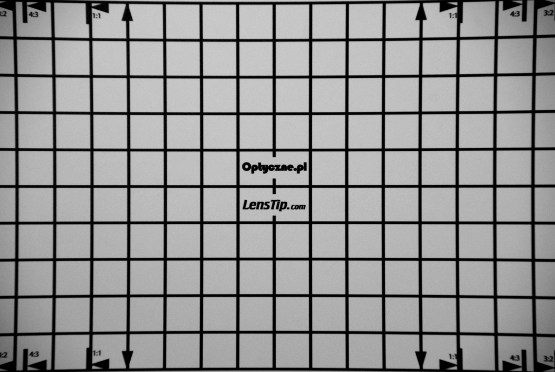

Nikon D200, 100 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion

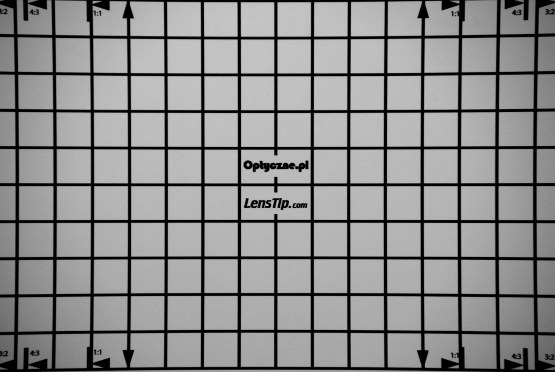

Nikon D200, 200 mm
Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Distortion
