Lens review

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM

25 January 2012
Arkadiusz Olech

4. Image resolution

The image resolution test (in respect of MTF 50 function values) of the Sigma 18-200 mm OS II was based on RAW files from the Nikon D200 camera. It the case of its 10-megapixel matrix the best fixed-focal lenses have results reaching 47-48 lpmm and the decency level is situated near 31-32 lpmm.

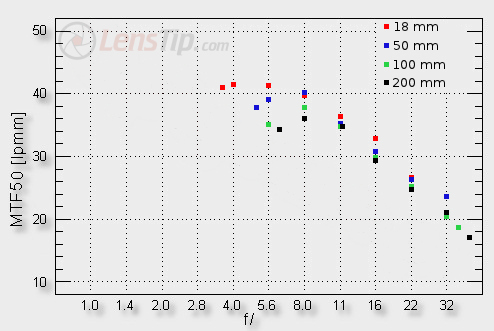

Let’s check first how the lens fares in the frame centre. A graph, shown below, will help you to asses it properly.

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Image resolution

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

As you see, even at the maximum relative aperture and at all focal lengths the lens gets good results, situated in a safe distance from the decency level. It is a performance very similar to that of its predecessor. You must remember, though, that the older version was tested on the Canon 20D sensor, which provided MTFs by 2-3 lpmm lower. In the case of the newer model the results, reached on the D200, are not significantly better which might suggest a slightly worse performance. The fact is that the differences are slight – not exceeding the margin of error values, so overall we can assume that the lens fares similarly well in the frame centre as its older version and we don’t have any reservations. Quite the opposite is true – such a result can be only praised.

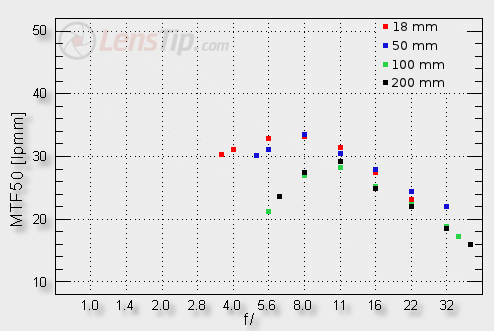

Let’s see how the lens performs on the edge of the frame.

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Image resolution

The result is surprising but in the positive sense. Usually when a producer decreases dimensions of their equipment the image quality on the edge decreases as well. Here the situation is different. The previous Sigma 18-200 mm OS at the maximum relative aperture had weak results throughout the whole focal range and had to be closed down by 1-2 EV to improve. The new model doesn’t have any problems with delivering a decent image at the maximum relative aperture and the shortest focal lengths. The biggest crisis, as in the case of its predecessor, can be observed near 100 mm but this time the said crisis is somehow less bothersome. The performance at 200 mm changed for the worse, though – in the new model it is a tad weaker than that of the older lens.

To sum up: for such a range of focal lengths as offered here, the lens presents itself very well. Compared to its predecessor the physical dimensions decreased but the results, on average, remained more or less the same. In the new model they even got slightly more even. The middle of the frame is a bit worse than in the previous model but still very good; the performance on the edge of the frame improved significantly for a change.

Below we present some crops of our test chart, taken from JPEG files.

Sigma 18-200 mm f/3.5-6.3 II DC OS HSM - Image resolution
