LensTip.com

Lens review

Sony DT 16-50 mm f/2.8 SSM

25 April 2012
Arkadiusz Olech

8. Vignetting

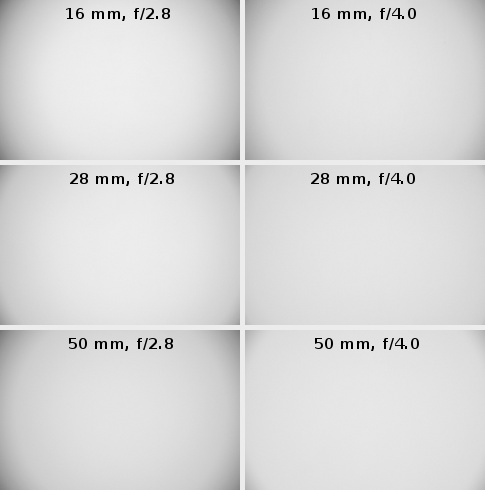

The appearance of miniatures, shown below suggest unambiguously that we won’t speak in superlatives about the vignetting correction.

Sony DT 16-50 mm f/2.8 SSM - Vignetting

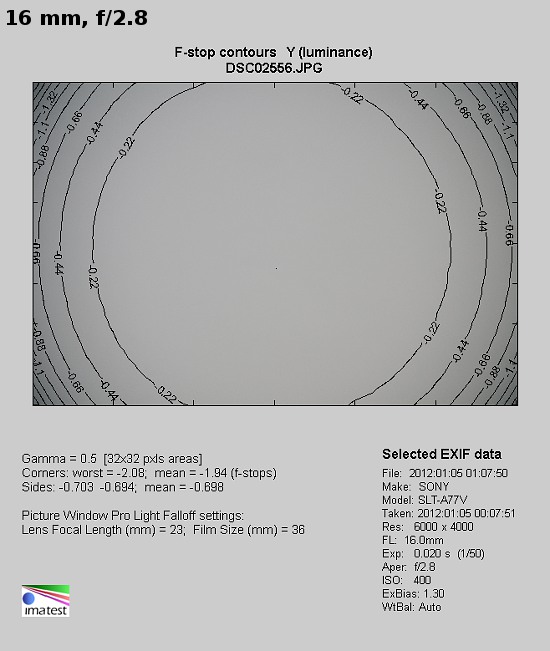

Our measurements confirm it. At the maximum relative aperture and at the shortest focal length the lens loses as much as 49% of light (-1.94 EV). Stopping down can help with fighting this aberration but to a not very satisfying degree. By f/4.0 the vignetting reaches a still significant level of 32% (-1.11 EV) and is still noticeable by f/5.6, where it reaches the value of 26% (-0.87 EV). By f/8.0, f/11 and f/16 the vignetting stops at the level of 19-21% and it doesn’t want to decrease any further.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

It’s worth reminding here that the results above are practically the same as those of the Tokina and the Pentax, which, at the maximum relative aperture and the widest angle, reached the values of 46-49%.

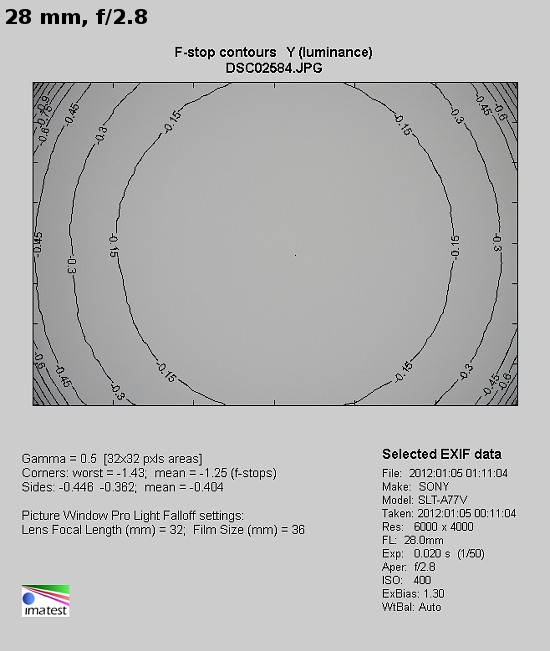

A noticeable improvement can be seen in the middle of the focal lengths range where, at the maximum relative aperture, the vignetting gets to 35% (-1.25 EV) and becomes low at f/4.0 where it decreases to the value of 18% (-0.58 EV). The problem disappears completely by f/5.6.

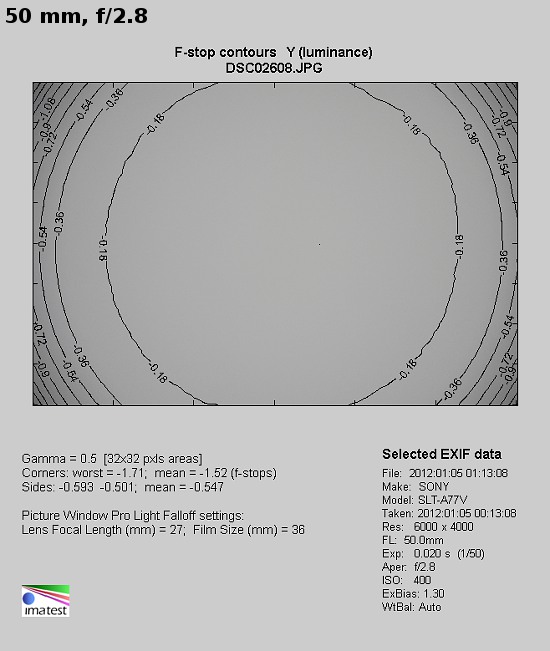

The worsening of the properties in this category you can witness at 50 mm. It its case by f/2.8 the light fall-off in the frame corners amounts to 41% (-1.52 EV) – significantly higher than in the case of the Tokina and the Pentax, which vignetting never exceeded 30%. The vignetting is still noticeable by f/4.0, where it reaches 21% (-0.69 EV) and it becomes not bothersome by f/5.6 and f/8.0 (13% and 7% respectively).

In this category the Sony fares worse than its competitors. As at the shortest focal length all lenses are equally bad but with the increase of the focal length the rivals improve their results more distinctly than the Sony 16-50 mm.


Sony DT 16-50 mm f/2.8 SSM - Vignetting

Sony DT 16-50 mm f/2.8 SSM - Vignetting

Sony DT 16-50 mm f/2.8 SSM - Vignetting
