Canon EF 40 mm f/2.8 STM

7 August 2012
Arkadiusz Olech

6. Distortion



Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The distortion level of the tested lens is a nice surprise as well. No matter whether you use a smaller or a bigger sensor, you won’t complain about geometric deformations. In the first case we measured slight barrel distortion of -0.41% and in the second case its value was -0.72%.

Other producers of mirrorless systems, which „pancakes” manage distortion rather badly, should take a leaf out of the Canon’s book. It’s enough to remind you here the result of the Panasonic 1.7/20 (with the same angle of view as the tested Canon) which was as high as -3.66%. It is clear that you can correct the distortion well using the optics and the software of a camera doesn’t have to be burdened by that task at all.

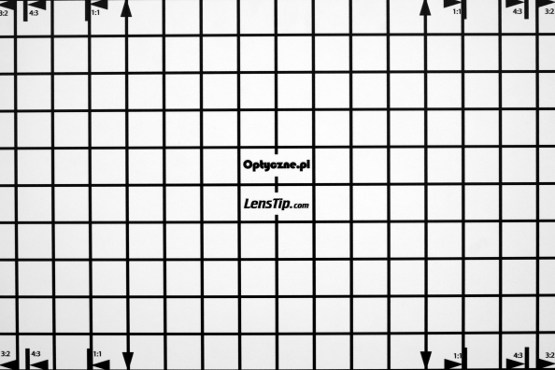

50D, 40 mm
Canon EF 40 mm f/2.8 STM - Distortion

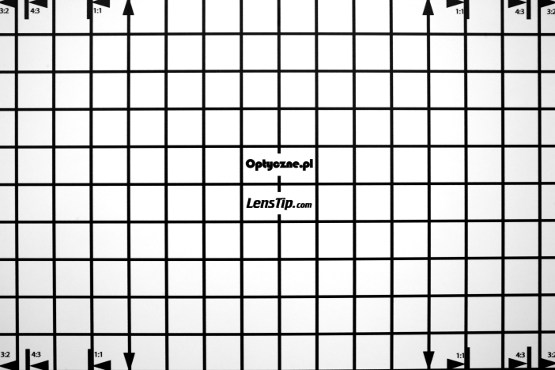

1Ds MkIII, 40 mm
Canon EF 40 mm f/2.8 STM - Distortion
