Lens review

Canon EF 40 mm f/2.8 STM

7 August 2012
Arkadiusz Olech

8. Vignetting

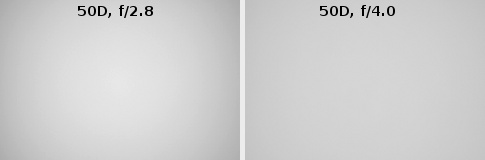

„Pancakes” usually perform weakly in this category because of their dimensions. Let’s check how the Canon EF 40 mm f/2.8 STM fares here. First its performance on the APS-C sensor.

Canon EF 40 mm f/2.8 STM - Vignetting


As you see, there is still nothing worrisome here. At the maximum relative aperture the vignetting reaches a moderate level of 24% (-0.80 EV) and by f/4.0 it decreases to an imperceptible value of 9% (-0.27 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

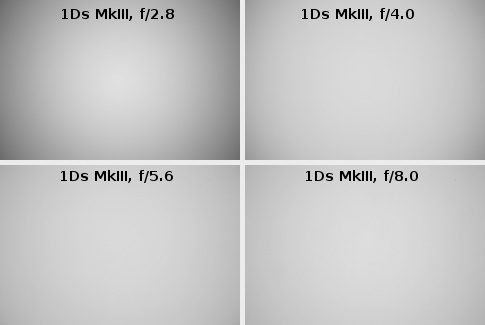

More problems you can encounter on full frame and thumbnails, presented below, show it very well.

Canon EF 40 mm f/2.8 STM - Vignetting

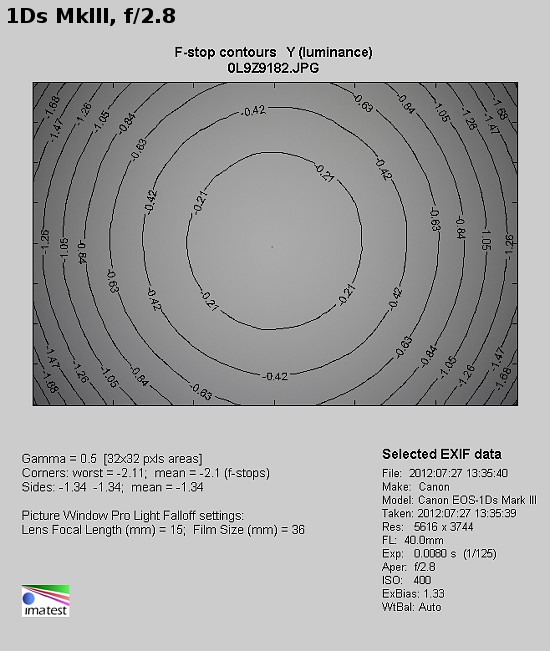

The maximum relative aperture gives us a lot of reasons to complain – in its case you should take into account the fact that brightness loss in the frame corner might reach as much as 52% (-2.1 EV). On stopping down the aperture to f/4.0 the level of this aberration decreases to 30% (-1.04 EV). Further stopping down is not as effective, though. By f/5.6 the vignetting is 21% (-0.67 EV) and by f/8.0 it gets to 19% (-0.60 EV). Implementing higher aperture values doesn’t decrease the vignetting any further.

Canon EF 40 mm f/2.8 STM - Vignetting
