6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

When it comes to the distortion correction the Fujifilm X-Pro system decided to follow the steps of the Micro 4/3 which, in the case of wide-angle lenses, gives up the optical distortion correction completely, leaving that task to the camera’s software. Still such an approach demands a specific treatment of focal length and their image fields. Optics which distortion was not corrected has to provide a wider field of view than its nominal value, resulting from the focal length value and the size of the detector. Such a margin is necessary to correct the distortion and crop the image to required dimensions.

Such tactics is implemented in the case of the Fujinon XF 18 mm f/2R exactly. On RAW files it shows huge barrel distortion of –5.28%. As you see the optics doesn’t deal with correcting that aberration at all. Still it worth mentioning that in the case of RAW files we dispose of a field of view as wide as 80.5 ±0.1 degrees. It means the same field as in a rectilinear lens with a focal length of less than 17 mm. After the distortion correction its value on JPEG files decreases to –0.58% and the field of view gets narrower to 76.1 ±0.1  degrees and it is a good equivalent of the nominal focal length of 18 mm.

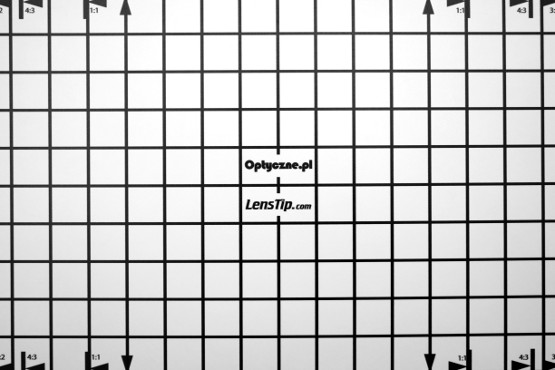

JPEG
Fujifilm Fujinon XF 18 mm f/2 R - Distortion

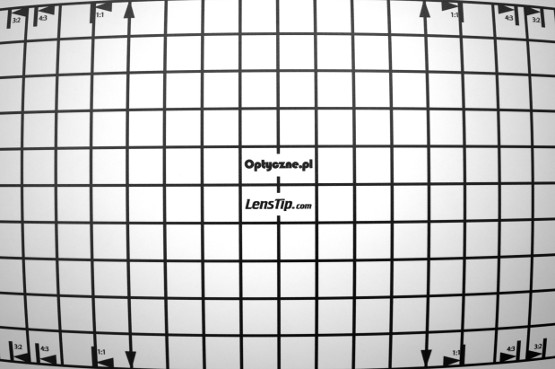

RAW
Fujifilm Fujinon XF 18 mm f/2 R - Distortion
