LensTip.com

Lens review

Olympus M.Zuiko Digital 17 mm f/1.8

20 November 2012
Arkadiusz Olech

8. Vignetting

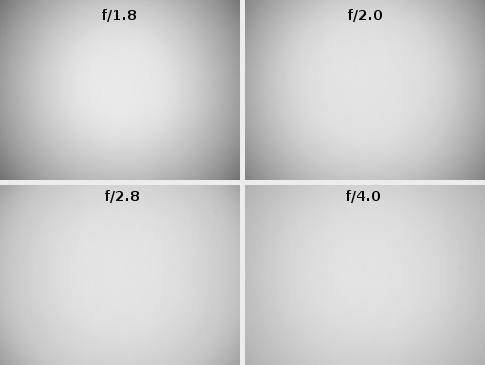

One glance at thumbnails below and you know that there are vignetting problems, even quite distinct ones.

Olympus M.Zuiko Digital 17 mm f/1.8 - Vignetting

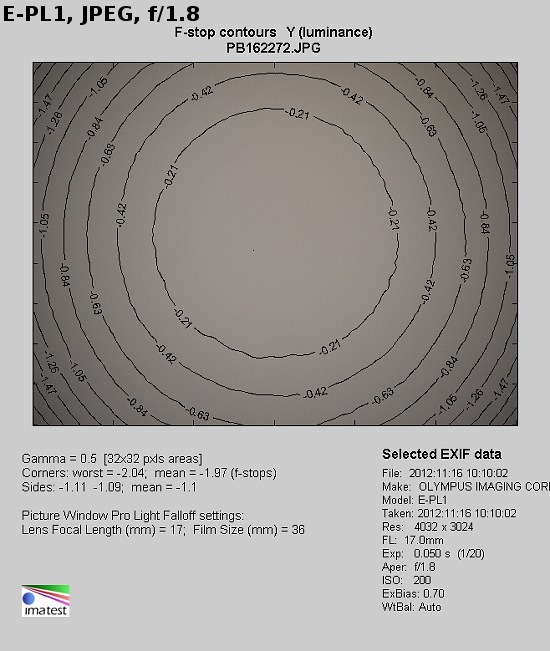

At the maximum relative aperture the brightness loss in the frame corners reaches 49% (-1.97 EV) and it is really huge. Such a result is even worse if you remember what detector we are dealing with here. On a small Micro 4/3 sensor the vignetting is easy to correct, after all. It is not the only piece of bad news. There is no aperture which would be completely vignetting-free. By f/2.0 that aberration reaches 41% (-1.54 EV) and by f/2.8 it decreases to 29% (-0.97 EV). A noticeable drop in this aberration level can be seen when you stop down to f/4.0, with the vignetting amounting to 22% (-0.72 EV). On further stopping down there is no measurable decrease of vignetting.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The result of the Panasonic 1.7/20 might serve as a short commentary here. A bit faster but also a much smaller device, it had the vignetting of 44% at the maximum relative aperture, lower than the Olympus, tested here…

Olympus M.Zuiko Digital 17 mm f/1.8 - Vignetting
