Canon EF 24-70 mm f/2.8L II USM

29 November 2012
Arkadiusz Olech

6. Distortion

As long as you work with the smaller APS-C sensor the distortion shouldn’t be a big problem. Even at the widest angle of view its value, being officially -1.99%, doesn’t exceed -2%, so it could be called moderate. Barrel distortions decrease swiftly and at 35 mm focal length they are already close to imperceptible values (officially on a level of -0.33%). At a slightly longer focal length they become zero and turn pincushion. At 45 mm you get already 0.21% which increases to 0.46% at 70 mm.

A bit more problems you can encounter on full frame. At 24 mm the distortion reaches -3.85%. It is not a high value – it’s enough to mention that the Nikkor at 24 mm had the distortion on a level of -3.94% and for the Sigma we recorded even a worse result of -4.59%. Still it should be noticed that the Canon made the situation easier introducing moustache distortion. In full frame photos you can see a slight but definite bend to the other side.

At 28 mm focal length moustache distortions disappear and then we deal with just classic barrel, amounting to -2.30%. That type of distortion can be seen also at 35 mm focal length where its value we assessed as -0.67%. At 50 mm there is already pincushion distortion of 0.49% which increases to 0.95% when you pass to the maximum focal length.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

50D, 24 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion
50D, 50 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion

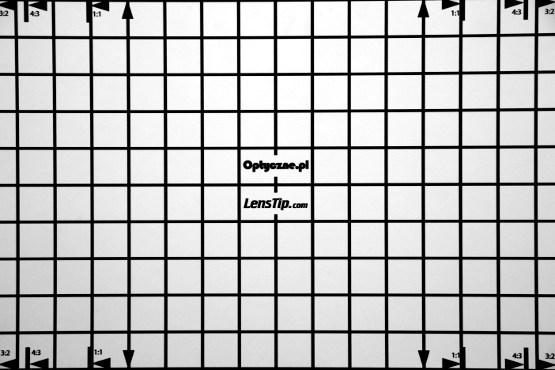

50D, 70 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion

1Ds MkIII, 24 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion
1Ds MkIII, 50 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion

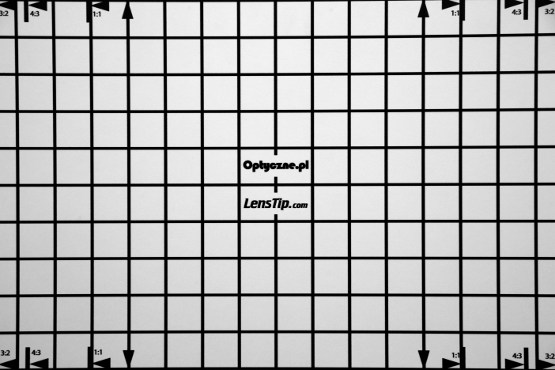

1Ds MkIII, 70 mm
Canon EF 24-70 mm f/2.8L II USM - Distortion
