Lens review

Carl Zeiss Makro-Planar T* 50 mm f/2 ZF/ZK/ZE

28 January 2013
Arkadiusz Olech

8. Vignetting

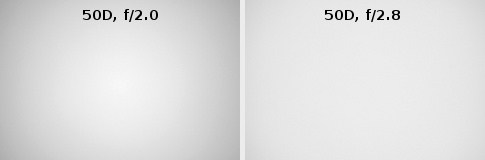

The vignetting results can be compared to those of the distortion and other off-axis aberrations, which show a tendency to increase as you move further from the frame centre. The bigger the detector the more problems you encounter. Let’s start describing the vignetting performance from the smallest sensor of the Canon 50D. The appropriate photos are presented below.

Carl Zeiss Makro-Planar T* 50 mm f/2 ZF/ZK/ZE - Vignetting


In this case the brightness loss in the frame corners you can notice only at the maximum relative aperture, where it is 28% (-0.97 EV). Already by f/2.8 the vignetting becomes negligible, reaching just 10% (-0.31 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

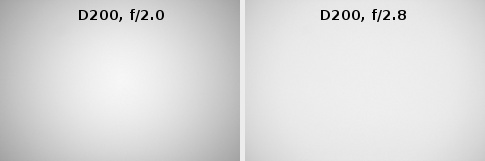

A bit higher values we got on the sensor of the Nikon D200 and the thumbnails below show the real life performance.

Carl Zeiss Makro-Planar T* 50 mm f/2 ZF/ZK/ZE - Vignetting


At the maximum relative aperture the vignetting is 33% (-1.16 EV) and it decreases to 15% (-0.48 EV) by f/2.8. By f/4.0 that aberration becomes already imperceptible, reaching just 5% (-0.16 EV).

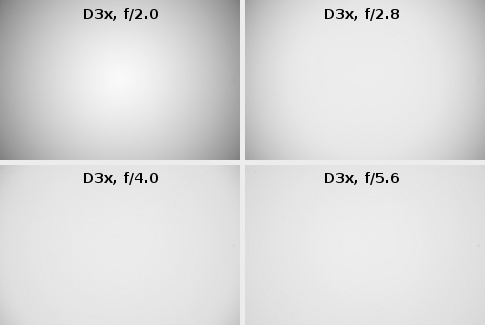

Of course the biggest problems you have on full frame and those frames show it perfectly well.

Carl Zeiss Makro-Planar T* 50 mm f/2 ZF/ZK/ZE - Vignetting

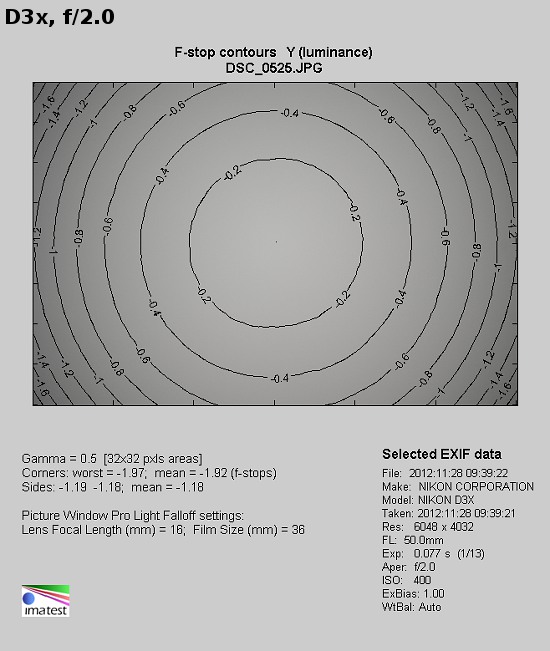

Using the maximum relative aperture you must resign yourself to the loss of 49% of light in the frame corners (-1.92 EV). Applying f/2.8 allows you decrease that loss to 31% (-1.08 EV). The vignetting becomes moderate by f/4.0, where it is 16 % (-0.51 EV), and it disappears almost completely by f/5.6 where it reaches just 9% (-0.28 EV).

Carl Zeiss Makro-Planar T* 50 mm f/2 ZF/ZK/ZE - Vignetting
