Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S

18 March 2013
Arkadiusz Olech

6. Distortion

As long as you work on JPEG files or develop RAW files using the company software the distortion won’t bother you. At 12 mm focal length there is low barrel distortion of –1.39%. At longer focal lengths the problems are even less pronounced because at 23 mm you get –0.17% distortion and at 35 mm (already after changing into the pincushion variety) the value of that aberration gets to 0.80%.

As our review concerns the lens itself, it’s always interesting to check how the optics manages that aberration on its own. We can do it by developing RAW files with the dcraw program which doesn’t correct the geometrics faults of a lens. In that case at the wide angle of view you must take into account a huge barrel distortion which reaches −6.54%. It’s worth comparing it to a value the Olympus 12-50 mm got at the same focal length; it was −6.87%, so slightly higher than that of the tested Panasonic. With the increase of focal length the distortion decreases swiftly and, at 23 mm it reaches just −0.51%. At higher focal lengths there is a sign change and at 35 mm we deal with pincushion distortion of 0.89%.

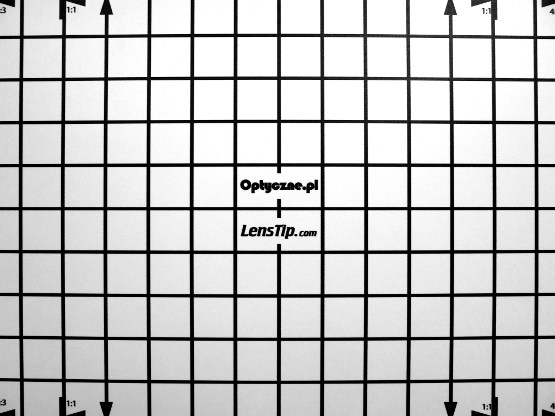

Olympus E-PL1, 12 mm, JPEG
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion

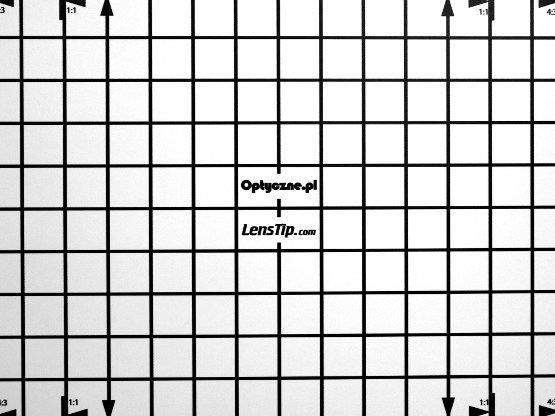

Olympus E-PL1, 23 mm, JPEG
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion

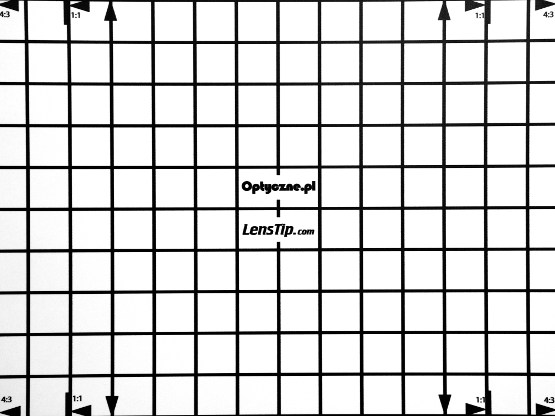

Olympus E-PL1, 35 mm, JPEG
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

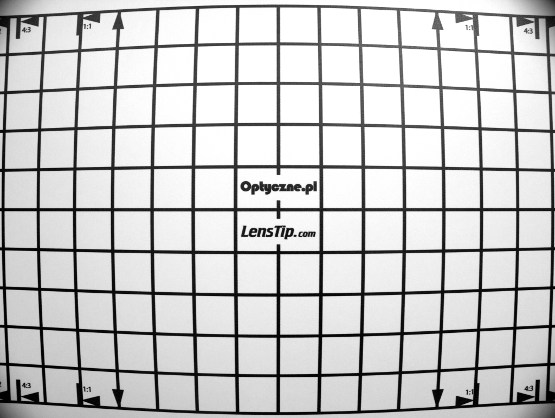

Olympus E-PL1, 12 mm, RAW
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion

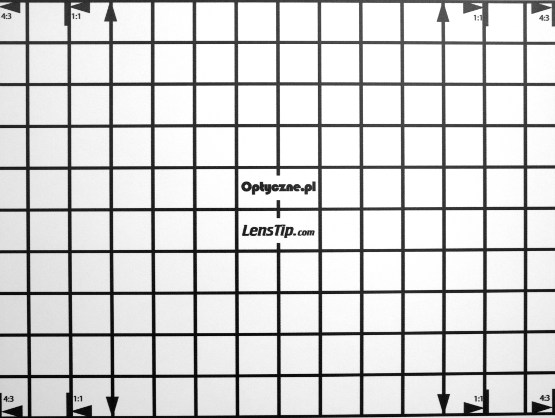

Olympus E-PL1, 23 mm, RAW
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion

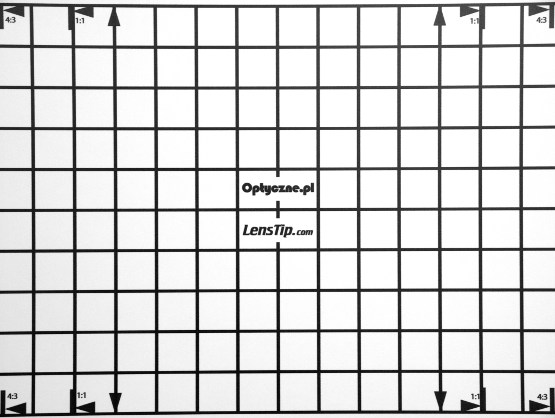

Olympus E-PL1, 35 mm, RAW
Panasonic G X VARIO 12-35 mm f/2.8 ASPH. P.O.I.S - Distortion
