LensTip.com

Lens review

Voigtlander Color Skopar 28 mm f/2.8 SL II

6 April 2013
Arkadiusz Olech

8. Vignetting

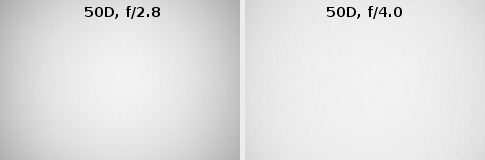

The chances that a „pancake” lens is going to show low vignetting on full frame are really scant. Despite that fact the lens’s performance on the smaller detector surprised us very nicely. The thumbnails showing the vignetting results on the sensor of the Canon 50D you can see below.

Voigtlander Color Skopar 28 mm f/2.8 SL II - Vignetting


At the maximum relative aperture the vignetting is noticeable but still can be described as moderate. The brightness loss in the corners amounts to 28% (-0.94 EV). By f/4.0 the problem disappears almost completely – in that case the vignetting gets to just 11% (-0.34 EV). Further stopping down helps just slightly because by f/5.6 the vignetting is 10% (-0.30 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

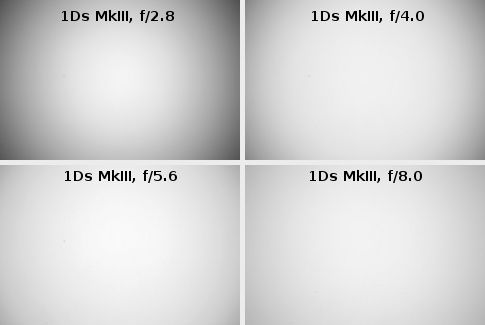

As we already mentioned, the full frame is a law unto itself and the thumbnails below show it well.

Voigtlander Color Skopar 28 mm f/2.8 SL II - Vignetting


In this case, at the maximum relative aperture, you must take into account the loss of 65% of light (-3.07). By f/4.0 the vignetting is still high, reaching 44% (-1.69 EV). You can call the level of this aberration moderate only by f/5.6 where the brightness loss in the corners is 30% (-1.03 EV). By f/8 and f/11 the vignetting gets to 25% (-0.84 EV). Further stopping down doesn’t have any influence over the value of this aberration.

On the one hand you can lament the fact that you have to lose as much as 3 EV in the corners – it is a serious loss of light. On the other hand, though, nobody sensible expects that a “pancake” lens can have low vignetting. It is also worth mentioning that the full- size Canon EF 28 mm f/2.8 IS USM fared only slightly better.

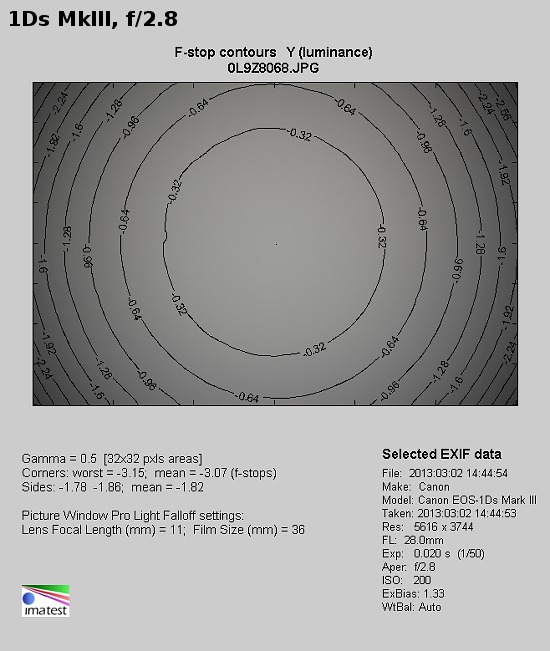

Voigtlander Color Skopar 28 mm f/2.8 SL II - Vignetting
