LensTip.com

Lens review

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS

6 September 2013
Arkadiusz Olech

4. Image resolution

The resolution test of the Fujinon 18-55 mm was based on RAW files from the Fujifilm X-E1. When it comes to the 16 Mpix X-Trans sensor the highest results so far have been reached by the Fujinon 1.4/35 which got near 65 lpmm. Other fixed focus lenses like the Fujinons 2/18 and 2.4/60 or the Zeiss Touit 2.8/12 had their maximum results about 62-63 lpmm. The decency level is set near 39-40 lpmm.

Let’s check how the tested Fujinon performs in the frame centre. The appropriate graphs at 18,30 and 55 mm are presented below.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


It can be said at once that you deal here with a zoom lens because the Fujinon 18-55 doesn’t get near the level presented by ‘primes’. The highest MTF values, those near 58-60 lpmm, are reached by f/8.0 and, at shorter focal lengths, by f/5.6. Those results are just slightly worse than the results of the ‘primes’ so such a level can be considered very good without any question.

The performance at the maximum relative aperture also proves you deal here with a high quality device – 42 lpmm is the weakest result so the resolution safely exceeds the decency level.

Still are there any reasons to gush over the Fujinon? Nor really. It is a solid instrument but certainly not outstanding. The results of such lenses as the Sigma A 17-70 mm f/2.8-4.0 DC Macro OS HSM prove that much. The Sigma, being more difficult to design and cheaper than the Fujinon, at the maximum relative aperture can reach similar results to those by f/8.0. The Fujinon’s maximum aperture values are rather closer to those you see at f/11.

The aforementioned Sigma 17-70 mm had to pay a price for the excellent performance in the frame centre in the form of weaker results on the edge of the frame at 17 mm. Do you have to deal with a similar compromise in the case of the Fujinon? Let’s glance at the graph below.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Image resolution


Unfortunately the compromise can be clearly seen. Like in the case of the Sigma, the shortest focal length doesn’t provide high MTFs at any aperture, brushing the decency level by f/8 and f/11. At the longer focal end the situation is much better, with images of good but, unfortunately, only good quality. They cannot be called ‘very good’ – not by a long shot.

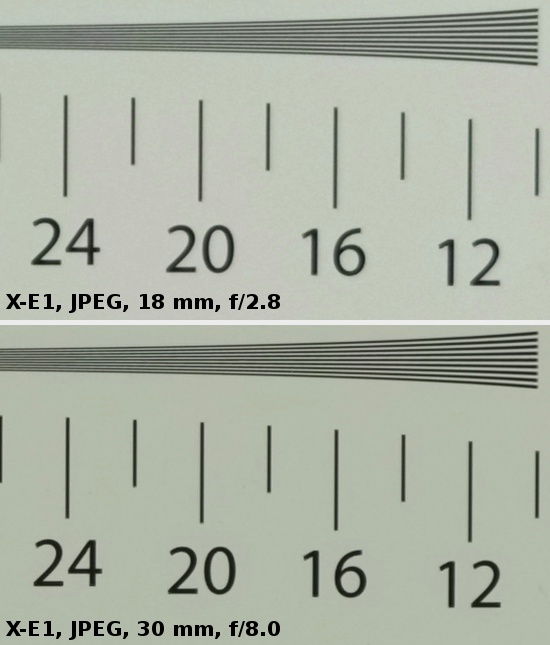

The crops below were taken from JPEG files saved along RAW files which we used for the analysis above.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Image resolution
