LensTip.com

Lens review

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS

6 September 2013
Arkadiusz Olech

5. Chromatic and spherical aberration


Chromatic aberration

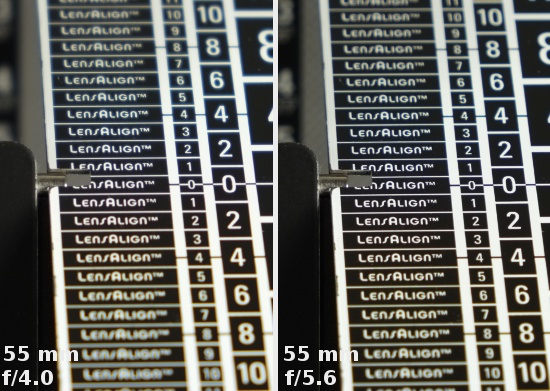

The correction of the longitudinal chromatic aberration is not a strong point of the Fujinon 18-55 mm. As you can notice in the photos posted below that aberration makes itself felt both at the maximum relative aperture and on stopping down by 1 EV, where its level doesn’t seem noticeably lower.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

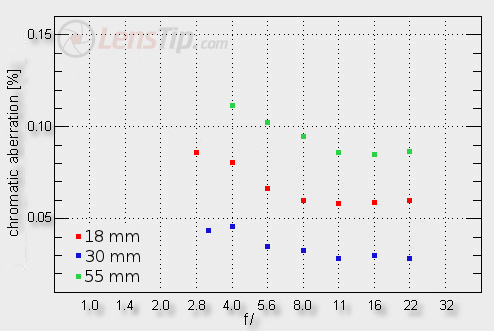

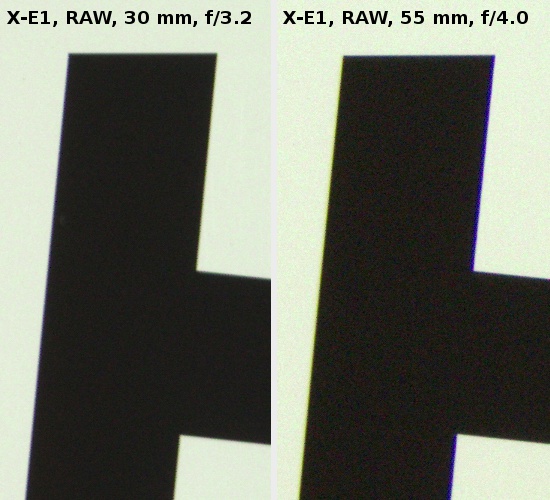

The lateral chromatic aberration results are a bit better. In the middle of the focal range you can’t notice it practically at all. It is not a problem at the shortest focal length either, where, even at its worst, it never reaches a medium level. The biggest chances to perceive that aberration exist for the combination of the maximum relative aperture and the maximum focal length - it reaches 0.11% there. Still it remains on a level we consider medium so in this category the lens can be only praised. The Sigma 17-70 mm, mentioned before, at the shortest focal length could exceed 0.14% so fared definitely worse.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Chromatic and spherical aberration

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Chromatic and spherical aberration


Spherical aberration

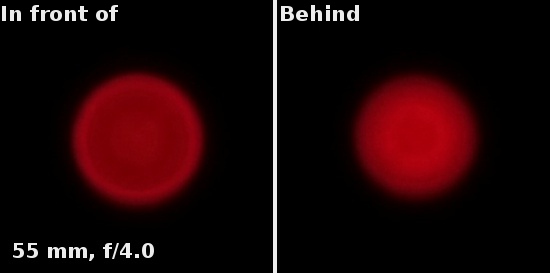

First photos from this chapter show that the lens doesn’t have any serious problem with correcting the spherical aberration – there is no ‘focus shift’. Still that aberration isn’t corrected in a perfect way either, and images of defocused light points are the proof. The circles you get in front of and behind the focus differ greatly – one of them features a noticeably lighter rim on the edge and the second one becomes darker as you progress towards its edges.

Fujifilm Fujinon XF 18-55 mm f/2.8-4 OIS - Chromatic and spherical aberration
